Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespSB Acoustics SB29NRX75-6 6Ω
LF DriverMedia
Overview
LF DriverSB29 series
SB Acoustics
SB Acoustics SB29NRX75-6
SB Acoustics SB29NRX75-6 is a 10" 6 ohm LF driver rated at 200W RMS. The validated T/S data includes Fs 21Hz, Qts 0.35, Vas 102L, Xmax 22mm, sensitivity 86dB, plus 686cm³ Vd and 55 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £134.39.
Size
10"
Impedance
6Ω
RMS Power
200W
Sensitivity
86.0dB
88.0dBmanufacturer; using T/S-derived value (2.0dB delta).
EBP
55
Either alignment
Vd
686cm³

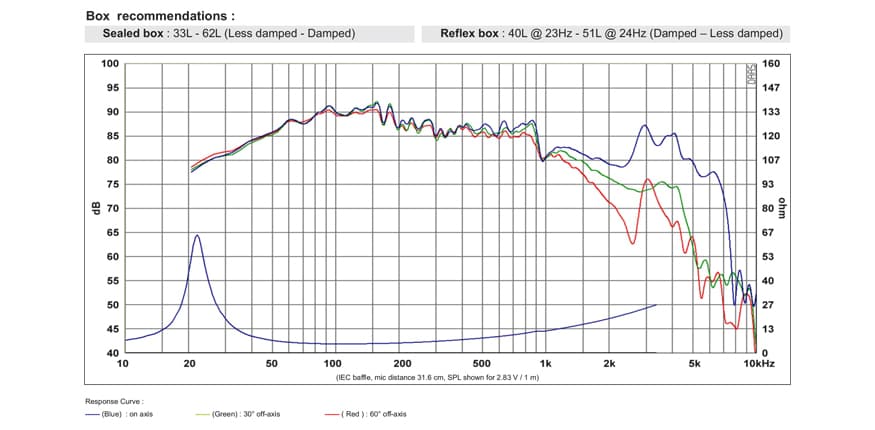

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
30 degrees240 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
30 degrees
Frequency response
240 plotted pointsMedium confidence1,400 selected pixels of 2,803
T/S Parameters
Valid
Fs21Hz
Qts0.35
Qes0.38
Qms5.7
Vas102.0L
Re4.2Ω
Le1.80mH
BL10.7Tm
Sd312cm²
Mms78g
Xmax22.0mm
SPL86dB
Power200W
Impedance6Ω
Voice Coil76mm
Flux Density0.90T
Pricing & availability
Price definitionsPrice movement
Other offers
3 vendorsleanaudio
Updated 11 Sept 2026· 6Ω
Source: inc VAT · 20%
£134.39
inc VAT
Back order
soundimports
Updated 11 Sept 2026· 6Ω
Source: inc VAT
£163.20
inc VAT
Out of stock
willyshifi
Updated 11 Sept 2026· 6Ω
Source: inc VAT · 20%
£180.95
inc VAT
Best current price
Updated 17 May 2026
leanbusiness
£134.39
Avg £157.67£23.28 below avg (-14.8%)
inc VAT
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight5.3kg
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
SB Acoustics
SB29NRX75-6
10"
Best current price
£134.39
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
7 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
48%
Similarity
53% cheaper£62.50
SB Acoustics
SB26SFCL38-4
10"
Lower price
Xmax15.8mm-28%
Qts0.43+23%
BL8.2Tm-23%
Vas104L+2%
Qes0.47+24%
83%
Similarity
6% more£142.77
SB Acoustics
SB29NRX75-8
10"
Higher price
Xmax22mm0%
Qts0.37+6%
BL12.4Tm+16%
Vas85.6L-16%
Qes0.39+3%
54%
Similarity
38% more£185.95
SB Acoustics
WO24P-8
9"
Higher price
Xmax17mm-23%
Qts0.38+9%
BL9.9Tm-7%
Vas87.5L-14%
Qes0.41+8%
35%
Similarity
70% more£228.95
SB Acoustics
WO24P-4
9"
Higher price
Xmax17mm-23%
Qts0.4+14%
BL7.6Tm-29%
Vas71L-30%
Qes0.42+11%
62%
Similarity
122% more£299.00
SB Acoustics
WO24TX-8
9"
Higher price
Xmax17.1mm-22%
Qts0.34-3%
BL10.4Tm-2%
Vas88L-14%
Qes0.36-5%
52%
Similarity
SB Acoustics
WO24TX-4
9"
Xmax17.5mm-20%
Qts0.350%
BL7.9Tm-26%
Vas79L-23%
Qes0.37-3%
46%
Similarity
Kartesian
Sub265_vKi-V
10.5"
Xmax16mm-27%
Qts0.4+14%
BL13.8Tm+29%
Vas91.1L-11%
Qes0.42+11%
