LF DriverWO24 series
SB Acoustics
SB Acoustics WO24TX-8
SB Acoustics WO24TX-8 is a 9" 8 ohm LF driver rated at 90W RMS. The validated T/S data includes Fs 25Hz, Qts 0.34, Vas 88L, Xmax 17.1mm, sensitivity 87.6dB, plus 436cm³ Vd and 68 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £299.00.
Size
9"
Impedance
8Ω
RMS Power
90W
Sensitivity
87.6dB
EBP
68
Either alignment
Vd
436cm³

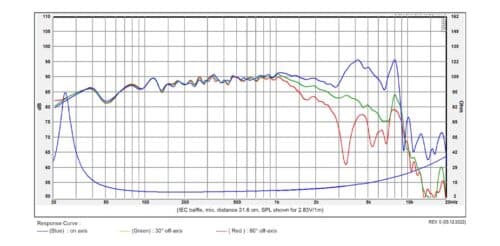

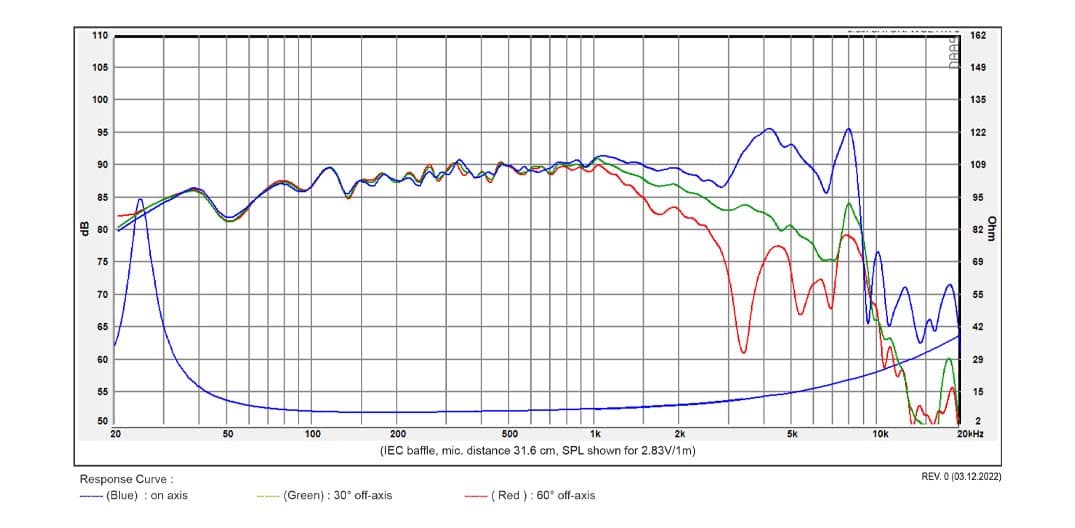

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
30 degrees240 ptsp1medium
60 degrees240 ptsp1medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
30 degrees
Frequency response
240 plotted pointsMedium confidence1,055 selected pixels of 2,720 - Trace datasheet-response-trace-poc/v1
60 degrees
Frequency response
240 plotted pointsMedium confidence1,522 selected pixels of 2,910
T/S Parameters
Valid
Fs25Hz
Qts0.34
Qes0.36
Qms5.7
Vas88.0L
Re5.8Ω
Le0.56mH
BL10.4Tm
Sd255cm²
Mms44g
Xmax17.1mm
SPL88dB
Power90W
Impedance8Ω
Voice Coil50mm
Flux Density1.12T
Pricing & availability
Price definitionsPrice movement
Best current price
£299.00
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight3.9kg
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
SB Acoustics
WO24TX-8
9"
Best current price
£299.00
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
41%
Similarity
72% cheaper£84.41
SB Acoustics
SB23NRXS45-8
8"
Lower price
Xmax13mm-24%
Qts0.38+12%
BL7.5Tm-28%
Vas94L+7%
Qes0.41+14%
40%
Similarity
72% cheaper£84.41
SB Acoustics
SB23NRXS45-4
8"
Lower price
Xmax13mm-24%
Qts0.3-12%
BL6.9Tm-34%
Vas87.5L-1%
Qes0.32-11%
37%
Similarity
67% cheaper£98.70
SB Acoustics
SB23NBACS45-8
8"
Lower price
Xmax13mm-24%
Qts0.4+18%
BL7.9Tm-24%
Vas93.4L+6%
Qes0.43+19%
37%
Similarity
62% cheaper£114.02
SB Acoustics
SB23CACS45-8
8"
Lower price
Xmax13mm-24%
Qts0.4+18%
BL7.9Tm-24%
Vas87L-1%
Qes0.44+22%
58%
Similarity
55% cheaper£134.39
SB Acoustics
SB29NRX75-6
10"
Lower price
Xmax22mm+29%
Qts0.35+3%
BL10.7Tm+2%
Vas102L+16%
Qes0.38+6%
49%
Similarity
52% cheaper£142.77
SB Acoustics
SB29NRX75-8
10"
Lower price
Xmax22mm+29%
Qts0.37+9%
BL12.4Tm+19%
Vas85.6L-3%
Qes0.39+8%
84%
Similarity
38% cheaper£185.95
SB Acoustics
WO24P-8
9"
Lower price
Xmax17mm-1%
Qts0.38+12%
BL9.9Tm-5%
Vas87.5L-1%
Qes0.41+14%
63%
Similarity
25% cheaper£222.95
SB Acoustics
WO24P-4
9"
Lower price
Xmax17mm-1%
Qts0.4+18%
BL7.6Tm-27%
Vas71L-19%
Qes0.42+17%
56%
Similarity
£298.95
Scanspeak
26W/4558T00
10"
Xmax12.5mm-27%
Qts0.31-9%
BL10.5Tm0%
Vas94.9L+8%
Qes0.33-8%
41%
Similarity
48% more£443.61
Volt
RV2550
10"
Higher price
Xmax12mm-30%
Qts0.33-3%
BL13.9Tm+33%
Vas71.8L-18%
Qes0.38+6%
81%
Similarity
SB Acoustics
WO24TX-4
9"
Xmax17.5mm+2%
Qts0.35+3%
BL7.9Tm-24%
Vas79L-10%
Qes0.37+3%
60%
Similarity
Purifi
PTT10.0X04-NAB-01
10"
Xmax14.8mm-14%
Qts0.33-3%
BL12.8Tm+22%
Vas82L-7%
Qes0.35-3%
