8-inch LF driver · PTT series · 52 mm voice coil · 90 W

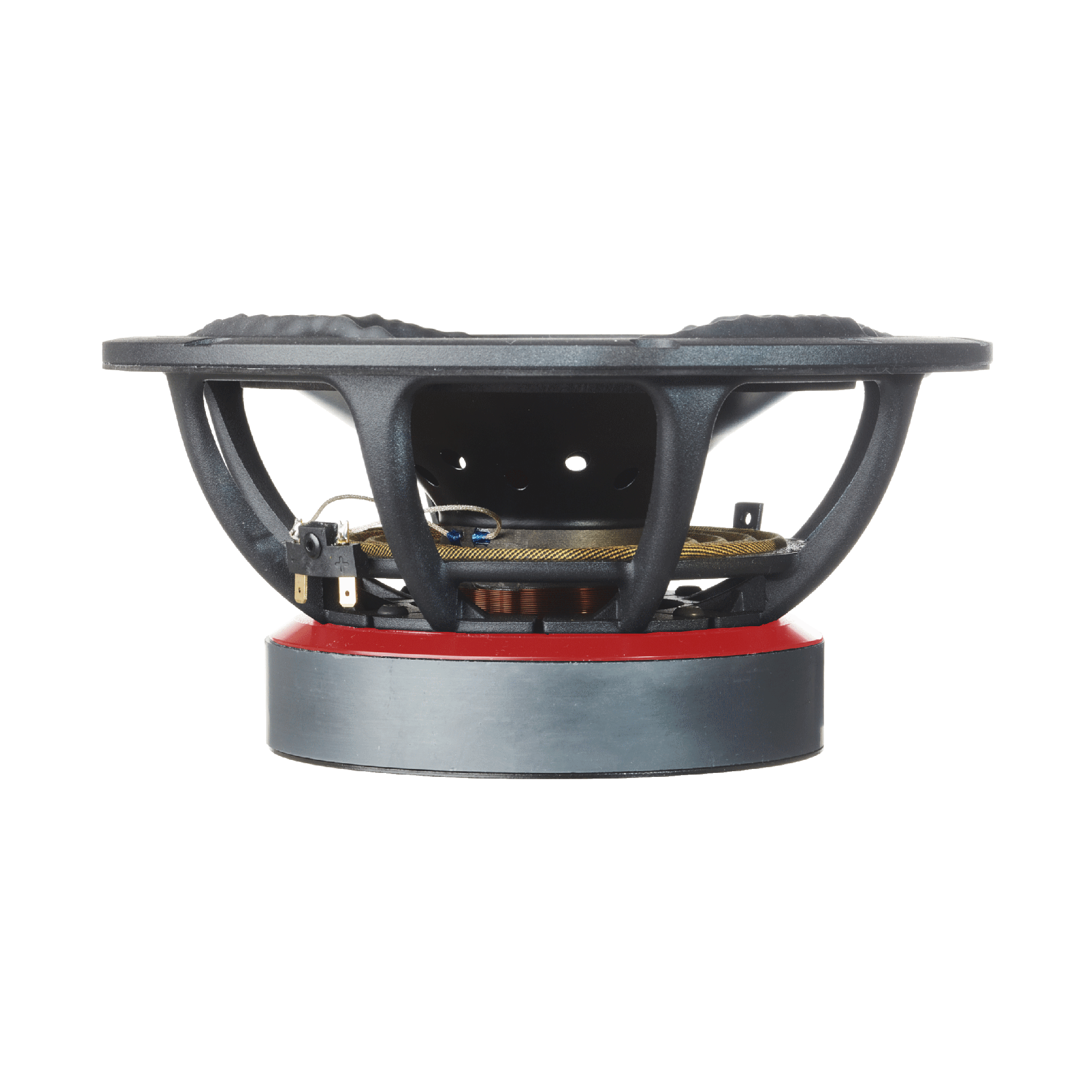

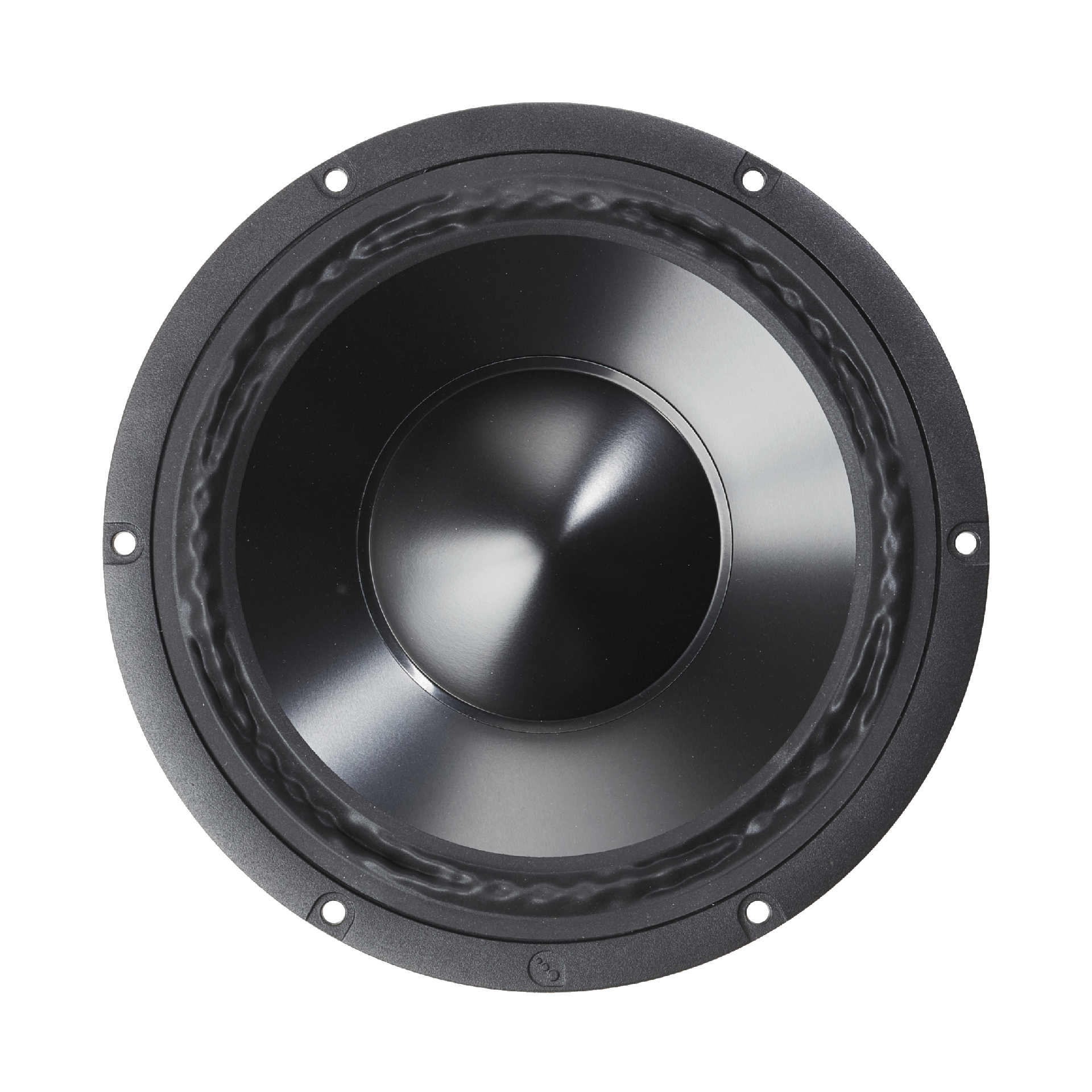

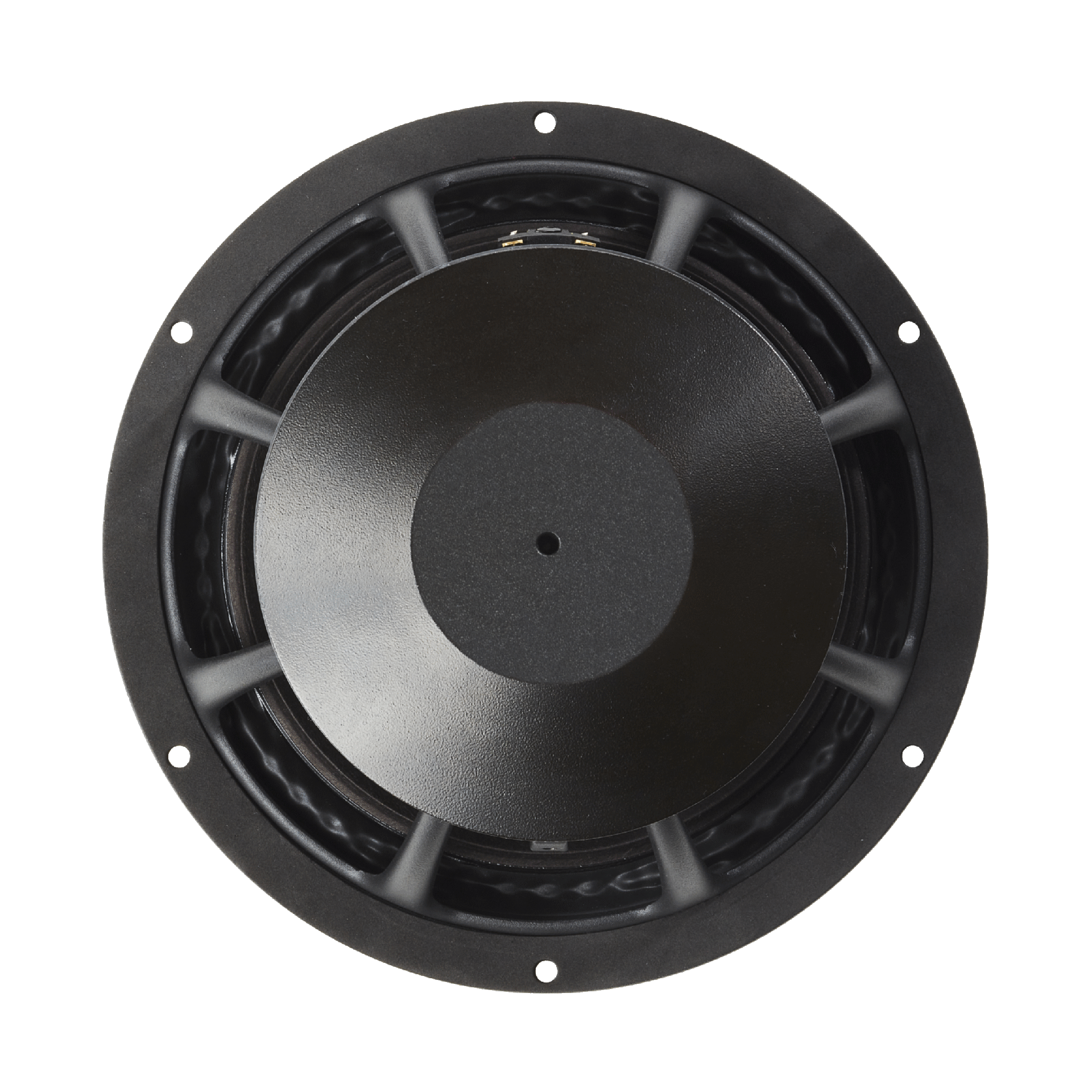

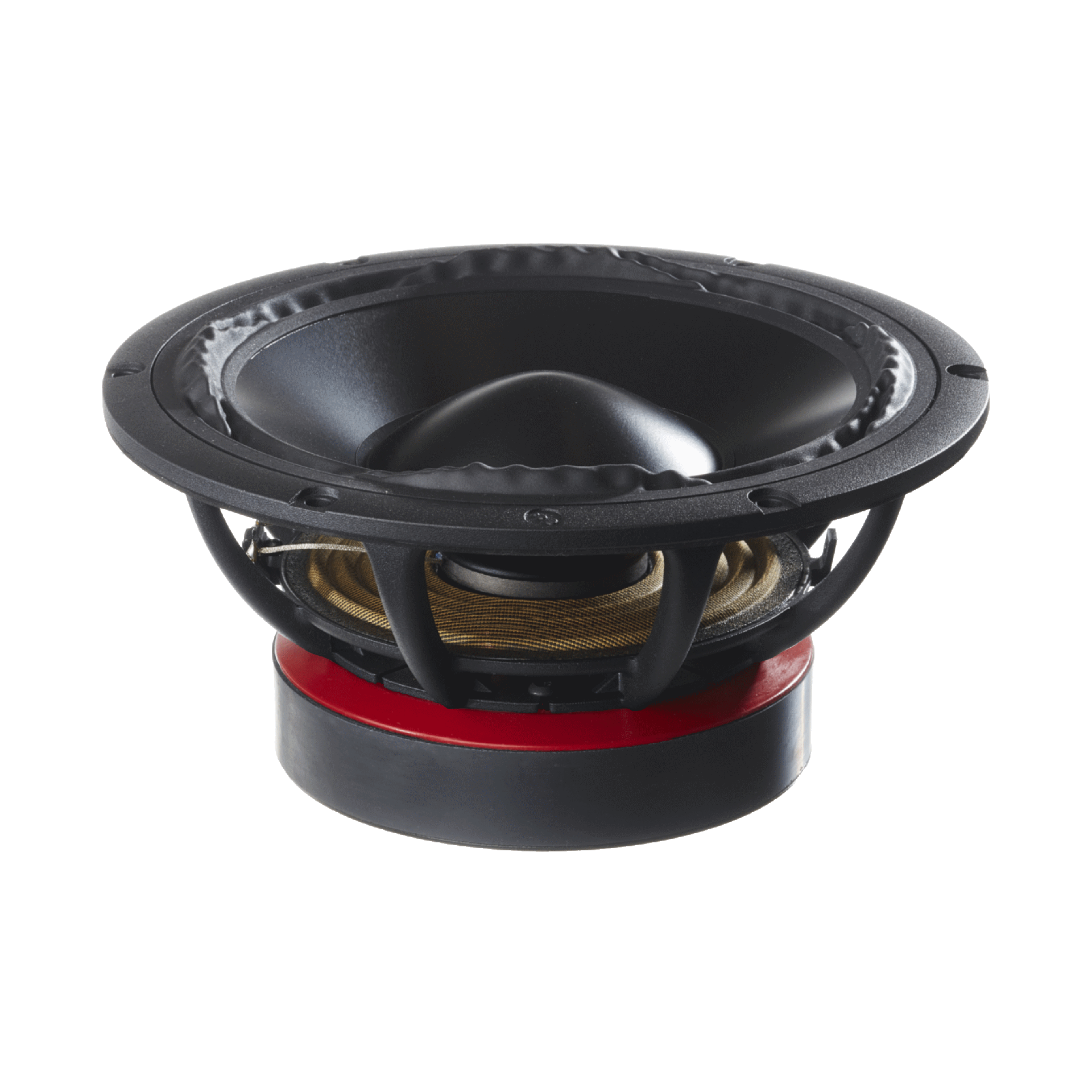

Purifi PTT8.0X04-NAB-01 4Ω
4 Ω
£586.08
SteadySoundImports · 1 in stock · Ships from Netherlands · All 1 offer
- Fs
- 26Hz
- Xmax
- 9.3mm
- SPL
- 87dB
- Pe
- 90W
- BL
- 8T·m
- Vd
- 219cm³
- Qts
- 0.36
- Vas
- 70L
Purifi PTT8.0X04-NAB-01 is an 8-inch 4 ohm LF driver rated at 90 W RMS. The validated T/S data includes Fs 26 Hz, Qts 0.36, Vas 70.4 L, Xmax 9.3 mm, sensitivity 87.2 dB, plus 219 cm³ Vd and 68 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £586.08.
The published T/S values agree with each other
Thiele/Small
- Fs
- 26Hz
- Qts
- 0.36
- Qes
- 0.38
- Qms
- 5.3
- Vas
- 70.4L
- Re
- 3.5Ω
- Le
- 0.18mH
Motor and cone
- BL
- 8T·m
- Sd
- 235cm²
- Mms
- 43g
- Xmax
- 9.3mm
- Vd †
- 219cm³
- Voice coil
- 52mm
Power and response
- Sensitivity †
- 87.2dB
- Manufacturer sensitivity
- 89.3dB
- Power
- 90W
- Impedance
- 4Ω
- Min. impedance
- 3.8Ω
- EBP †
- 68 · Sealed or vented
Size and mounting
- Diameter
- 221mm
- Cutout
- 193mm
- Bolt circle
- 210mm
- Weight
- 3.5kg
Other published values
- Cms
- 0.90mm/N
- Rms
- 1.32kg/s
- Xmech
- 15
- Power Peak
- 350
Other dimensions
- Mounting Depth
- 102
Sensitivity shows 87.2 dB, calculated from the T/S values. Purifi publishes 89.3 dB, 2.1 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Purifi lists
LF · Primary · 8″
- BL
- 8T·m
- Fs
- 26Hz
- Le
- 0.18mH
- Re
- 3.5Ω
- Sd
- 235cm²
- Cms
- 0.90mm/N
- Mms
- 43g
- Qes
- 0.38
- Qms
- 5.3
- Qts
- 0.36
- Rms
- 1.32kg/s
- SPL
- 87.2dB
- Vas
- 70.4L
- Xmax
- 9.3mm
- Xmech
- 15
- Power
- 90W
- Impedance
- 4Ω
- Power Peak
- 350
- Sensitivity
- 89.3dB
- Calculated sensitivity †
- 87.2dB
- Manufacturer sensitivity
- 89.3dB
- Min. impedance
- 3.8Ω
- Voice coil
- 52mm
- Weight
- 3.5kg
- Diameter
- 221mm
- Mounting Depth
- 102
- Cutout
- 193mm
- Bolt circle
- 210mm
