Overview
LF DriverMA200 series
Markaudio

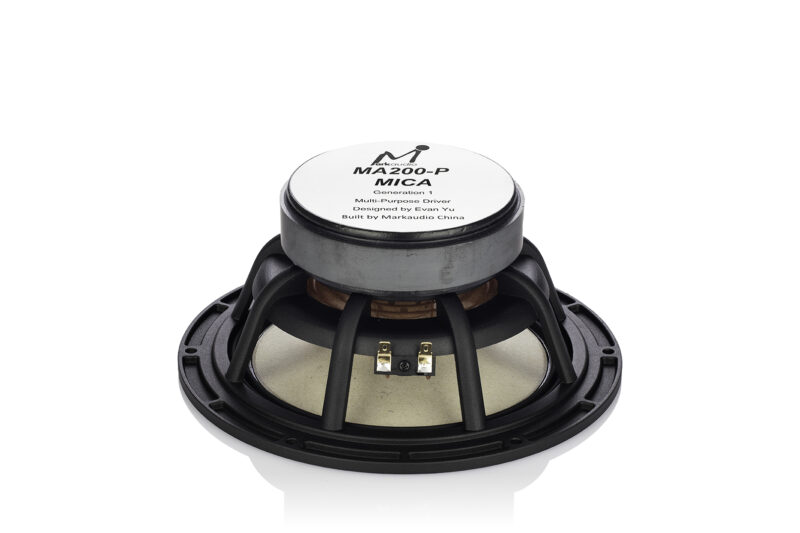

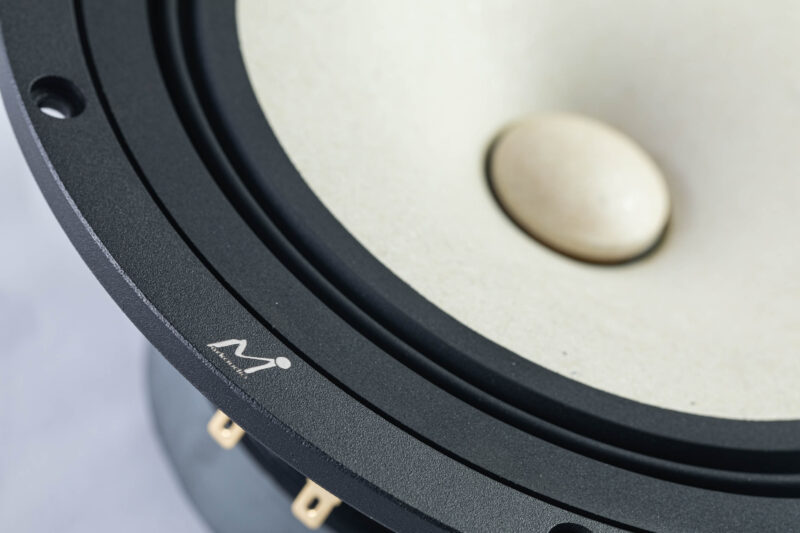

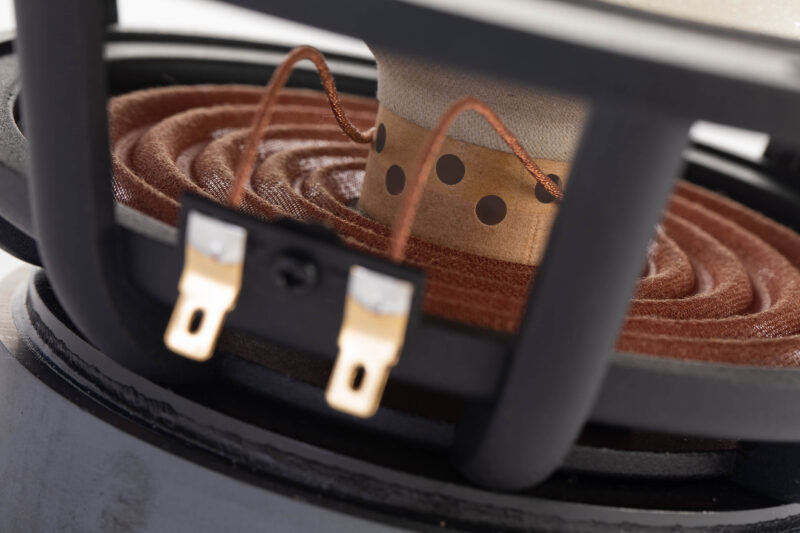

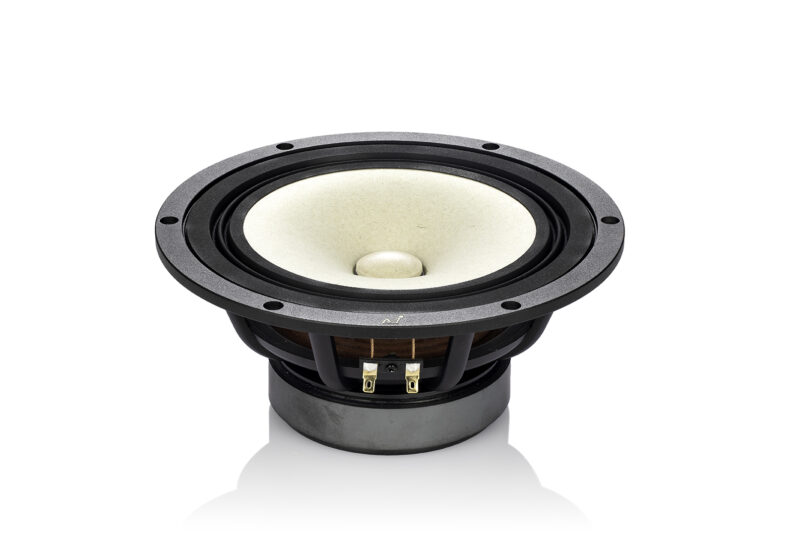

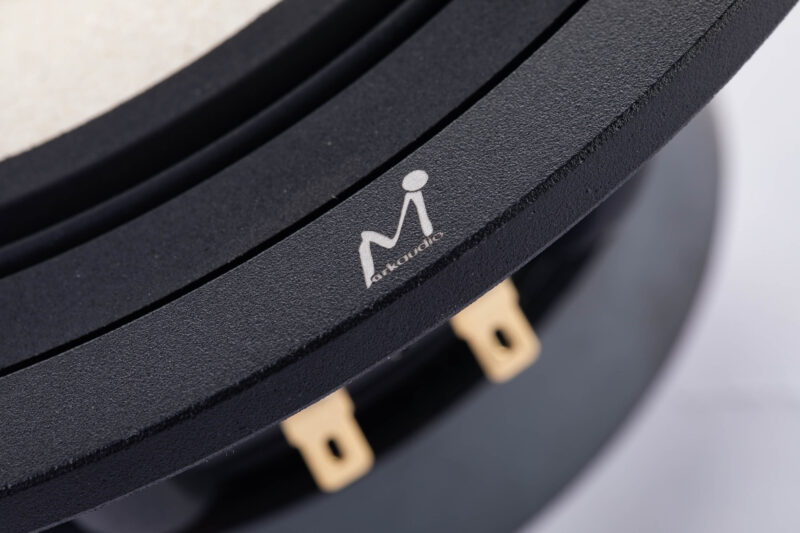

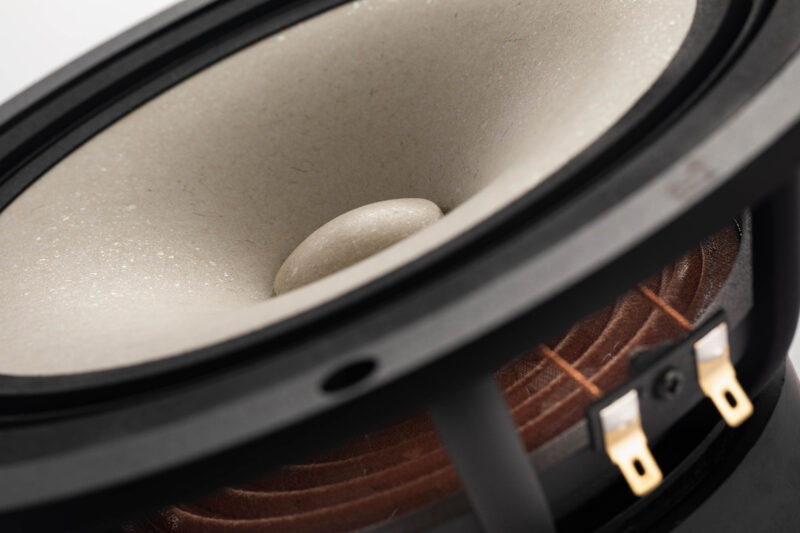

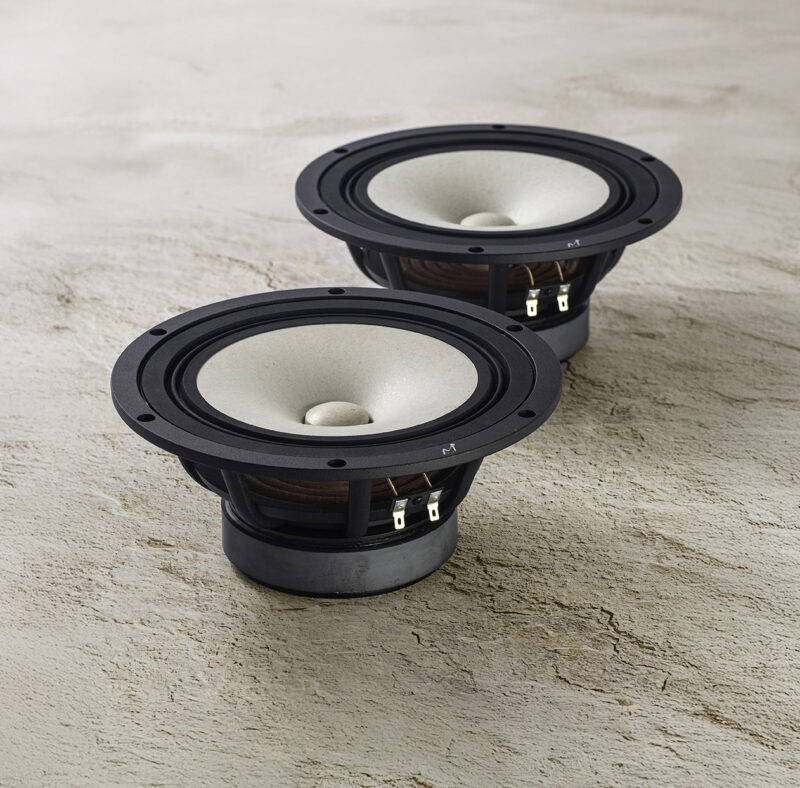

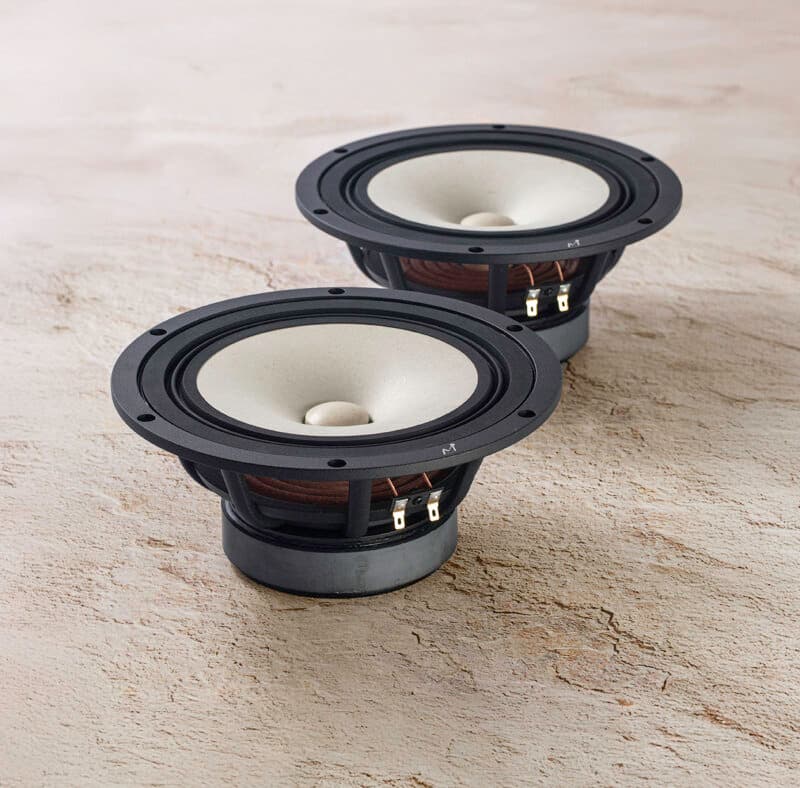

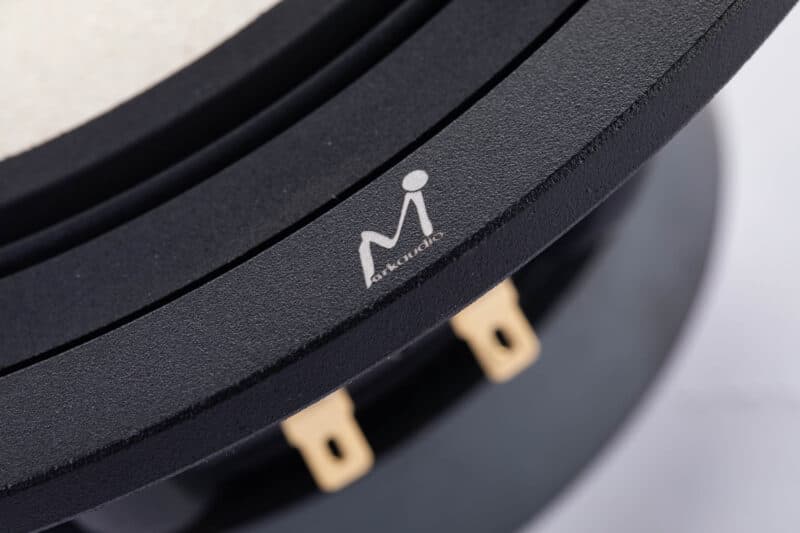

Markaudio MA200-P MICA
Markaudio MA200-P MICA is a 7.75" 8 ohm LF driver rated at 50W RMS. The validated T/S data includes Fs 39Hz, Qts 0.37, Vas 66.5L, Xmax 7mm, sensitivity 91.5dB, plus 144cm³ Vd and 88 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
7.75"
Impedance
8Ω
RMS Power
50W
Sensitivity
91.5dB
92.8dBmanufacturer; using T/S-derived value (1.3dB delta).
EBP
88
Either alignment
Vd
144cm³
T/S Parameters
Valid
Fs39Hz
Qts0.37
Qes0.45
Qms2.3
Vas66.5L
Re6.2Ω
Le0.05mH
BL7.0Tm
Sd206cm²
Mms14g
Xmax7.0mm
SPL92dB
Power50W
Impedance8Ω
Pricing & availability
Price definitionsUse this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight2.6kg
