Overview
LF DriverClassic series
Scanspeak

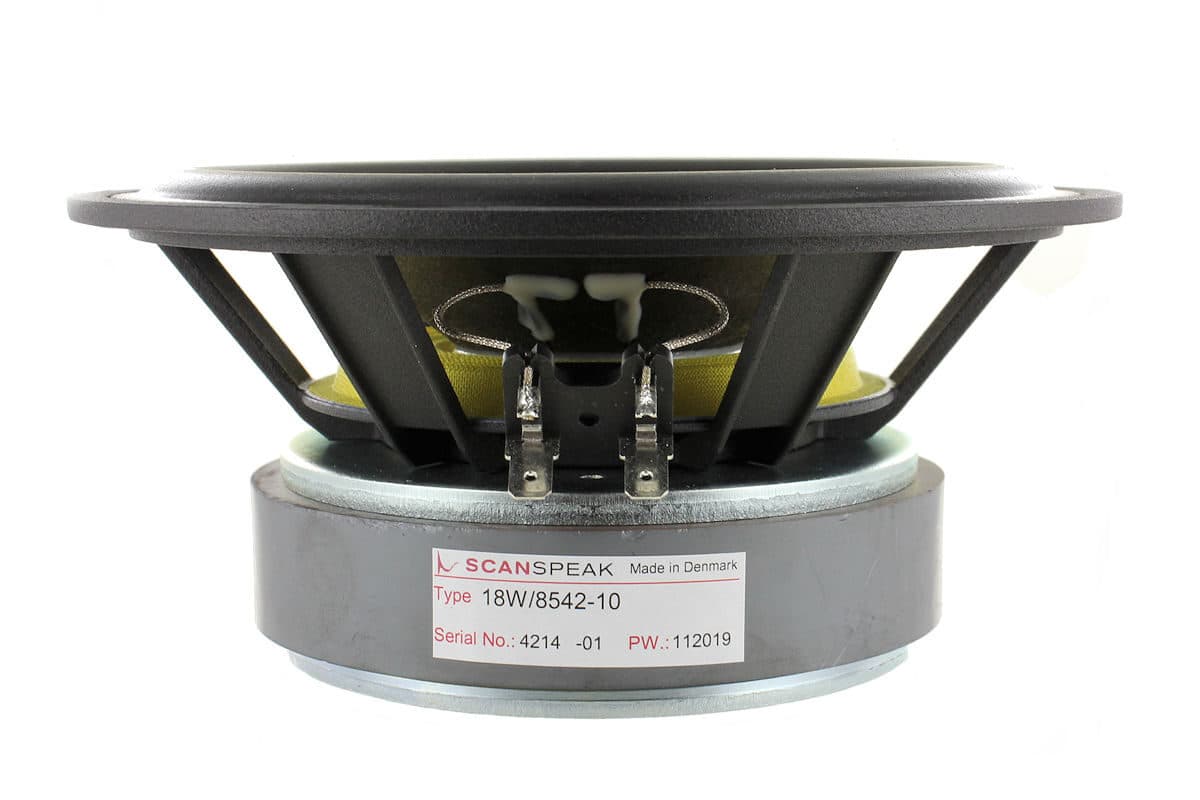

Scanspeak 18W/8542-10
Scanspeak 18W/8542-10 is a 7" 8 ohm LF driver rated at 70W RMS. The validated T/S data includes Fs 43Hz, Qts 0.35, Vas 26L, Xmax 6.5mm, sensitivity 88.7dB, plus 88cm³ Vd and 98 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £189.95.
Size
7"
Impedance
8Ω
RMS Power
70W
Sensitivity
88.7dB
EBP
98
Either alignment
Vd
88cm³
T/S Parameters
Valid
Fs43Hz
Qts0.35
Qes0.44
Qms17.0
Vas26.0L
Re5.7Ω
Le0.20mH
BL6.9Tm
Sd135cm²
Mms14g
Xmax6.5mm
SPL89dB
Power70W
Impedance8Ω
Min Impedance6.6Ω
Voice Coil42mm
Pricing & availability
Price definitionsPrice movement
Best current price
£189.95
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Diameter180.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Scanspeak
18W/8542-10
7"
Best current price
£189.95
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
88%
Similarity
72% cheaper£52.41
Dayton Audio
RS180P-8
7"
Lower price
Xmax6mm-8%
Qts0.34-3%
BL7.2Tm+4%
Vas22L-15%
Qes0.440%
84%
Similarity
70% cheaper£56.16
Dayton Audio
RS180S-8
7"
Lower price
Xmax6mm-8%
Qts0.36+3%
BL7.3Tm+6%
Vas23L-12%
Qes0.49+11%
57%
Similarity
70% cheaper£56.87
Peerless
HDS-P830875
6.5"
Lower price
Xmax7.3mm+13%
Qts0.39+11%
BL8.7Tm+25%
Vas18.6L-28%
Qes0.45+1%
73%
Similarity
69% cheaper£58.80
Monacor
SPH-176
6.5"
Lower price
Xmax5.5mm-15%
Qts0.37+6%
BL7.7Tm+12%
Vas27L+4%
Qes0.440%
49%
Similarity
60% cheaper£76.74
Peerless
HDS-P835025
6.5"
Lower price
Xmax7.4mm+14%
Qts0.42+20%
BL8.6Tm+25%
Vas19L-27%
Qes0.47+7%
54%
Similarity
58% cheaper£78.95
Monacor
SPH-175HQ
6.5"
Lower price
Xmax5.5mm-15%
Qts0.42+20%
BL6.4Tm-7%
Vas33L+27%
Qes0.5+14%
52%
Similarity
53% cheaper£90.00

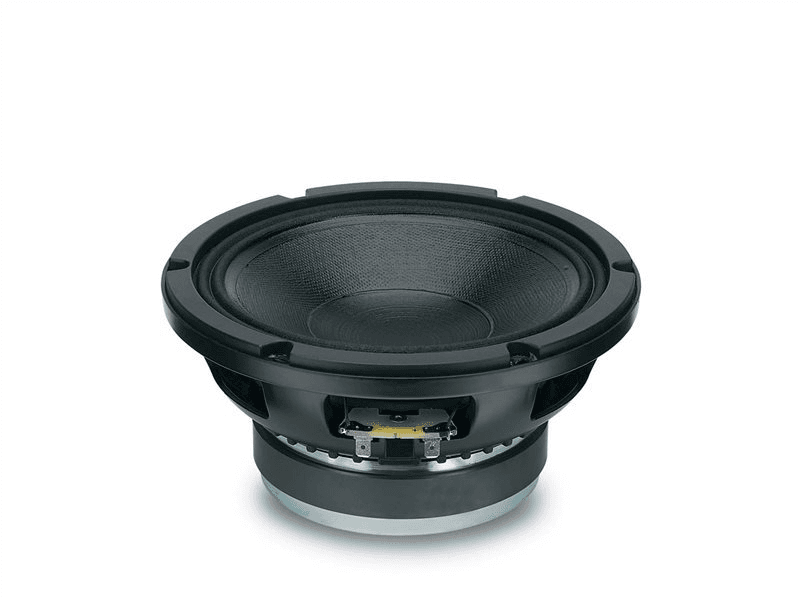

Eighteen Sound
8MB400
8"
Lower price
Xmax5.8mm-11%
Qts0.38+9%
BL9.3Tm+35%
Vas23.9L-8%
Qes0.43-2%
38%
Similarity
46% cheaper£103.07

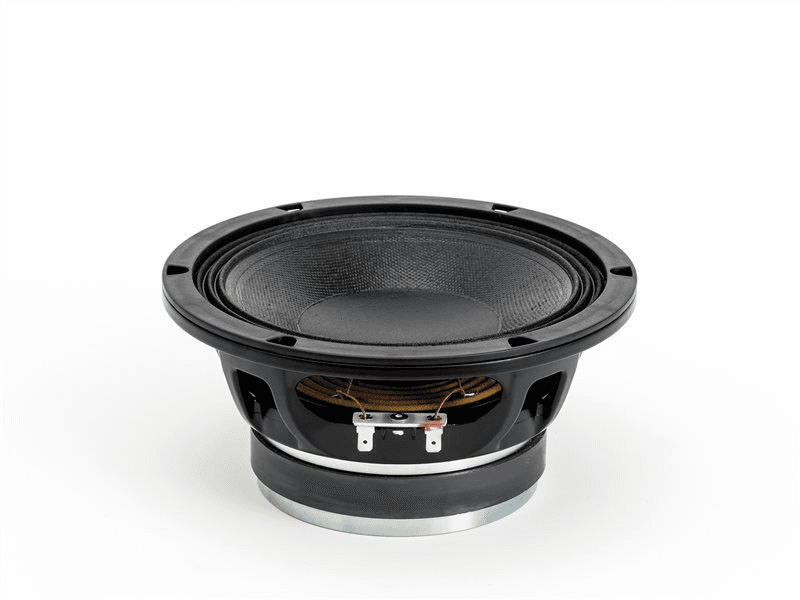

Eighteen Sound
8MB500
8"
Lower price
Xmax6mm-8%
Qts0.43+23%
BL9Tm+30%
Vas21.5L-17%
Qes0.51+16%
39%
Similarity
43% cheaper£107.95
Fountek
FW168K
6.5"
Lower price
Xmax5mm-23%
Qts0.43+22%
BL7.9Tm+14%
Vas15.1L-42%
Qes0.52+19%
65%
Similarity
43% cheaper£109.00
Celestion
NTR06-1705D
6.5"
Lower price
Xmax6mm-8%
Qts0.38+8%
BL8.2Tm+18%
Vas21.4L-18%
Qes0.4-8%
49%
Similarity
9% cheaper£171.95
Scanspeak
15W/8534T00
6"
Lower price
Xmax5mm-23%
Qts0.39+11%
BL5.5Tm-20%
Vas30L+15%
Qes0.43-2%
64%
Similarity
2% cheaper£185.95

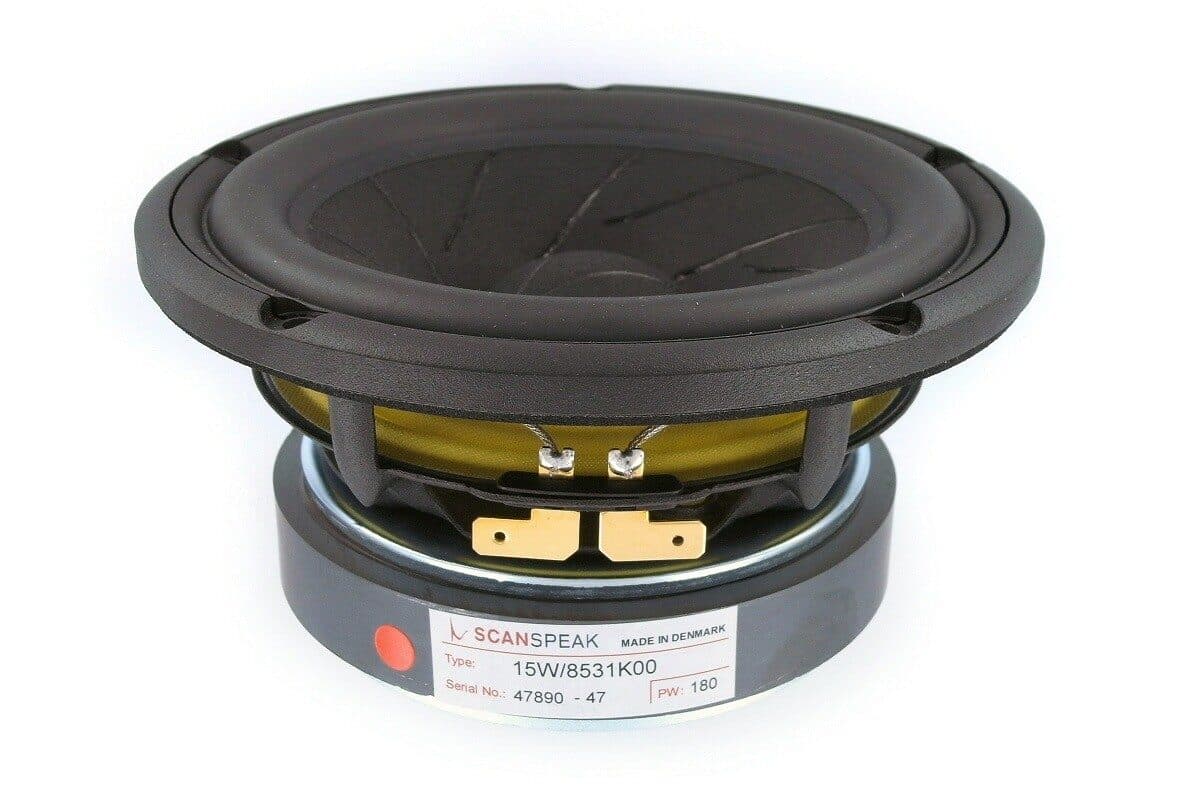

Scanspeak
15W/8531K00
6"
Lower price
Xmax6.5mm0%
Qts0.38+9%
BL6.6Tm-4%
Vas16.7L-36%
Qes0.42-5%
