LF DriverCeramic series
Accuton
Accuton C158-8-085
Accuton C158-8-085 is a 6" 8 ohm LF driver rated at 100W RMS. The validated T/S data includes Fs 37Hz, Qts 0.36, Vas 27.3L, Xmax 5mm, sensitivity 87.5dB, plus 57cm³ Vd and 95 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £369.95.
Size
6"
Impedance
8Ω
RMS Power
100W
Sensitivity
87.5dB
EBP
95
Either alignment
Vd
57cm³
T/S Parameters
Valid
Fs37Hz
Qts0.36
Qes0.39
Qms4.9
Vas27.3L
Re8.1Ω
Le0.54mH
BL7.7Tm
Sd113cm²
Mms12g
Xmax5.0mm
SPL88dB
Power100W
Impedance8Ω
F Low38Hz
F High3000Hz
Voice Coil25mm
Pricing & availability
Price definitionsPrice movement
Best current price
£369.95
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

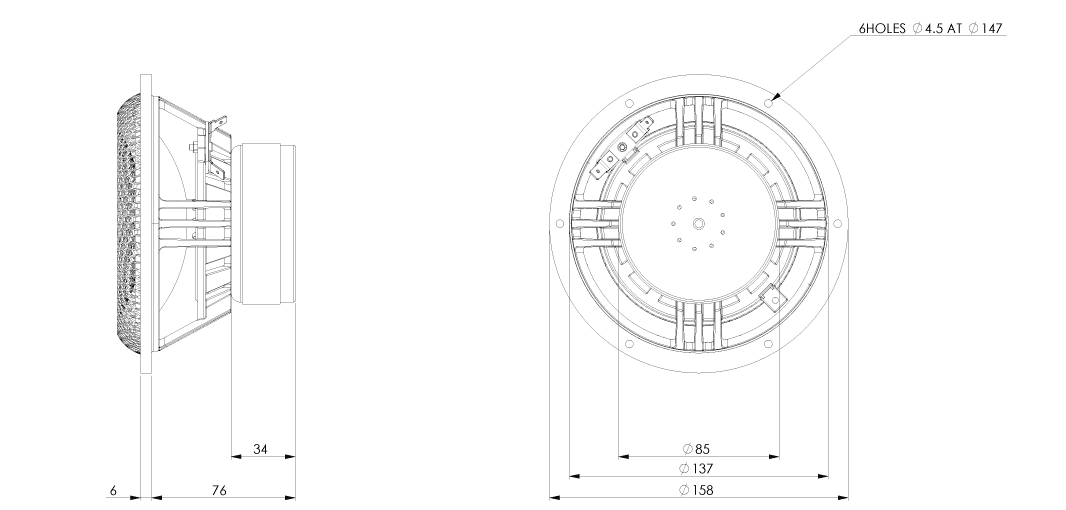

Dimensions & Physical
Diameter158.0mm
Overall Depth82.0mm
Cutout Diameter137.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Accuton
C158-8-085
6"
Best current price
£369.95
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
57%
Similarity
89% cheaper£41.18
Dayton Audio
RS150-8
6"
Lower price
Xmax4mm-20%
Qts0.34-6%
BL5.6Tm-27%
Vas16.6L-39%
Qes0.43+10%
41%
Similarity
88% cheaper£44.95
Eighteen Sound
5W430
5"
Lower price
Xmax6mm+20%
Qts0.32-11%
BL6.3Tm-18%
Vas15L-45%
Qes0.36-8%
27%
Similarity
87% cheaper£48.95
Monacor
SPH-5M
5"
Lower price
Xmax3.5mm-30%
Qts0.41+14%
BL6.4Tm-17%
Vas13.5L-51%
Qes0.47+21%
55%
Similarity
86% cheaper£52.41
Dayton Audio
RS180P-8
7"
Lower price
Xmax6mm+20%
Qts0.34-6%
BL7.2Tm-7%
Vas22L-19%
Qes0.44+13%
55%
Similarity
85% cheaper£56.16
Dayton Audio
RS180S-8
7"
Lower price
Xmax6mm+20%
Qts0.360%
BL7.3Tm-5%
Vas23L-16%
Qes0.49+26%
79%
Similarity
84% cheaper£58.80
Monacor
SPH-176
6.5"
Lower price
Xmax5.5mm+10%
Qts0.37+3%
BL7.7Tm0%
Vas27L-1%
Qes0.44+13%
43%
Similarity
82% cheaper£64.95
Monacor
SPH-6M
6.5"
Lower price
Xmax4mm-20%
Qts0.3-17%
BL9.7Tm+26%
Vas17.6L-36%
Qes0.35-10%
50%
Similarity
79% cheaper£78.95

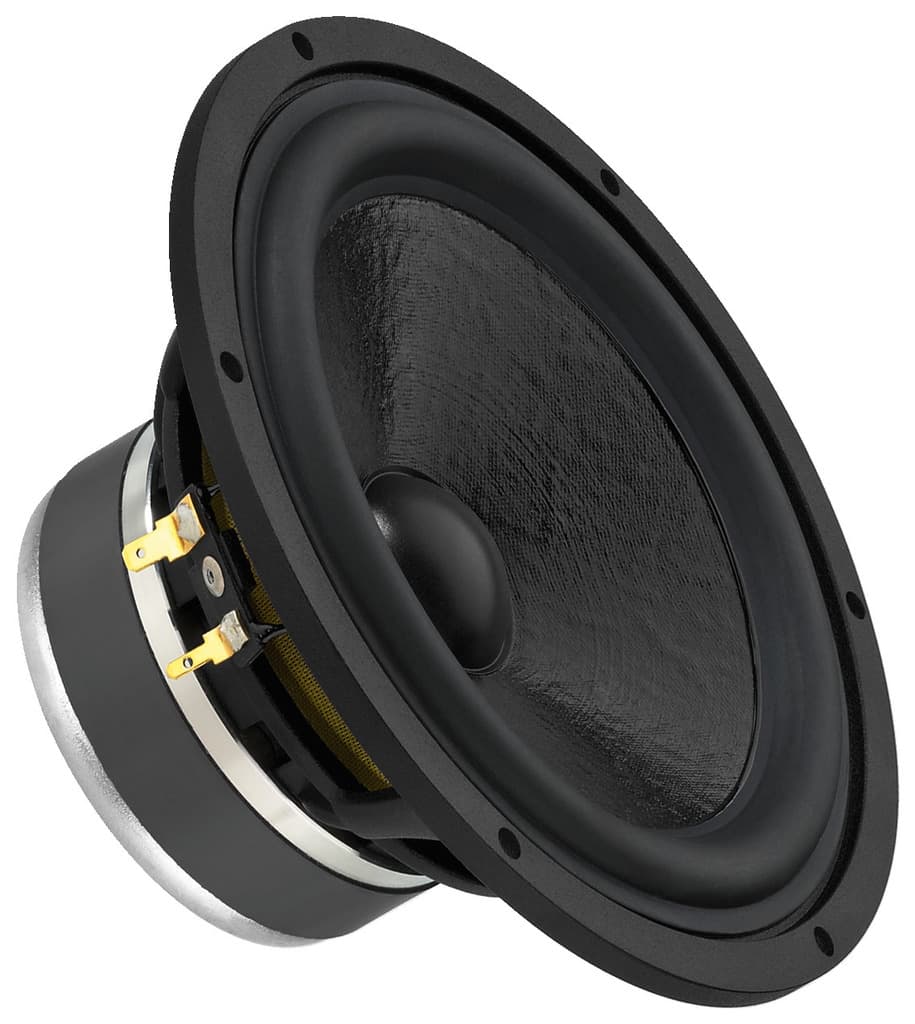

Monacor
SPH-175HQ
6.5"
Lower price
Xmax5.5mm+10%
Qts0.42+17%
BL6.4Tm-17%
Vas33L+21%
Qes0.5+28%
54%
Similarity
77% cheaper£84.95
Scanspeak
18W/4434G00
7"
Lower price
Xmax4.3mm-14%
Qts0.35-3%
BL6Tm-22%
Vas20.7L-24%
Qes0.37-5%
43%
Similarity
76% cheaper£86.95

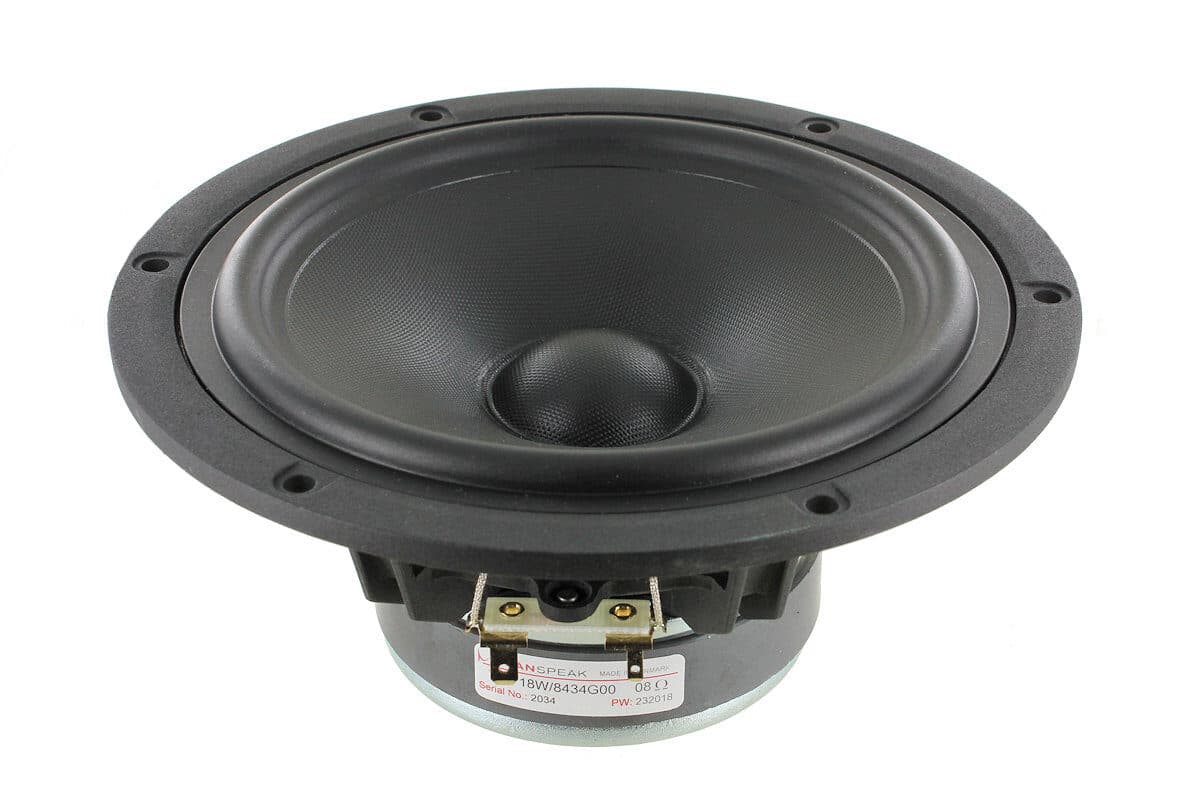

Scanspeak
18W/8434G00
7"
Lower price
Xmax4.2mm-16%
Qts0.43+19%
BL7.2Tm-6%
Vas19.5L-29%
Qes0.46+18%
27%
Similarity
72% cheaper£103.00
CIARE
HWG130
5"
Lower price
Xmax6.5mm+30%
Qts0.28-22%
BL7.8Tm+1%
Vas12.5L-54%
Qes0.3-23%
52%
Similarity
71% cheaper£107.95

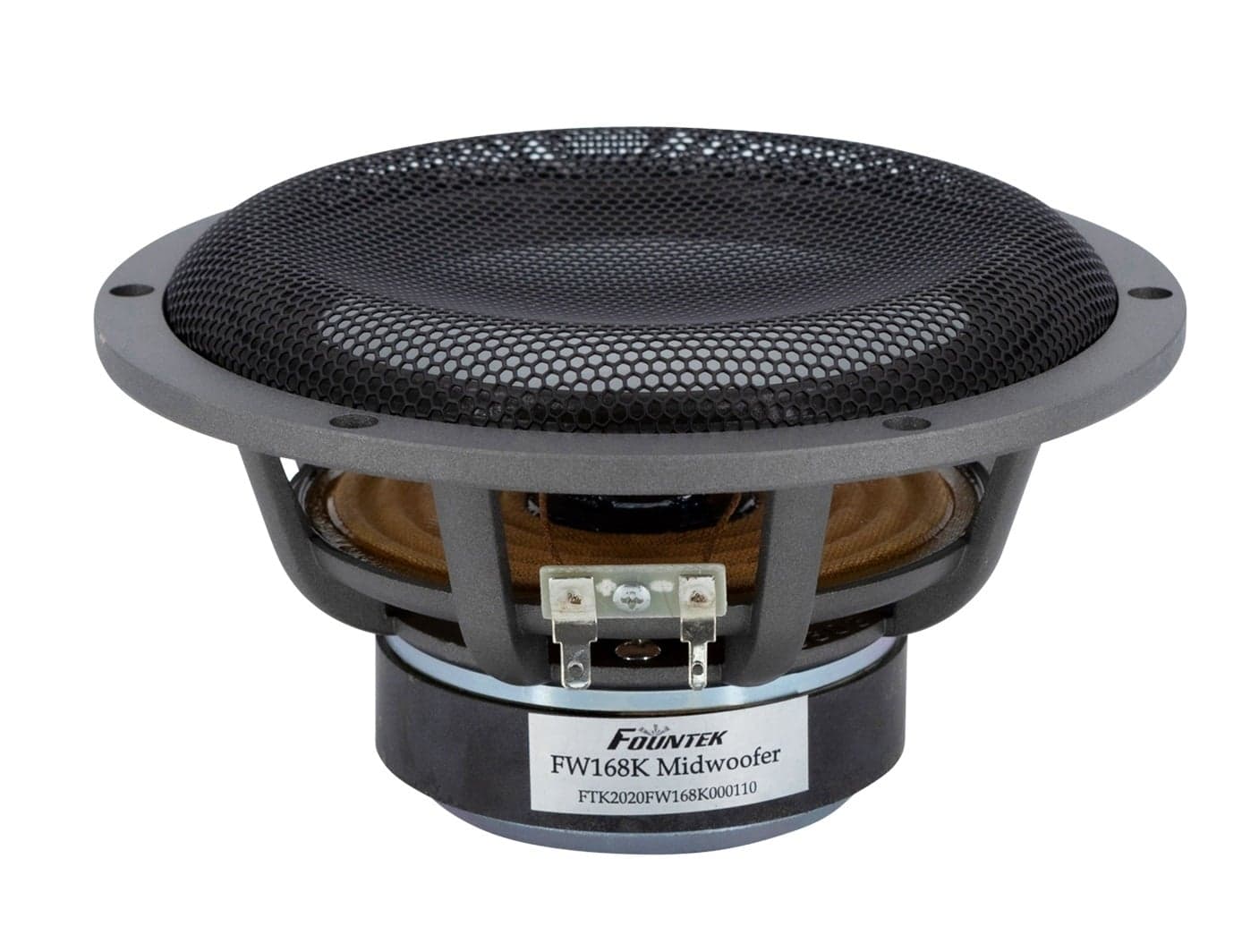

Fountek
FW168K
6.5"
Lower price
Xmax5mm0%
Qts0.43+19%
BL7.9Tm+3%
Vas15.1L-45%
Qes0.52+34%
