Overview
LF DriverCW series
CIARE
CIARE CW169
CIARE CW169 is a 6.5" 4 ohm LF driver rated at 180W RMS. The validated T/S data includes Fs 46Hz, Qts 0.32, Vas 21.2L, Xmax 5mm, sensitivity 89.3dB, plus 67cm³ Vd and 118 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
6.5"
Impedance
4Ω
RMS Power
180W
Sensitivity
89.3dB
EBP
118
Vented alignment
Vd
67cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence1,457 selected pixels of 1,647
T/S Parameters
Valid
Fs46Hz
Qts0.32
Qes0.39
Qms1.8
Vas21.2L
Re3.3Ω
Le0.32mH
BL5.9Tm
Sd133cm²
Mms14g
Xmax5.0mm
SPL89dB
Power180W
Power Nominal90W
Impedance4Ω
F Low40Hz
F High40Hz
Voice Coil32mm
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.8kg
Diameter165.0mm
Overall Depth74.0mm
Cutout Diameter147.0mm
Bolt Circle Diameter154.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
CIARE
CW169
6.5"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
80%
Similarity
SEAS
H1571-08 U18RNX/P
6.5"
Xmax4mm-20%
Qts0.320%
BL6.3Tm+6%
Vas25L+18%
Qes0.38-3%
78%
Similarity
CIARE
HWB160
6.5"
Xmax4.5mm-10%
Qts0.36+12%
BL6.5Tm+9%
Vas19.5L-8%
Qes0.38-3%
76%
Similarity
Audio Technology
15 J 52 15 06 SD
6"
Xmax5.2mm+4%
Qts0.320%
BL5.5Tm-7%
Vas15L-29%
Qes0.37-5%
75%
Similarity

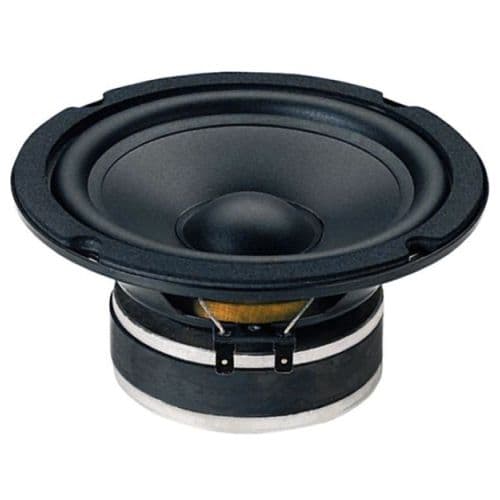

CIARE
