Kartesian Lom155_vKi 4Ω
LF DriverMedia
Auto-advancing
Overview
LF DrivervKi series
Kartesian

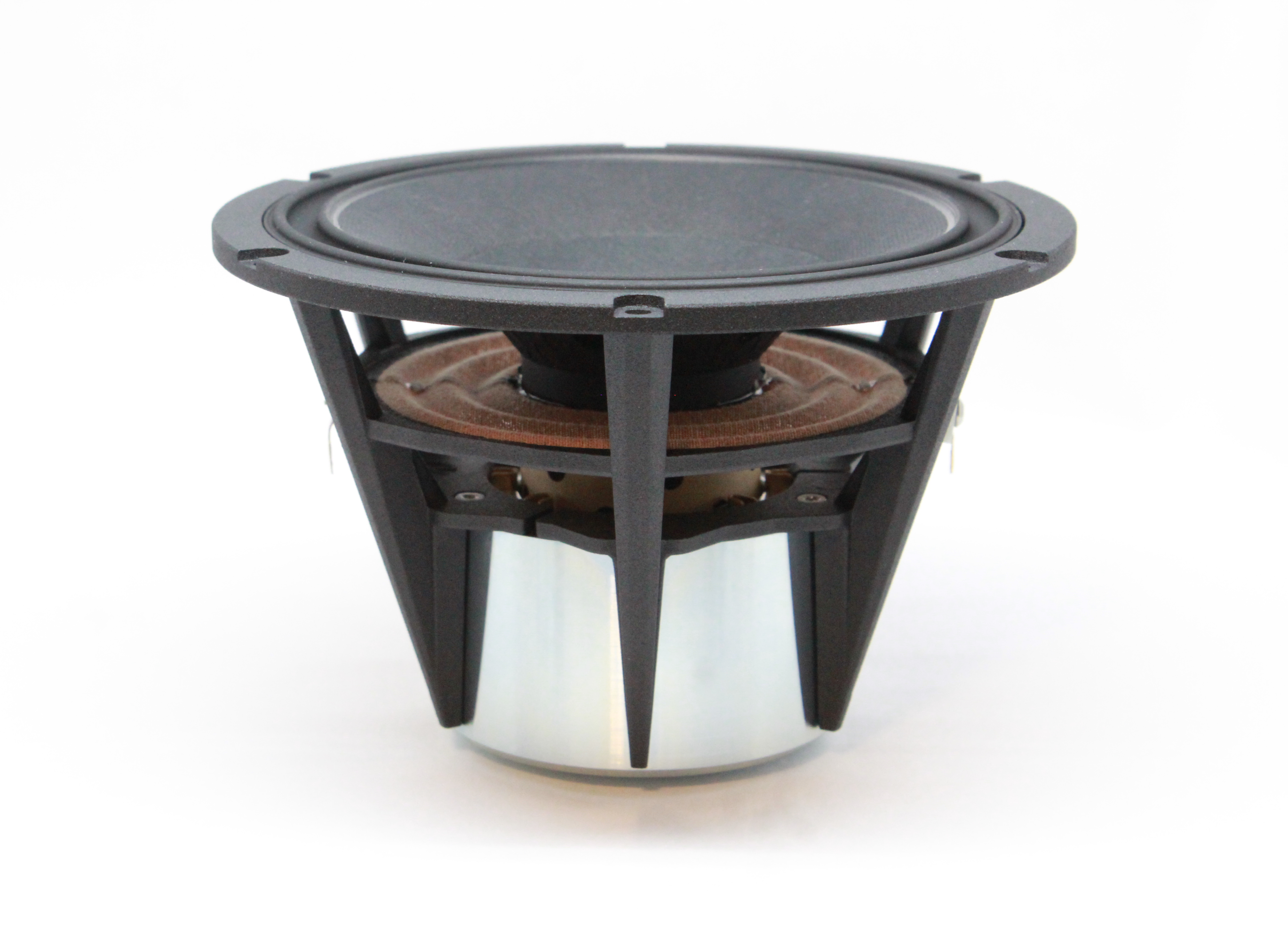

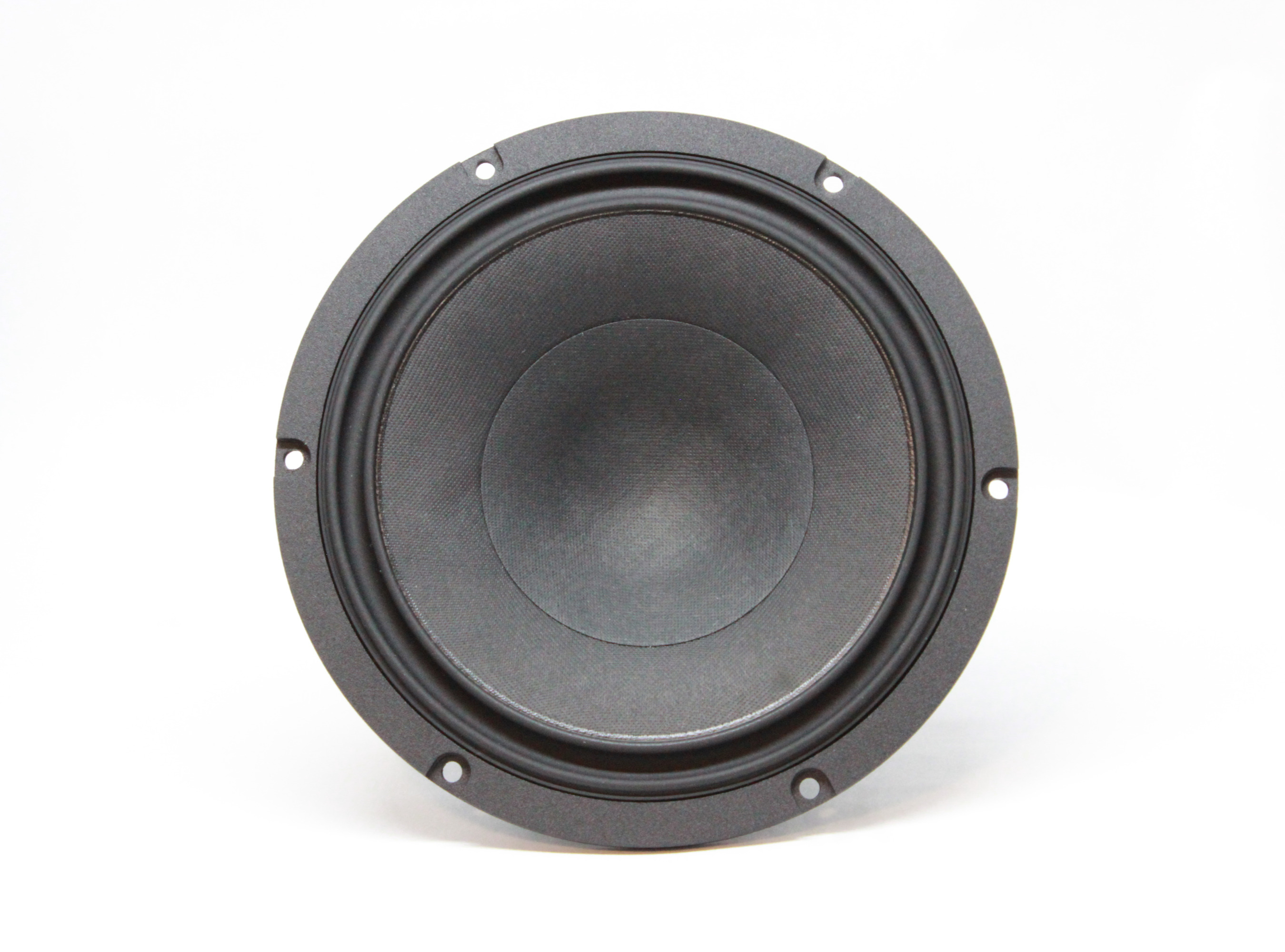

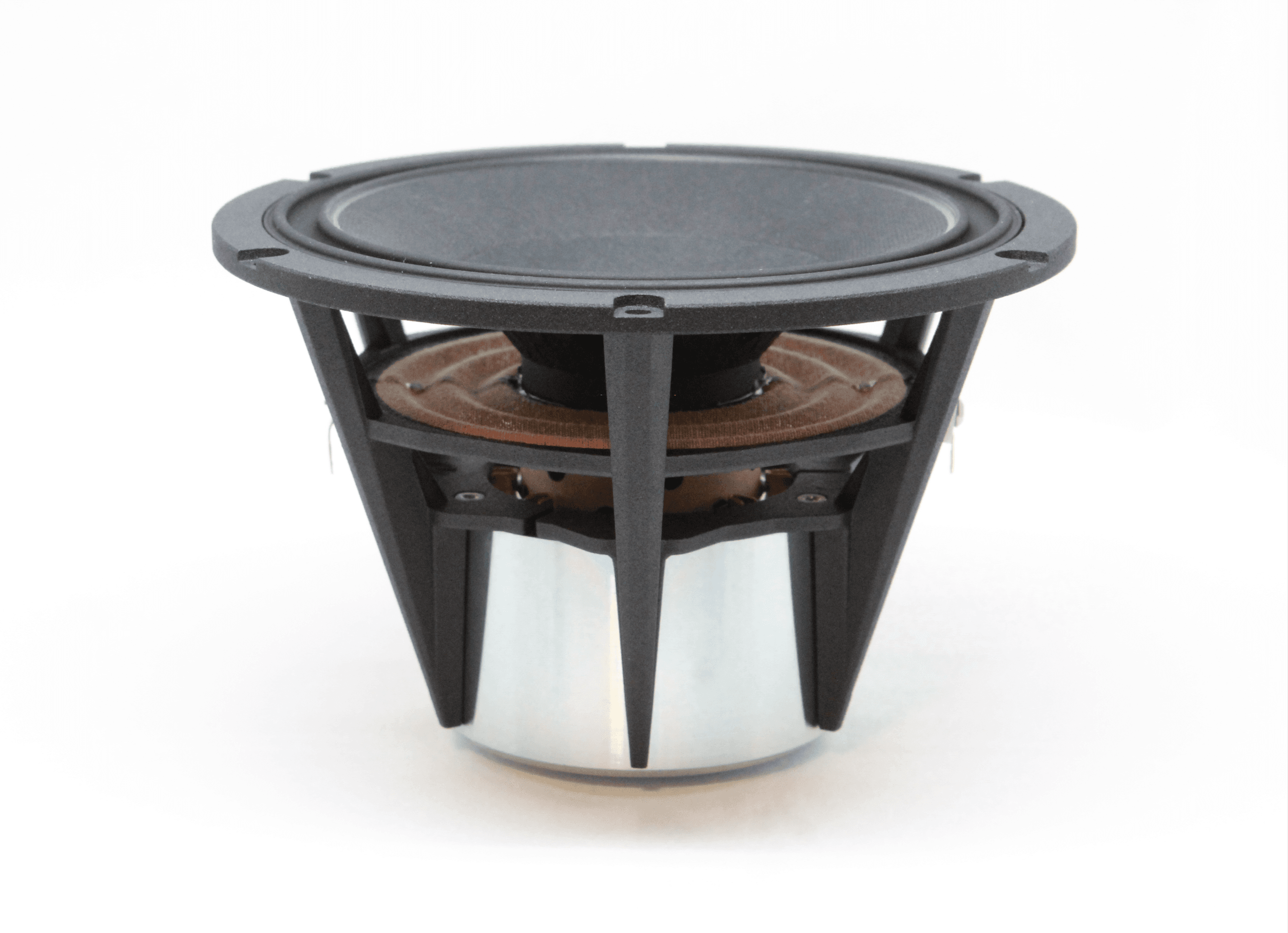

Kartesian Lom155_vKi
Kartesian Lom155_vKi is a 6" 4 ohm LF driver. The validated T/S data includes Fs 48Hz, Qts 0.33, Vas 16.6L, Xmax 6mm, sensitivity 89.1dB, plus 75cm³ Vd and 133 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
6"
Impedance
4Ω
Sensitivity
89.1dB
93.0dBmanufacturer; using T/S-derived value (3.9dB delta).
EBP
133
Vented alignment
Vd
75cm³
T/S Parameters
Valid
Fs48Hz
Qts0.33
Qes0.36
Qms3.8
Vas16.6L
Re3.3Ω
Le0.08mH
BL6.3Tm
Sd125cm²
Mms15g
Xmax6.0mm
SPL89dB
Impedance4Ω
F Low50Hz
F High5000Hz
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Not enough T/S data
Missing RMS power
BASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Not enough T/S data
Missing RMS power
VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Not enough T/S data
Missing RMS power
00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Diameter155.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Kartesian
Lom155_vKi
6"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
85%
Similarity
£196.95
Scanspeak
15W/4531G00
6"
Xmax6.5mm+8%
Qts0.32-3%
BL5.7Tm-10%
Vas15.8L-5%
Qes0.34-6%
80%
Similarity
Audio Technology
15 J 52 15 06 SD
6"
Xmax5.2mm-13%
Qts0.32-3%
BL5.5Tm-13%
Vas15L-10%
Qes0.37+3%
76%
Similarity
£150.70
Scanspeak
15W/8531K00
6"
Xmax6.5mm+8%
Qts0.38+15%
BL6.6Tm+4%
Vas16.7L+1%
Qes0.42+17%
72%
Similarity
£157.03
Scanspeak
15W/8530K00
6"
Xmax6.5mm+8%
Qts0.39+18%
BL6.6Tm+4%
Vas16L-4%
Qes0.43+19%
Image unavailable
71%
Similarity
Wavecor
WF152BD05
6"
Xmax4.5mm-25%
Qts0.330%
BL6.3Tm0%
Vas9.2L-45%
Qes0.34-6%
Image unavailable
71%
Similarity
£96.89
Wavecor
WF152BD13
6"
Xmax4.5mm-25%
Qts0.330%
BL6.3Tm0%
Vas9.2L-45%
Qes0.34-6%
71%
Similarity
SEAS
H1216-08 CA15RLY
6"
Xmax5mm-17%
Qts0.34+3%
BL5.5Tm-13%
Vas14L-16%
Qes0.42+17%
66%
Similarity
CIARE
CW169
6.5"
Xmax5mm-17%
Qts0.32-3%
BL5.9Tm-6%
Vas21.2L+28%
Qes0.39+8%
66%
Similarity
Wavecor
WF152BD03
6"
Xmax4.5mm-25%
Qts0.35+6%
BL5.8Tm-9%
Vas9.2L-45%
Qes0.360%
Image unavailable
65%
Similarity
£108.73
Wavecor
WF152BD09
6"
Xmax4.5mm-25%
Qts0.34+3%
BL5.8Tm-9%
Vas8.6L-48%
Qes0.35-3%
Image unavailable
65%
Similarity
Wavecor
WF152BD10
6"
Xmax4.5mm-25%
Qts0.32-3%
BL5.8Tm-9%
Vas9.6L-42%
Qes0.33-8%
63%
Similarity
CIARE
HWB160
6.5"
Xmax4.5mm-25%
Qts0.36+9%
BL6.5Tm+2%
Vas19.5L+17%
Qes0.38+6%
