Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespSica 6 H 1.5 CP 8Ω
LF DriverMedia
Auto-advancing
Overview
LF Driver
Sica
Sica 6 H 1.5 CP

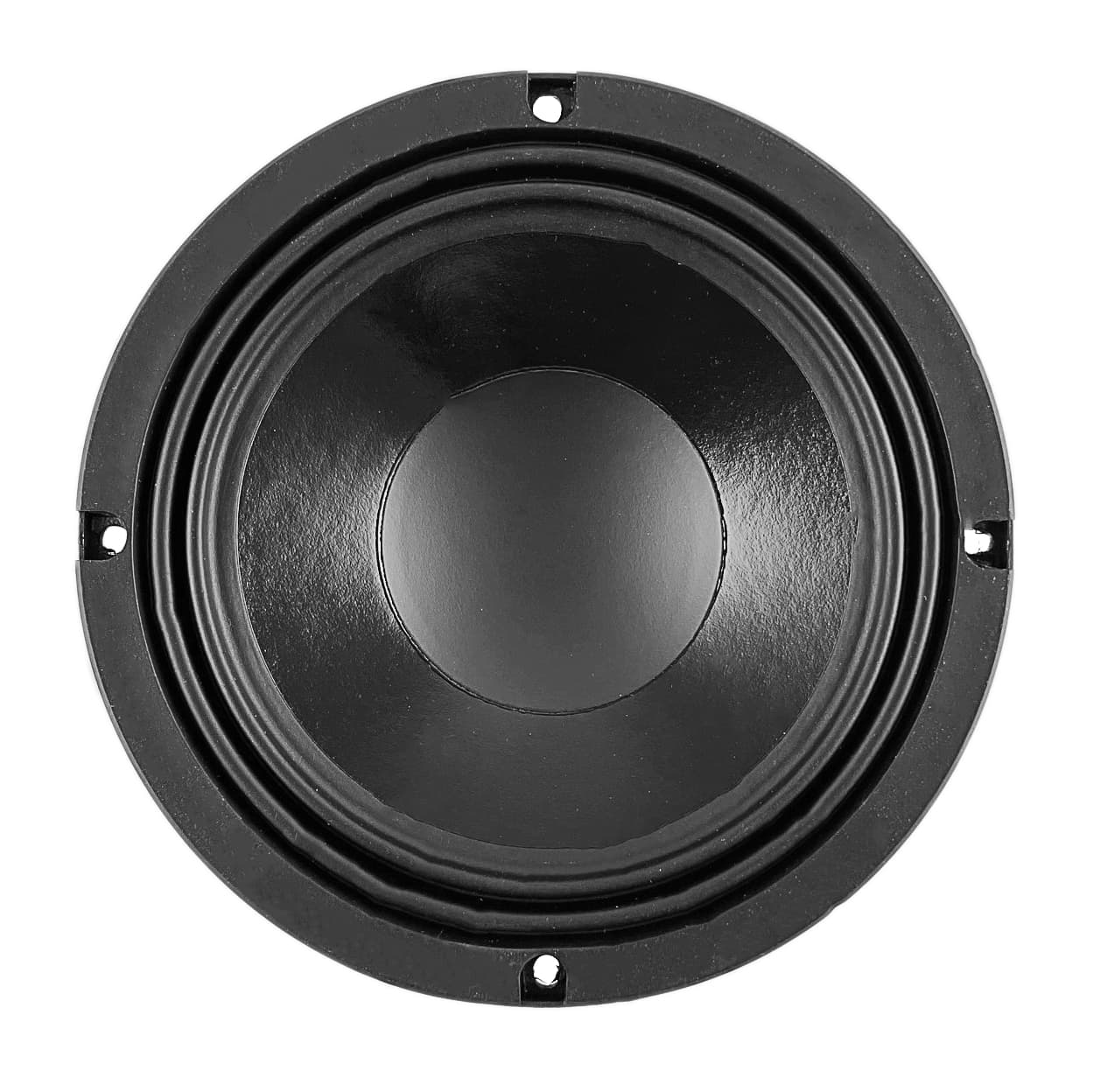

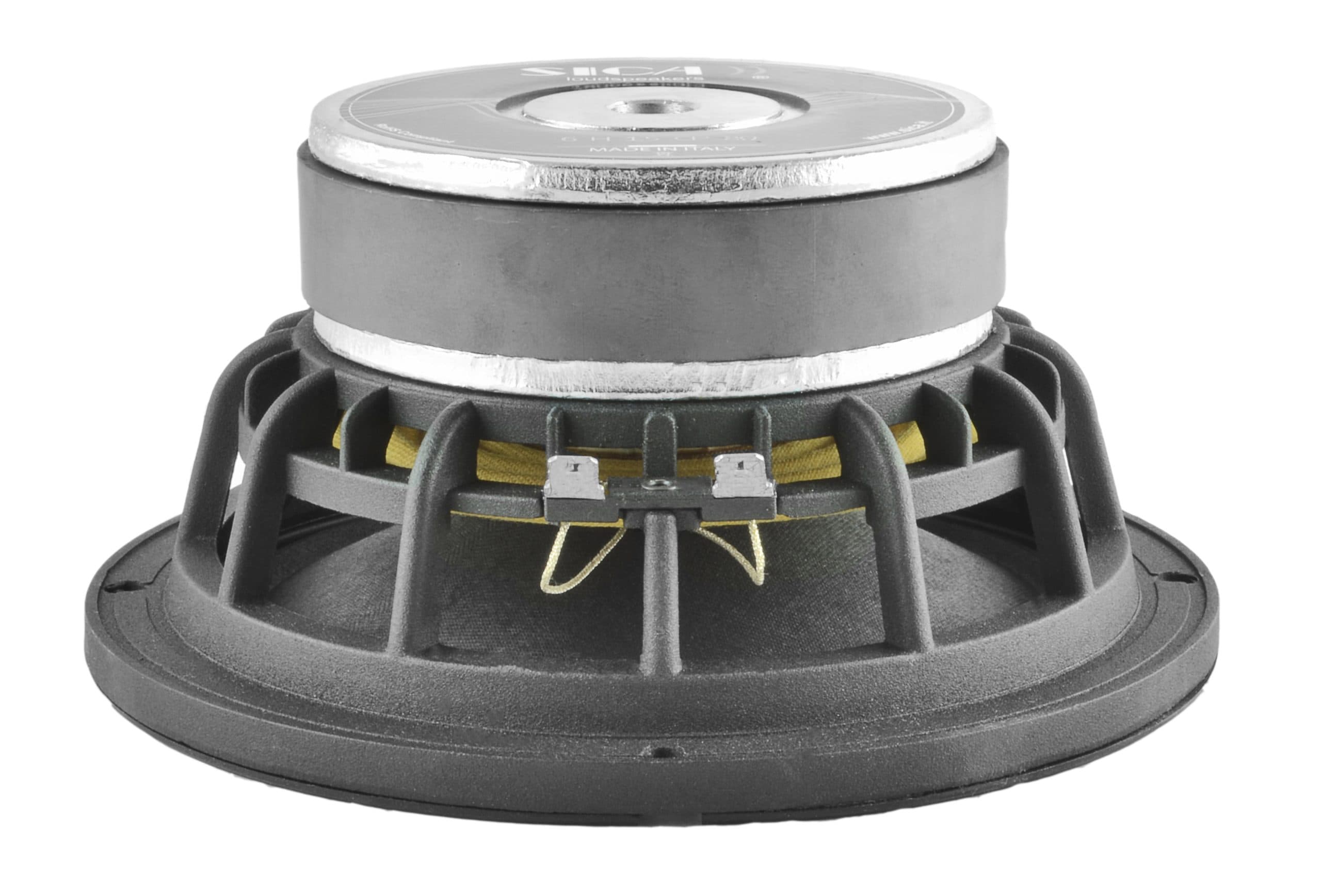

Sica 6 H 1.5 CP is a 6" 8 ohm LF driver rated at 120W RMS. The validated T/S data includes Fs 46Hz, Qts 0.35, Vas 16.6L, Xmax 6mm, sensitivity 88.3dB, plus 74cm³ Vd and 121 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
6"
Impedance
8Ω
RMS Power
120W
Sensitivity
88.3dB
89.4dBmanufacturer; using T/S-derived value (1.1dB delta).
EBP
121
Vented alignment
Vd
74cm³
T/S Parameters
Valid
Fs46Hz
Qts0.35
Qes0.38
Qms3.7
Vas16.6L
Re6.1Ω
Le0.95mH
BL8.4Tm
Sd123cm²
Mms15g
Xmax6.0mm
SPL88dB
Power120W
Impedance8Ω
Voice Coil38mm
Flux Density1.03T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.6kg
Diameter166.0mm
Overall Depth79.2mm
Cutout Diameter143.0mm
Bolt Circle Diameter155.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Sica
6 H 1.5 CP
6"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
82%
Similarity
Kartesian
LOM155_VKI
6"
Xmax6mm0%
Qts0.33-6%
BL6.3Tm-24%
Vas16.6L0%
Qes0.36-5%
80%
Similarity
£42.98
HiVi
F6
6"
Xmax4.3mm-28%
Qts0.350%
BL9Tm+7%
Vas16.4L-1%
Qes0.380%
75%
Similarity
£150.70
Scanspeak
15W/8531K00
6"
Xmax6.5mm+8%
Qts0.38+9%
BL6.6Tm-21%
Vas16.7L+1%
Qes0.42+11%
75%
Similarity
£109.00
Celestion
NTR06-1705D
6.5"
Xmax6mm0%
Qts0.38+8%
BL8.2Tm-3%
Vas21.4L+29%
Qes0.4+6%
Image unavailable
73%
Similarity
Wavecor
WF152BD08
6"
Xmax4.5mm-25%
Qts0.350%
BL8Tm-5%
Vas11.5L-31%
Qes0.36-5%
Image unavailable
73%
Similarity
Wavecor
WF152BD16
6"
Xmax4.5mm-25%
Qts0.350%
BL8Tm-5%
Vas11.5L-31%
Qes0.36-5%
73%
Similarity
Volt
CX160.1
6.5"
Xmax6mm0%
Qts0.350%
BL9.5Tm+13%
Vas22.6L+36%
Qes0.36-5%
72%
Similarity
Purifi
PTT6.5W08-NAA-08
6.5"
Xmax5.9mm-2%
Qts0.350%
BL9.4Tm+12%
Vas23.8L+43%
Qes0.37-3%
71%
Similarity
£157.03
Scanspeak
15W/8530K00
6"
Xmax6.5mm+8%
Qts0.39+11%
BL6.6Tm-21%
Vas16L-4%
Qes0.43+13%
71%
Similarity
£67.85
PRV Audio
6MB550FT
6"
Xmax5.4mm-10%
Qts0.34-3%
BL9.8Tm+16%
Vas8.2L-50%
Qes0.380%
69%
Similarity
Purifi
PTT6.5W08-NFA-06
6.5"
Xmax5.9mm-2%
Qts0.33-6%
BL9.5Tm+13%
Vas22.5L+36%
Qes0.36-5%
69%
Similarity
£172.04
Scanspeak
15W/4531G00
6"
Xmax6.5mm+8%
Qts0.32-9%
BL5.7Tm-32%
Vas15.8L-5%
Qes0.34-11%
