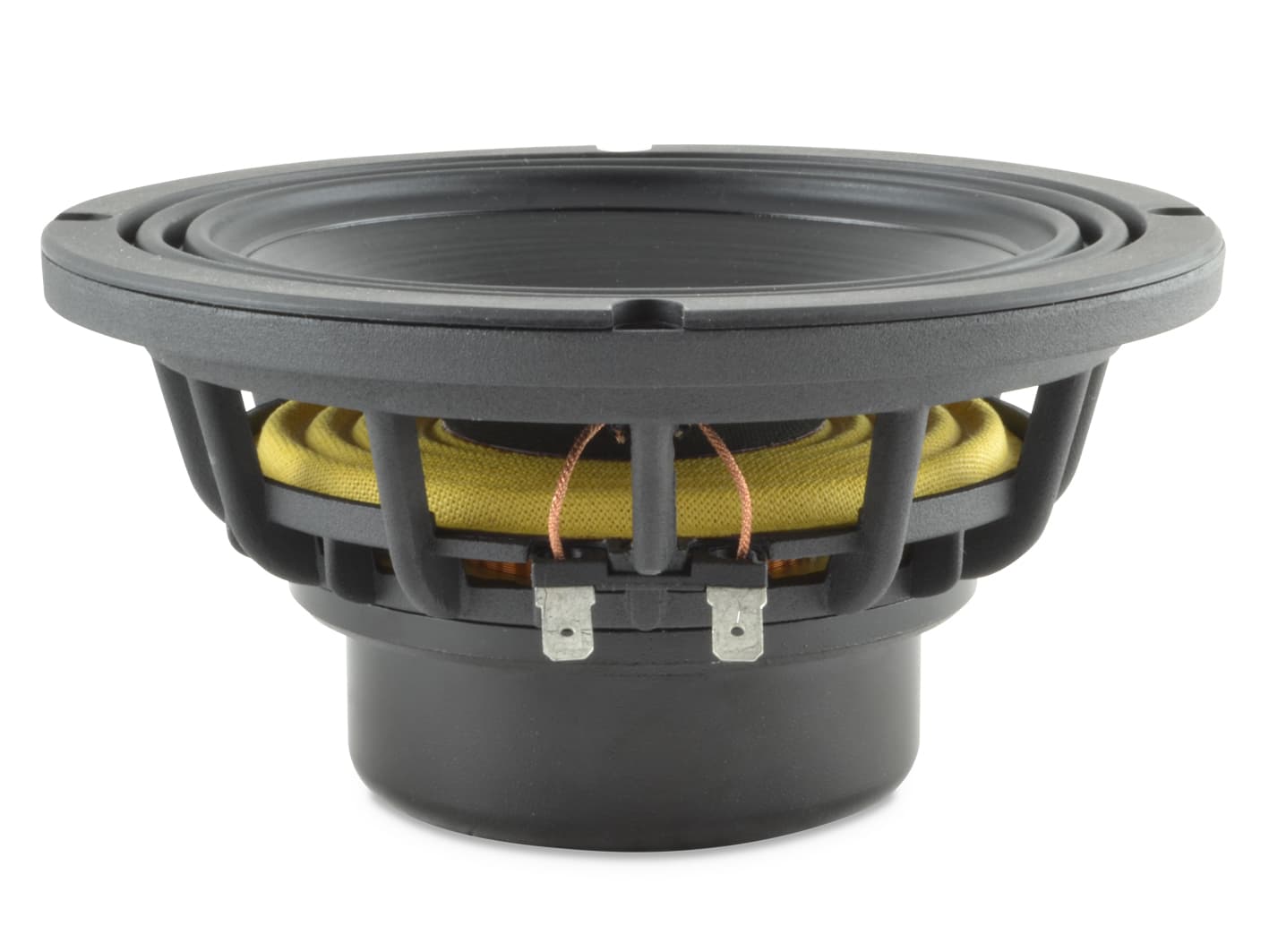

5-inch LF driver · Prestige series
SEAS H1869-08 L16RNX/T 8Ω
8 Ω
No current price
- Fs
- 32Hz
- Xmax
- 7mm
- SPL
- 84dB
- Pe
- –
- BL
- 8.7T·m
- Vd
- 73cm³
- Qts
- 0.33
- Vas
- 18L

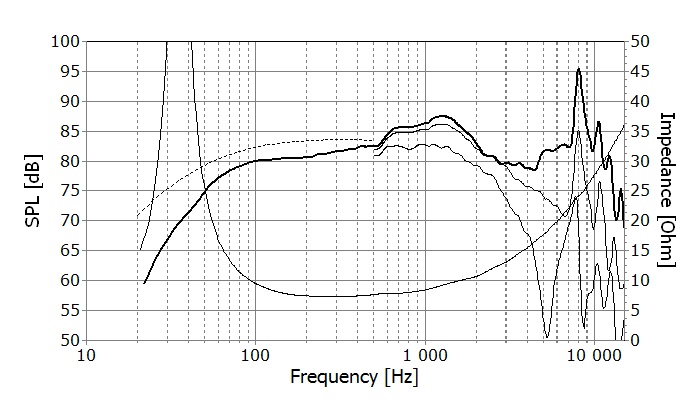

Published graphs
SEAS H1869-08 L16RNX/T is a 5-inch 8 ohm LF driver. The validated T/S data includes Fs 32 Hz, Qts 0.33, Vas 18 L, Xmax 7 mm, sensitivity 84.3 dB, plus 73 cm³ Vd and 91 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 32Hz
- Qts
- 0.33
- Qes
- 0.35
- Qms
- 5.5
- Vas
- 18L
- Re
- 6.4Ω
Motor and cone
- BL
- 8.7T·m
- Sd
- 104cm²
- Mms
- 21g
- Xmax
- 7mm
- Vd †
- 73cm³
Power and response
- Sensitivity †
- 84.3dB
- Impedance
- 8Ω
- EBP †
- 91 · Sealed or vented
Other published values
- Cms
- 1.20mm/N
- Rms
- 0.76kg/s
† Calculated by bits from the published values
What this validation status means
Everything else SEAS lists
LF · Primary · 5″
- BL
- 8.7T·m
- Fs
- 32Hz
- Re
- 6.4Ω
- Sd
- 104cm²
- Cms
- 1.20mm/N
- Mms
- 21g
- Qes
- 0.35
- Qms
- 5.5
- Qts
- 0.33
- Rms
- 0.76kg/s
- SPL
- 84.3dB
- Vas
- 18L
- Xmax
- 7mm
- Impedance
- 8Ω
- Calculated sensitivity †
- 84.3dB
02
Compare
Same-size drivers, compared with the H1869-08 L16RNX/T. Clear differences are green when better and red when worse.
This driverH1869-08 L16RNX/T
Best price
–
Fs
32 Hz
Qts
0.33
Vas
18 L
BL
8.7 T·m
Xmax
7 mm
Sensitivity
84.3 dB
Power
–
HiViF6
£42.64Fs45 Hz +41%, worse
Qts0.35 +6%
Vas16.4 L −9%
BL9 T·m +3%
Xmax4.3 mm −39%, worse
Sensitivity88 dB +3.7, better
Eighteen Sound5W430
£44.95Fs52 Hz +63%, worse
Qts0.32 −3%
Vas15 L −17%, better
BL6.3 T·m −28%, worse
Xmax6 mm −14%, worse
Sensitivity89.7 dB +5.4, better
Sica6 H 1.5 CP
£56.26Fs46 Hz +44%, worse
Qts0.35 +6%
Vas16.6 L −8%
BL8.4 T·m −4%
Xmax6 mm −14%, worse
Sensitivity88.3 dB +4, better
Beyma5P200FE
£63.23Fs72 Hz +125%, worse
Qts0.33 –
Vas5.7 L −68%, better
BL8.5 T·m –
Xmax5.7 mm −19%, worse
Sensitivity89.9 dB +5.6, better
SB AcousticsSB15CRC30-4
£81.08Fs37 Hz +16%, worse
Qts0.32 −3%
Vas17.3 L −4%
BL4.5 T·m −48%, worse
Xmax11 mm +57%, better
Sensitivity85.9 dB +1.6
MarkaudioPLUVIA 11
£87.50Fs39 Hz +22%, worse
Qts0.29 −11%, better
Vas24.8 L +38%, worse
BL6.6 T·m −25%, worse
Xmax7 mm –
Sensitivity88.3 dB +4, better
MarkaudioALPAIR 11 MS
£90.00Fs44 Hz +37%, worse
Qts0.34 +4%
Vas17.7 L –
BL7.8 T·m −10%, worse
Xmax8 mm +14%, better
Sensitivity87.6 dB +3.3, better
CIAREHWG130
£92.21Fs40 Hz +25%, worse
Qts0.28 −15%, better
Vas12.5 L −31%, better
BL7.8 T·m −10%, worse
Xmax6.5 mm −7%
Sensitivity86.3 dB +2, better
SB AcousticsMR13PNW-8
£115.00Fs47 Hz +47%, worse
Qts0.30 −9%
Vas12.9 L −28%, better
BL6.2 T·m −29%, worse
Xmax6 mm −14%, worse
Sensitivity88.2 dB +3.9, better
SB AcousticsMR13P-8
£135.77Fs45 Hz +41%, worse
Qts0.31 −6%
Vas12.5 L −31%, better
BL6.1 T·m −30%, worse
Xmax6 mm −14%, worse
Sensitivity87.4 dB +3.1, better
Scanspeak15W/8531K00
£150.70Fs39 Hz +22%, worse
Qts0.38 +15%, worse
Vas16.7 L −7%
BL6.6 T·m −24%, worse
Xmax6.5 mm −7%
Sensitivity85.8 dB +1.5
SB AcousticsMR16PNW-8
£162.17Fs31 Hz −3%
Qts0.32 −3%
Vas44.8 L +149%, worse
BL6.5 T·m −25%, worse
Xmax6.2 mm −11%, worse
Sensitivity88 dB +3.7, better
Scanspeak15W/4531G00
£170.71Fs40 Hz +25%, worse
Qts0.32 −3%
Vas15.8 L −12%, better
BL5.7 T·m −34%, worse
Xmax6.5 mm −7%
Sensitivity86.8 dB +2.5, better
Scanspeak15M/8631G00
£170.71Fs42 Hz +31%, worse
Qts0.35 +6%
Vas16.2 L −10%, better
BL6.8 T·m −22%, worse
Xmax3 mm −57%, worse
Sensitivity87.1 dB +2.8, better
PurifiPTT5.25X08-NAA-05
£341.46Fs30 Hz −6%
Qts0.30 −9%
Vas12.4 L −31%, better
BL9.1 T·m +5%
Xmax9.8 mm +40%, better
Sensitivity82.2 dB −2.1, worse
£426.83
Fs36 Hz +13%, worse
Qts0.34 +3%
Vas17 L −6%
BL7.6 T·m −13%, worse
Xmax7 mm –
Sensitivity85.5 dB +1.2
No current price
Fs37 Hz +16%, worse
Qts0.33 –
Vas15 L −17%, better
BL5.3 T·m −39%, worse
Xmax7 mm –
Sensitivity85 dB +0.7
No current price
Fs39 Hz +22%, worse
Qts0.35 +6%
Vas14 L −22%, better
BL7.3 T·m −16%, worse
Xmax7 mm –
Sensitivity85.1 dB +0.8
PRV Audio6MB550FT-4
No current priceFs86 Hz +170%, worse
Qts0.34 +3%
Vas6.6 L −63%, better
BL8.6 T·m –
Xmax5.4 mm −23%, worse
Sensitivity92.9 dB +8.6, better
Audio Technology6 A 77 20 06 SD
No current priceFs34 Hz +6%
Qts0.32 −3%
Vas44 L +144%, worse
BL8 T·m −8%
Xmax8 mm +14%, better
Sensitivity88.6 dB +4.3, better
No photo
PHL Audio900ND
No current priceFs65 Hz +103%, worse
Qts0.36 +9%
Vas7.8 L −57%, better
BL8.1 T·m −7%
Xmax6.5 mm −7%
Sensitivity89.3 dB +5, better
PeerlessNSM-0515R00-04
No current priceFs110 Hz +244%, worse
Qts0.30 −9%
Vas2.1 L −88%, better
BL8.7 T·m –
Xmax6.0 mm −15%, worse
Sensitivity91.6 dB +7.3, better
WavecorWF152BD08
No current priceFs46 Hz +44%, worse
Qts0.35 +6%
Vas11.5 L −36%, better
BL8 T·m −8%
Xmax4.5 mm −36%, worse
Sensitivity87 dB +2.7, better
WavecorWF152BD16
No current priceFs46 Hz +44%, worse
Qts0.35 +6%
Vas11.5 L −36%, better
BL8 T·m −8%
Xmax4.5 mm −36%, worse
Sensitivity87 dB +2.7, better
HiViM5A
No current priceFs48 Hz +50%, worse
Qts0.34 +3%
Vas11.2 L −38%, better
BL7.6 T·m −13%, worse
Xmax2.7 mm −61%, worse
Sensitivity87.4 dB +3.1, better
Sica6 N 2 PL
No current priceFs68 Hz +113%, worse
Qts0.33 –
Vas8.7 L −52%, better
BL9.5 T·m +9%
Xmax3.5 mm −50%, worse
Sensitivity90.8 dB +6.5, better
Sica6 NR 2 PL
No current priceFs61 Hz +89%, worse
Qts0.33 –
Vas9.4 L −48%, better
BL9.9 T·m +13%, better
Xmax4 mm −43%, worse
Sensitivity89.9 dB +5.6, better
HiViS5N
No current priceFs49 Hz +53%, worse
Qts0.34 +3%
Vas8.9 L −51%, better
BL7.7 T·m −11%, worse
Xmax2.7 mm −61%, worse
Sensitivity86.8 dB +2.5, better
No photo
PHL Audio900
No current priceFs65 Hz +103%, worse
Qts0.37 +12%, worse
Vas7.8 L −57%, better
BL8 T·m −8%
Xmax6.5 mm −7%
Sensitivity89.2 dB +4.9, better
