Overview
LF DriverNSM series
Peerless

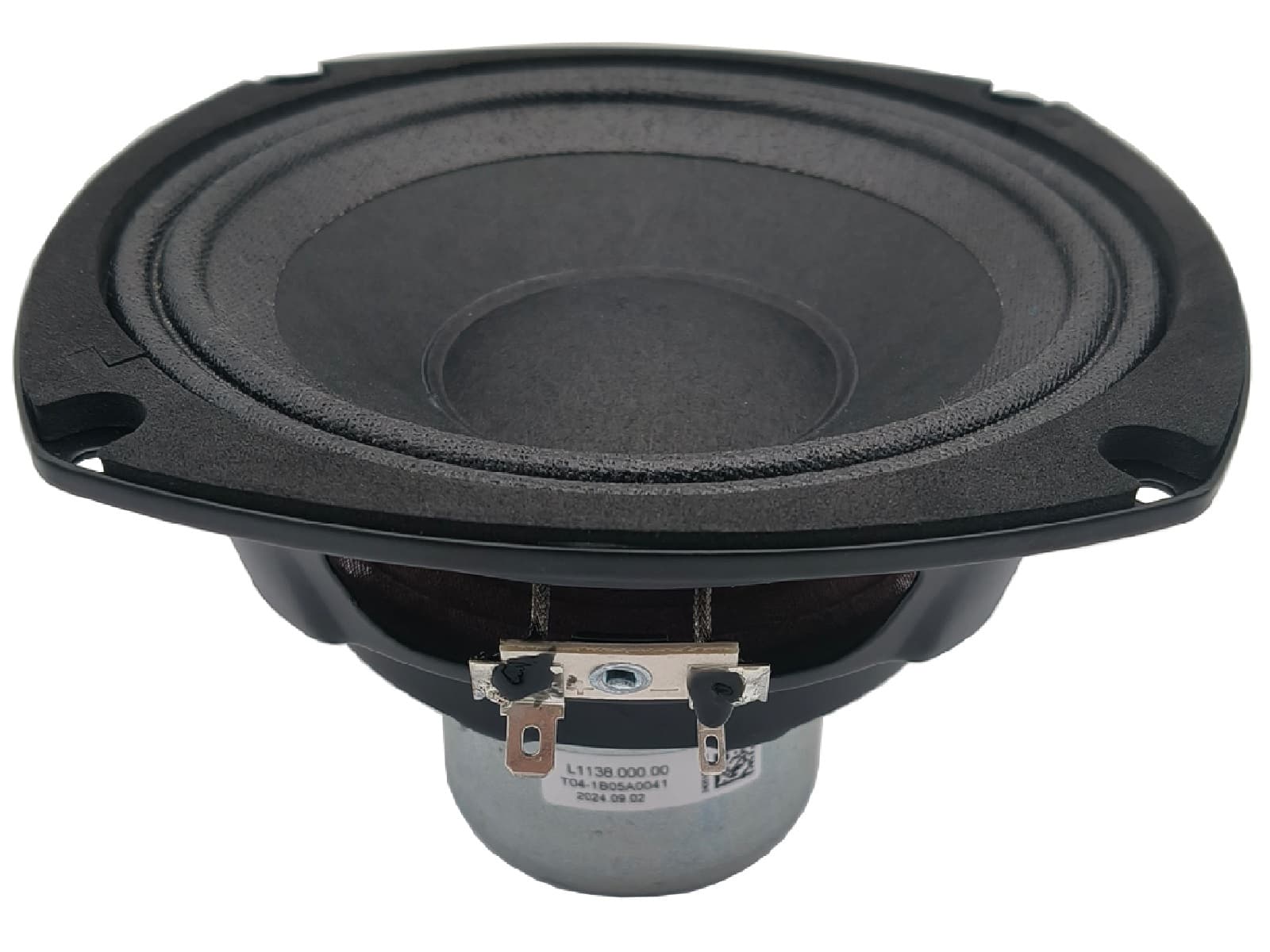

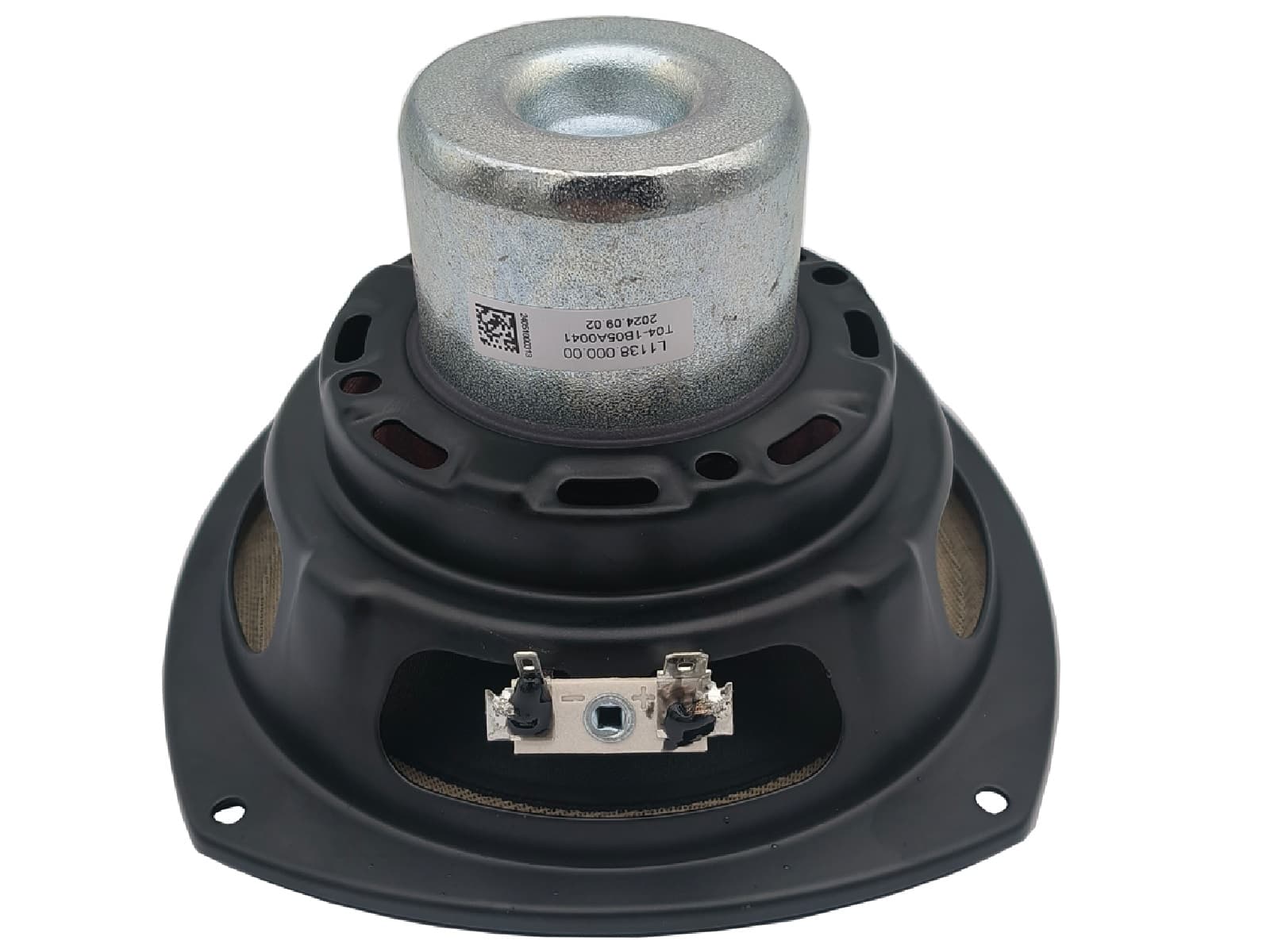

Peerless NSM-0515R00-04
Peerless NSM-0515R00-04 is a 5.25" 4 ohm LF driver rated at 130W RMS. The validated T/S data includes Fs 110Hz, Qts 0.30, Vas 2.1L, Xmax 6.0mm, sensitivity 91.6dB, plus 56cm³ Vd and 353 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
5.25"
Impedance
4Ω
RMS Power
130W
Sensitivity
91.6dB
EBP
353
Vented alignment
Vd
56cm³
T/S Parameters
Valid
Fs110Hz
Qts0.30
Qes0.31
Qms7.3
Vas2.1L
Re2.7Ω
Le0.07mH
BL8.7Tm
Sd94cm²
Mms12g
Xmax6.0mm
SPL92dB
Power130W
Impedance4Ω
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight0.7kg
