5-inch LF driver · Flexunits series · 150 W

Audio Technology 5 H 52 17 06 SD 4Ω

Name: Audio Technology 5 H 52 17 06 SD 4 Ohm
Brand: Audio Technology
SKU: 5 H 52 17 06 SD

4 Ω

No current price

View offers

Open in 00 Simulator

Fs: 36Hz
Xmax: 6.3mm
SPL: 89dB
Pe: 150W
BL: 6.6T·m
Vd: 86cm³
Qts: 0.28
Vas: 34L

See all 20 specs

Specifications

Published by Audio Technology

Manufacturer page

Datasheet PDF

Audio Technology 5 H 52 17 06 SD is a 5-inch 4 ohm LF driver rated at 150 W RMS. The validated T/S data includes Fs 36 Hz, Qts 0.28, Vas 34 L, Xmax 6.3 mm, sensitivity 88.8 dB, plus 86 cm³ Vd and 109 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.

The published T/S values agree with each other

Thiele/Small

Fs: 36Hz
Qts: 0.28
Qes: 0.33
Qms: 1.8
Vas: 34L
Re: 4.2Ω
Le: 0.15mH

Motor and cone

BL: 6.6T·m
Sd: 137cm²
Mms: 15g
Xmax: 6.3mm
Vd †: 86cm³

Power and response

Sensitivity †: 88.8dB
Manufacturer sensitivity: 89dB
Power: 150W
Impedance: 4Ω
EBP †: 109 · Leans vented

Other published values

Cms: 1.28mm/N
Rms: 1.90kg/s
Xmech: 32

† Calculated by bits from the published values

What this validation status means

Everything else Audio Technology lists

LF · Primary · 5″

BL: 6.6T·m
Fs: 36Hz
Le: 0.15mH
Re: 4.2Ω
Sd: 137cm²
Cms: 1.28mm/N
Mms: 15g
Qes: 0.33
Qms: 1.8
Qts: 0.28
Rms: 1.90kg/s
SPL: 88.8dB
Vas: 34L
Xmax: 6.3mm
Xmech: 32
Power: 150W
Impedance: 4Ω
Sensitivity: 89dB
Calculated sensitivity †: 88.8dB
Manufacturer sensitivity: 89dB

Compare

Same-size drivers, compared with the 5 H 52 17 06 SD. Clear differences are green when better and red when worse.

This driver5 H 52 17 06 SD

Best price

–

36 Hz

Qts

0.28

Vas

34 L

6.6 T·m

Xmax

6.3 mm

Sensitivity

88.8 dB

Power

150 W

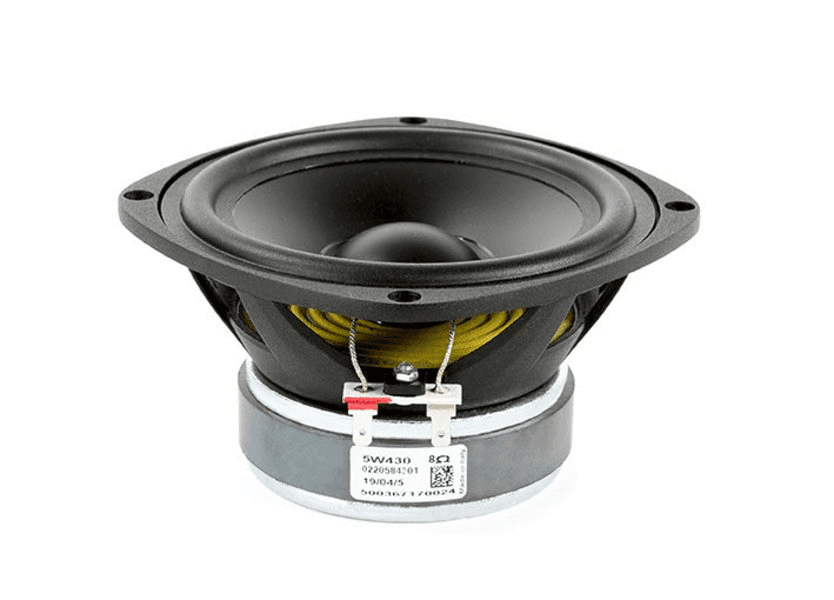

Eighteen Sound5W430

£44.95

Fs52 Hz +44%

Qts0.32 +14%

Vas15 L −56%

BL6.3 T·m −5%

Xmax6 mm −5%

Sensitivity89.7 dB +0.9

SB AcousticsSB16PFC25-4-COAX

£48.11

Fs36 Hz –

Qts0.31 +11%

Vas31.3 L −8%

BL5.1 T·m −23%

Xmax4.7 mm −26%

Sensitivity88.2 dB −0.6

SB AcousticsSB16PFCR25-4-COAX

£49.62

Fs36 Hz –

Qts0.31 +11%

Vas31.3 L −8%

BL5.1 T·m −23%

Xmax4.7 mm −26%

Sensitivity88.2 dB −0.6

SB AcousticsSB17NRXC35-4

£58.71

Fs35 Hz –

Qts0.32 +14%

Vas35.2 L +4%

BL4.8 T·m −27%

Xmax5.5 mm −13%

Sensitivity88.5 dB –

SB AcousticsSB17NRXC35-8

£59.13

Fs32 Hz −11%

Qts0.34 +21%

Vas44.5 L +31%

BL5.9 T·m −11%

Xmax5.5 mm −13%

Sensitivity88.1 dB −0.7

SB AcousticsSB17NBAC35-4

£65.93

Fs30 Hz −17%

Qts0.29 +4%

Vas42.6 L +25%

BL4.9 T·m −26%

Xmax11 mm +75%

Sensitivity87.7 dB −1.1

SB AcousticsSB17NAC35-4

£71.77

Fs32 Hz −11%

Qts0.32 +14%

Vas33 L –

BL5.2 T·m −21%

Xmax5.5 mm −13%

Sensitivity87.1 dB −1.7

SB AcousticsSB17NRX2L35-8

£71.77

Fs38 Hz +5%

Qts0.28 –

Vas26.1 L −23%

BL7.8 T·m +19%

Xmax9.6 mm +52%

Sensitivity88.7 dB –

SB AcousticsSB17CAC35-4

£82.13

Fs30 Hz −18%

Qts0.29 +4%

Vas37.8 L +11%

BL5.3 T·m −20%

Xmax11 mm +75%

Sensitivity87 dB −1.8

SB AcousticsSB17CRC35-4

£85.53

Fs32 Hz −13%

Qts0.32 +14%

Vas35.5 L +4%

BL5 T·m −24%

Xmax11 mm +75%

Sensitivity87 dB −1.8

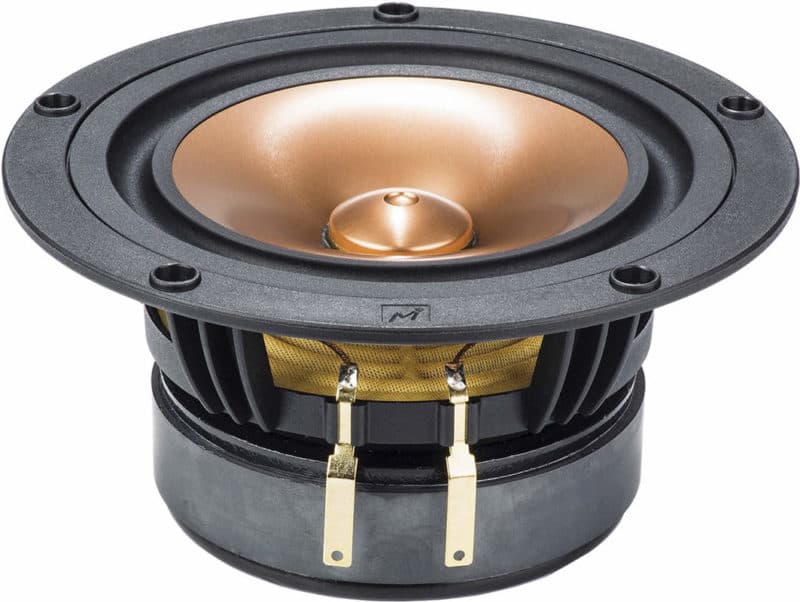

MarkaudioPLUVIA 11

£87.50

Fs39 Hz +9%

Qts0.29 +5%

Vas24.8 L −27%

BL6.6 T·m –

Xmax7 mm +11%

Sensitivity88.3 dB −0.5

SB AcousticsMR13PNW-8

£115.00

Fs47 Hz +31%

Qts0.30 +7%

Vas12.9 L −62%

BL6.2 T·m −6%

Xmax6 mm −5%

Sensitivity88.2 dB −0.6

SB AcousticsMR13P-8

£135.77

Fs45 Hz +25%

Qts0.31 +11%

Vas12.5 L −63%

BL6.1 T·m −8%

Xmax6 mm −5%

Sensitivity87.4 dB −1.4

SB AcousticsMR16P-8

£160.47

Fs32 Hz −11%

Qts0.30 +7%

Vas44.3 L +30%

BL6.5 T·m –

Xmax6.2 mm –

Sensitivity88.6 dB –

SB AcousticsMR16PNW-8

£160.47

Fs31 Hz −14%

Qts0.32 +14%

Vas44.8 L +32%

BL6.5 T·m –

Xmax6.2 mm –

Sensitivity88 dB −0.8

SB AcousticsMR16P-4

£160.47

Fs31 Hz −14%

Qts0.25 −11%

Vas47.2 L +39%

BL5.2 T·m −21%

Xmax6.2 mm –

Sensitivity89.4 dB +0.6

SB AcousticsMR16PNW-4

£160.47

Fs31 Hz −14%

Qts0.25 −11%

Vas47.2 L +39%

BL5.2 T·m −21%

Xmax6.2 mm –

Sensitivity89.4 dB +0.6

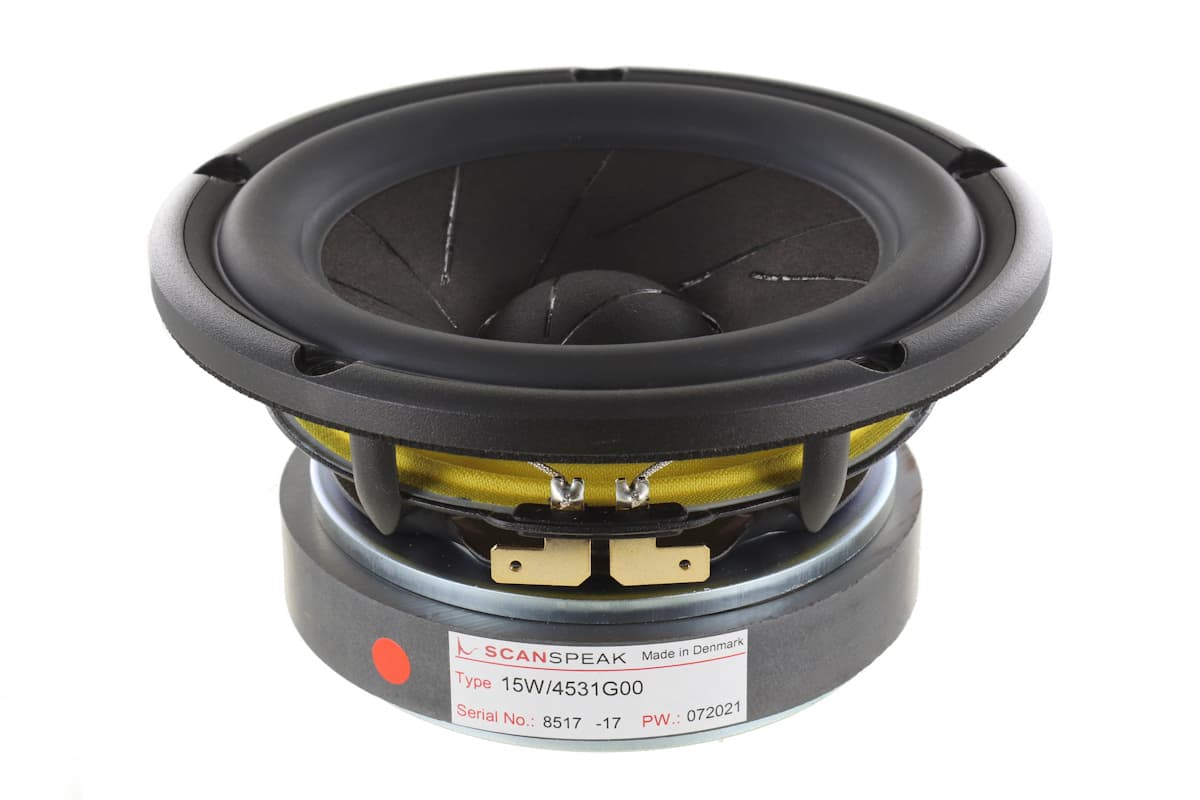

Scanspeak15W/4531G00

£168.92

Fs40 Hz +11%

Qts0.32 +14%

Vas15.8 L −54%

BL5.7 T·m −14%

Xmax6.5 mm +3%

Sensitivity86.8 dB −2

Tang BandW4-2315

£176.57

Fs65 Hz +81%

Qts0.29 +4%

Vas5.0 L −85%

BL6.2 T·m −6%

Xmax2.8 mm −56%

Sensitivity88.5 dB –

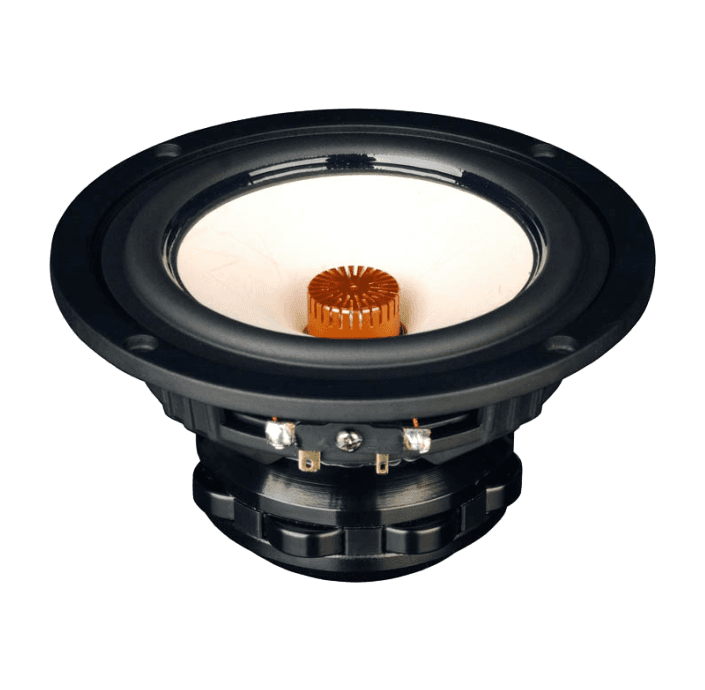

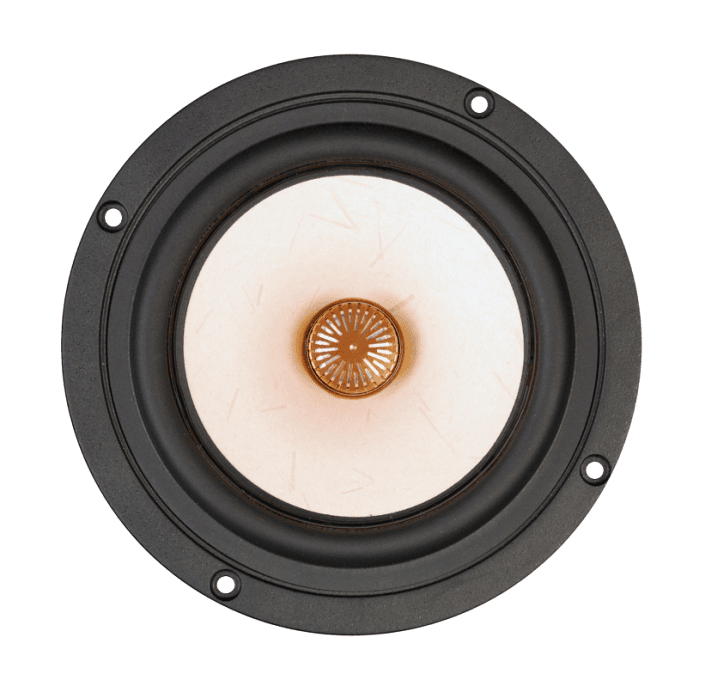

Tang BandW5-1880

£211.20

Fs48 Hz +33%

Qts0.32 +14%

Vas26.5 L −22%

BL5.5 T·m −17%

Xmax5 mm −21%

Sensitivity90.9 dB +2.1

Beyma5CX200ND

£220.02

Fs75 Hz +108%

Qts0.28 –

Vas9.1 L −73%

BL7.3 T·m +11%

Xmax5.7 mm −10%

Sensitivity93.4 dB +4.6

SB AcousticsMR16TX-8

£249.00

Fs35 Hz –

Qts0.31 +11%

Vas38.9 L +14%

BL6.6 T·m –

Xmax5.7 mm −10%

Sensitivity89.2 dB –

SB AcousticsMR13TX-4

£253.40

Fs44 Hz +22%

Qts0.27 −4%

Vas12.2 L −64%

BL4.9 T·m −26%

Xmax6 mm −5%

Sensitivity87.7 dB −1.1

AccutonC158-6-851

£295.64

Fs31 Hz −14%

Qts0.28 –

Vas25.7 L −24%

BL8.7 T·m +32%

Xmax5 mm −21%

Sensitivity86.2 dB −2.6

Tang BandW4-937SF

No current price

Fs65 Hz +81%

Qts0.26 −7%

Vas4.9 L −86%

BL6.7 T·m –

Xmax4.5 mm −29%

Sensitivity88.1 dB −0.7

Audio Technology6 H 52 17 06 SD

No current price

Fs33 Hz −8%

Qts0.35 +25%

Vas47 L +38%

BL6.6 T·m –

Xmax6.3 mm –

Sensitivity88.1 dB −0.7

SB AcousticsSB17BAC35-8-COAX

No current price

Fs35 Hz –

Qts0.33 +18%

Vas33.1 L –

BL5.7 T·m −14%

Xmax3.1 mm −51%

Sensitivity88.1 dB −0.7

WavecorWF152BD06

No current price

Fs45 Hz +24%

Qts0.29 +4%

Vas11.5 L −66%

BL6.3 T·m −4%

Xmax4.5 mm −29%

Sensitivity87.3 dB −1.5

WavecorWF152BD14

No current price

Fs45 Hz +24%

Qts0.29 +4%

Vas11.5 L −66%

BL6.3 T·m −4%

Xmax4.5 mm −29%

Sensitivity87.3 dB −1.5

PeerlessNSM-0515R00-04

No current price

Fs110 Hz +206%

Qts0.30 +7%

Vas2.1 L −94%

BL8.7 T·m +32%

Xmax6.0 mm −5%

Sensitivity91.6 dB +2.8

Search similar

Tune the match

Choose the published values that matter to your design. Size stays matched to this driver.

Qts

Qes

Vas

Xmax

Where to buy

Prices for delivery to the UK, including VAT. How prices work
