Manufacturer response and impedance data, with source and trace details below. The left and right arrow keys read every shown curve at a frequency, a twelfth of an octave at a time, or an octave with Shift. Escape clears the reading.
Curve provenanceInspect 2 traces
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
spl
Frequency response
240 plotted pointsMedium confidence1,153 selected pixels of 1,906 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence2,632 selected pixels of 2,632

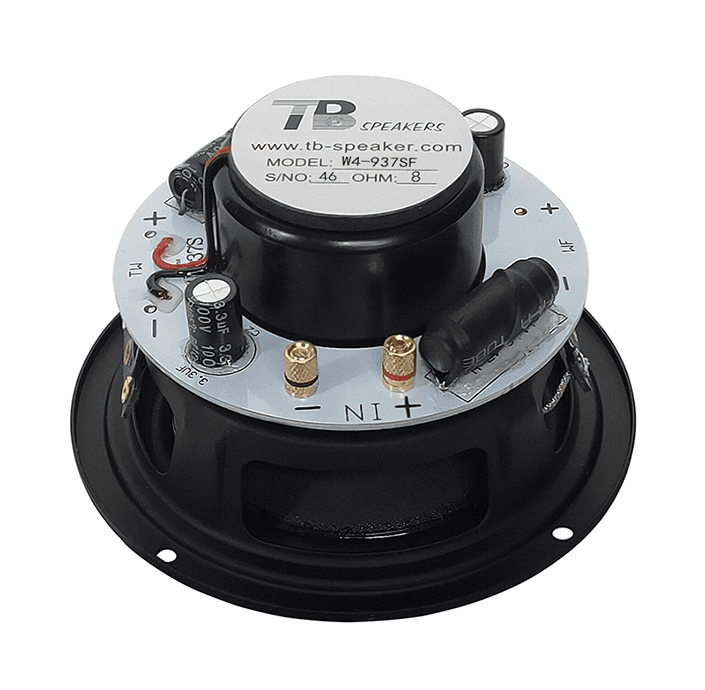

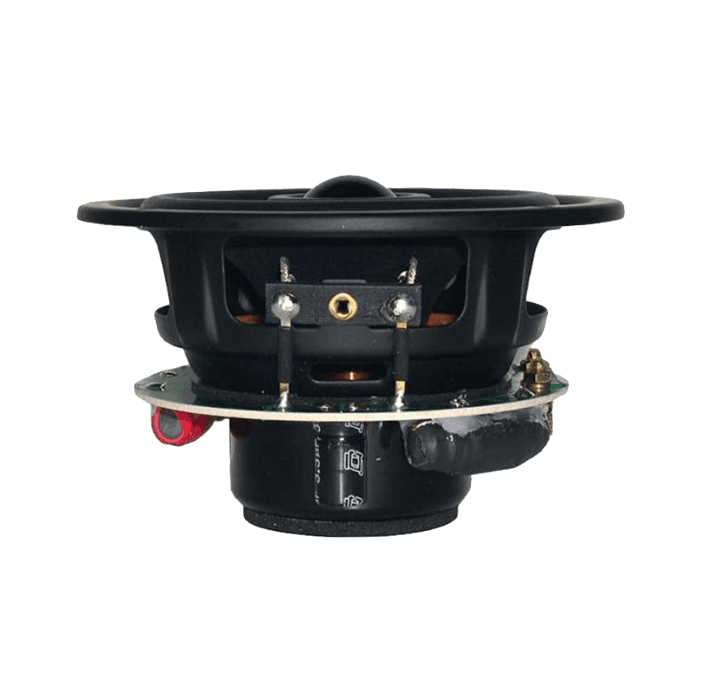

Tang Band W4-937SF is a 4-inch 8 ohm LF driver rated at 25 W RMS. The validated T/S data includes Fs 65 Hz, Qts 0.26, Vas 4.9 L, Xmax 4.5 mm, sensitivity 88.1 dB, plus 26 cm³ Vd and 197 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 65Hz
- Qts
- 0.26
- Qes
- 0.33
- Qms
- 1.2
- Vas
- 4.9L
- Re
- 6.8Ω
- Le
- 0.49mH
Motor and cone
- BL
- 6.7T·m
- Sd
- 57cm²
- Mms
- 5g
- Xmax
- 4.5mm
- Vd †
- 26cm³
Power and response
- Sensitivity †
- 88.1dB
- Manufacturer sensitivity
- 88dB
- Power
- 25W
- Impedance
- 8Ω
- EBP †
- 197 · Leans vented
Other published values
- Power Peak
- 50
Excursion and motor values come from the LF section; the frequency range spans every section.
† Calculated by bits from the published values
What this validation status means
Components and manufacturer details
LF · Primary · 4″
- BL
- 6.7T·m
- Fs
- 65Hz
- Le
- 0.49mH
- Re
- 6.8Ω
- Sd
- 57cm²
- Mms
- 5g
- Qes
- 0.33
- Qms
- 1.2
- Qts
- 0.26
- SPL
- 88.1dB
- Vas
- 4.9L
- Xmax
- 4.5mm
- Power
- 25W
- Impedance
- 8Ω
- Power Peak
- 50
- Sensitivity
- 88dB
- Calculated sensitivity †
- 88.1dB
- Manufacturer sensitivity
- 88dB
