4-inch LF driver · HWL series · 25 mm voice coil · 50 W

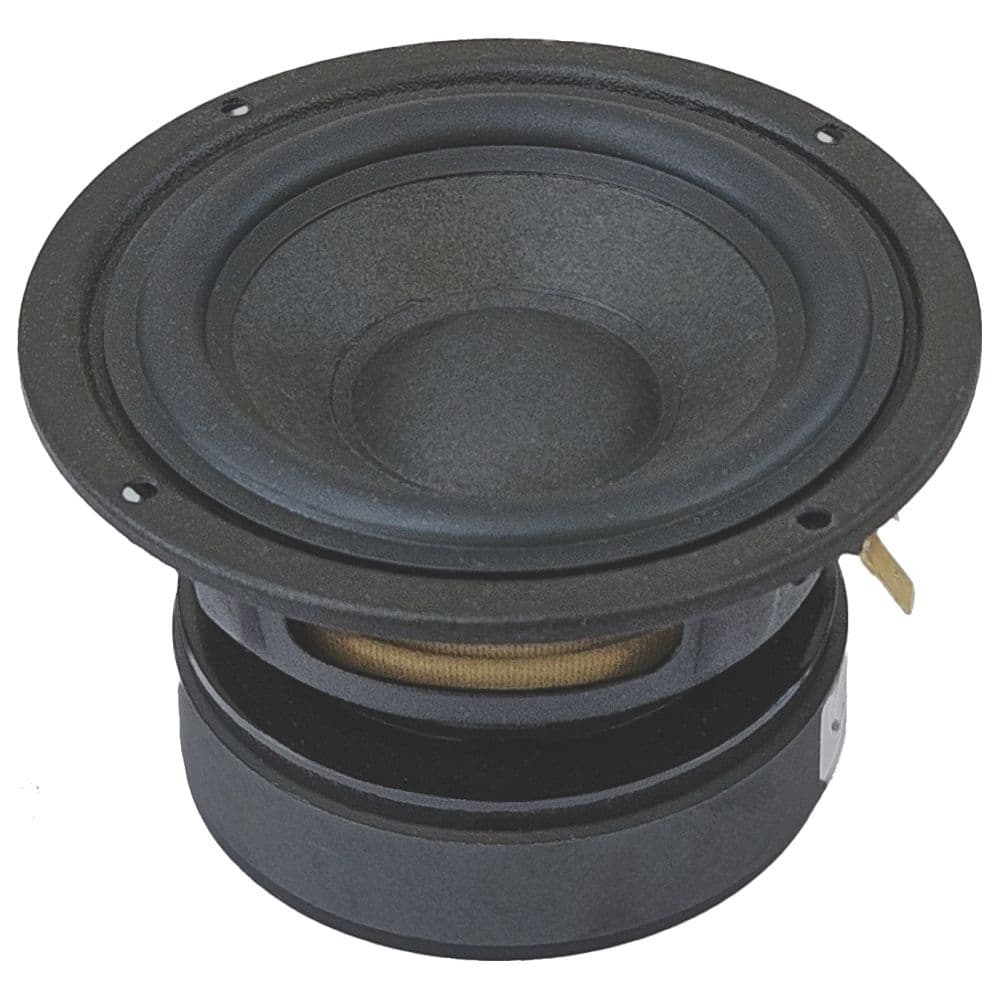

CIARE HWL100 8Ω

Name: CIARE HWL100 8 Ohm
Brand: CIARE
SKU: HWL100

8 Ω

No price for delivery to the UK

All 1 offer

Open in 00 Simulator

Fs: 70Hz
Xmax: 4.3mm
SPL: 88dB
Pe: 50W
BL: 5.6T·m
Vd: 22cm³
Qts: 0.31
Vas: 4L

See all 26 specs

Curve provenanceInspect 1 trace

These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works

frequency response
Frequency response
Trace datasheet-response-trace-poc/v1
240 plotted pointsMedium confidence1,594 selected pixels of 1,594
Manufacturer datasheet, page 1

Specifications

Published by CIARE

Manufacturer page

Datasheet PDF

CIARE HWL100 is a 4-inch 8 ohm LF driver rated at 50 W RMS. The validated T/S data includes Fs 70 Hz, Qts 0.31, Vas 4.3 L, Xmax 4.3 mm, sensitivity 88 dB, plus 22 cm³ Vd and 189 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.

The published T/S values agree with each other

Thiele/Small

Fs: 70Hz
Qts: 0.31
Qes: 0.37
Qms: 2
Vas: 4.3L
Re: 6Ω
Le: 0.37mH

Motor and cone

BL: 5.6T·m
Sd: 50cm²
Mms: 4g
Xmax: 4.3mm
Vd †: 22cm³
Voice coil: 25mm

Power and response

Sensitivity †: 88dB
Manufacturer sensitivity: 88dB
Power: 50W
Nominal power: 50W
Impedance: 8Ω
EBP †: 189 · Leans vented

Size and mounting

Diameter: 102mm
Cutout: 91mm
Bolt circle: 116mm
Depth: 56mm
Weight: 1.0kg

Other published values

Cms: 1.22mm/N
Power Program: 150

† Calculated by bits from the published values

What this validation status means

Everything else CIARE lists

LF · Primary · 4″

BL: 5.6T·m
Fs: 70Hz
Le: 0.37mH
Re: 6Ω
Sd: 50cm²
Cms: 1.22mm/N
Mms: 4g
Qes: 0.37
Qms: 2
Qts: 0.31
SPL: 88dB
Vas: 4.3L
Xmax: 4.3mm
Power: 50W
Impedance: 8Ω
Sensitivity: 88dB
Nominal power: 50W
Power Program: 150
Calculated sensitivity †: 88dB
Manufacturer sensitivity: 88dB
Voice coil: 25mm
Weight: 1.0kg
Diameter: 102mm
Depth: 56mm
Cutout: 91mm
Bolt circle: 116mm

Compare

Same-size drivers, compared with the HWL100. Clear differences are green when better and red when worse.

This driverHWL100

Best price

–

70 Hz

Qts

0.31

Vas

4.3 L

5.6 T·m

Xmax

4.3 mm

Sensitivity

88 dB

Power

50 W

Dayton AudioTCP115-4

£11.95

Fs54 Hz −23%

Qts0.35 +13%

Vas3.1 L −28%

BL5.2 T·m −7%

Xmax4 mm −7%

Sensitivity82.8 dB −5.2

Dayton AudioDS115-8

£20.18

Fs55 Hz −21%

Qts0.38 +23%

Vas4.3 L –

BL5.9 T·m +5%

Xmax4.1 mm −5%

Sensitivity84 dB −4

SB AcousticsSB13PFC25-4

£22.98

Fs44 Hz −37%

Qts0.29 −6%

Vas13.4 L +212%

BL5.3 T·m −5%

Xmax4.5 mm +5%

Sensitivity87.4 dB −0.6

SB AcousticsSB13PFCR25-4

£22.98

Fs44 Hz −37%

Qts0.29 −6%

Vas13.4 L +212%

BL5.3 T·m −5%

Xmax4.5 mm +5%

Sensitivity87.4 dB −0.6

SB AcousticsSB13PFC25-8

£22.98

Fs45 Hz −36%

Qts0.33 +6%

Vas13.4 L +212%

BL6.2 T·m +11%

Xmax4.5 mm +5%

Sensitivity87 dB −1

SB AcousticsSB13PFCR25-8

£22.98

Fs45 Hz −36%

Qts0.33 +6%

Vas13.4 L +212%

BL6.2 T·m +11%

Xmax4.5 mm +5%

Sensitivity87 dB −1

SB AcousticsSB12PAC25-4

£23.67

Fs53 Hz −25%

Qts0.31 –

Vas5.3 L +23%

BL4.3 T·m −22%

Xmax5 mm +16%

Sensitivity85.7 dB −2.3

SB AcousticsSB12PACR25-4

£23.67

Fs53 Hz −25%

Qts0.31 –

Vas5.3 L +23%

BL4.3 T·m −22%

Xmax5 mm +16%

Sensitivity85.7 dB −2.3

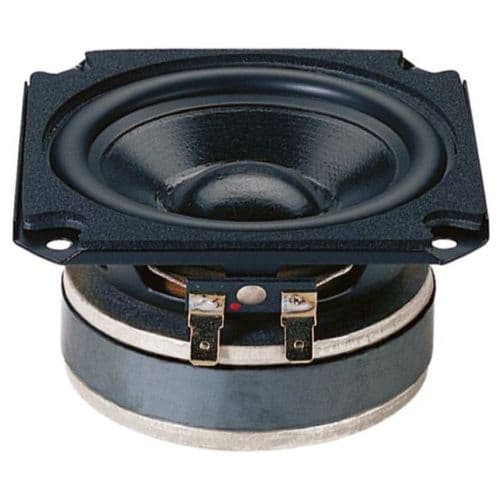

CIAREHW100

£27.63

Fs70 Hz –

Qts0.31 –

Vas4.3 L –

BL5.6 T·m –

Xmax4.3 mm –

Sensitivity88 dB –

Dayton AudioRS125-8

£37.39

Fs59 Hz −15%

Qts0.34 +10%

Vas4.8 L +11%

BL5.7 T·m –

Xmax4 mm −7%

Sensitivity85.8 dB −2.2

SB AcousticsSB12PFCR25-4-COAX

£41.40

Fs58 Hz −17%

Qts0.33 +6%

Vas4.8 L +12%

BL3.8 T·m −32%

Xmax5 mm +16%

Sensitivity86.2 dB −1.8

WavecorWF118WA07

£47.13

Fs56 Hz −20%

Qts0.36 +16%

Vas4.9 L +14%

BL4.5 T·m −20%

Xmax4 mm −7%

Sensitivity85.6 dB −2.4

SB AcousticsSB12PFC25-4-COAX

£47.68

Fs58 Hz −17%

Qts0.33 +6%

Vas4.8 L +12%

BL3.8 T·m −32%

Xmax5 mm +16%

Sensitivity86.2 dB −1.8

Dayton AudioCF120-4

£52.29

Fs53 Hz −24%

Qts0.28 −10%

Vas4.9 L +13%

BL4.9 T·m −12%

Xmax3.5 mm −19%

Sensitivity85.6 dB −2.4

SB AcousticsSB12PACR25-4-COAX

£52.54

Fs55 Hz −21%

Qts0.35 +13%

Vas4.3 L –

BL4 T·m −29%

Xmax5 mm +16%

Sensitivity84.8 dB −3.2

SB AcousticsSB15NRXC30-8

£54.13

Fs38 Hz −46%

Qts0.33 +6%

Vas20.7 L +381%

BL5.6 T·m –

Xmax5 mm +16%

Sensitivity87.1 dB −0.9

SEASH1152-08 CA12RCY

£79.46

Fs57 Hz −19%

Qts0.31 –

Vas5 L +16%

BL6.3 T·m +13%

Xmax3 mm −30%

Sensitivity86.1 dB −1.9

SEASH1455-08 ER15RLY

£80.27

Fs44 Hz −37%

Qts0.32 +3%

Vas15 L +249%

BL5.5 T·m –

Xmax5 mm +16%

Sensitivity87 dB −1

SEASH1520-08 U16RCY/P

£101.03

Fs36 Hz −49%

Qts0.32 +3%

Vas25 L +481%

BL6.3 T·m +13%

Xmax4 mm −7%

Sensitivity86.9 dB −1.1

Tang BandW3-1878

£125.60

Fs75 Hz +7%

Qts0.28 −10%

Vas3.1 L −28%

BL4.3 T·m −23%

Xmax4 mm −7%

Sensitivity87.9 dB –

SB AcousticsMW13PNW-8

£139.69

Fs41 Hz −41%

Qts0.31 –

Vas15 L +249%

BL5.7 T·m –

Xmax5 mm +16%

Sensitivity87 dB −1

SB AcousticsMW13P-8

£139.69

Fs42 Hz −41%

Qts0.30 −3%

Vas15 L +249%

BL5.7 T·m –

Xmax5 mm +16%

Sensitivity87.1 dB −0.9

Tang BandW5-1880

£209.33

Fs48 Hz −31%

Qts0.32 +3%

Vas26.5 L +516%

BL5.5 T·m –

Xmax5 mm +16%

Sensitivity90.9 dB +2.9

SB AcousticsMW13TX-8

£225.24

Fs40 Hz −43%

Qts0.32 +3%

Vas14.8 L +244%

BL5.7 T·m –

Xmax5 mm +16%

Sensitivity86.5 dB −1.5

Tang BandW4-657D

No current price

Fs70 Hz –

Qts0.32 +3%

Vas5.6 L +30%

BL5.6 T·m –

Xmax3.3 mm −23%

Sensitivity89.4 dB +1.4

Tang BandW3-1401SD

No current price

Fs75 Hz +7%

Qts0.31 –

Vas1.6 L −62%

BL5.6 T·m –

Xmax3.5 mm −19%

Sensitivity84.7 dB −3.3

WavecorWF120BD04

No current price

Fs62 Hz −12%

Qts0.37 +19%

Vas4.3 L –

BL4.5 T·m −20%

Xmax4 mm −7%

Sensitivity86 dB −2

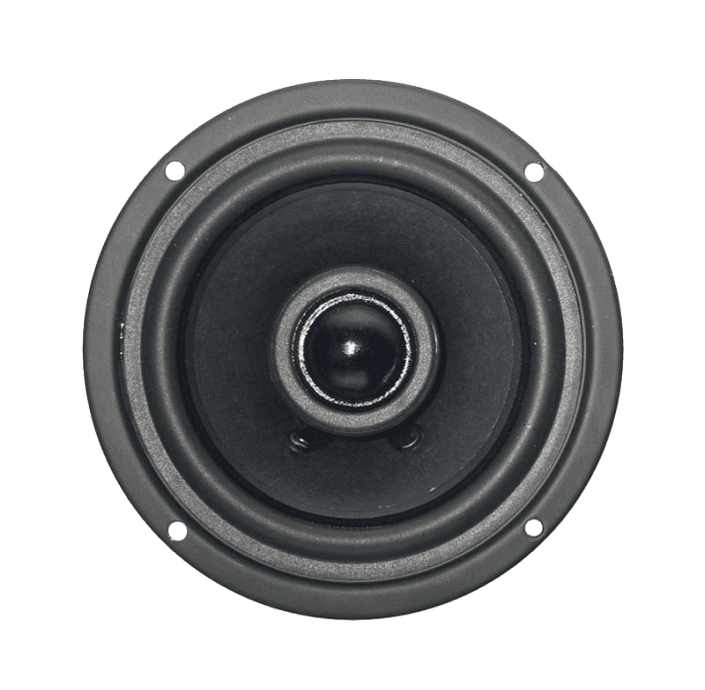

Tang BandW4-937SF
