LF DriverSB12 series
SB Acoustics
SB Acoustics SB12PACR25-4
SB Acoustics SB12PACR25-4 is a 4" 4 ohm LF driver rated at 30W RMS. The validated T/S data includes Fs 53Hz, Qts 0.31, Vas 5.3L, Xmax 10mm, sensitivity 85.7dB, plus 50cm³ Vd and 159 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £23.67.
Size
4"
Impedance
4Ω
RMS Power
30W
Sensitivity
85.7dB
87.0dBmanufacturer; using T/S-derived value (1.3dB delta).
EBP
159
Vented alignment
Vd
50cm³

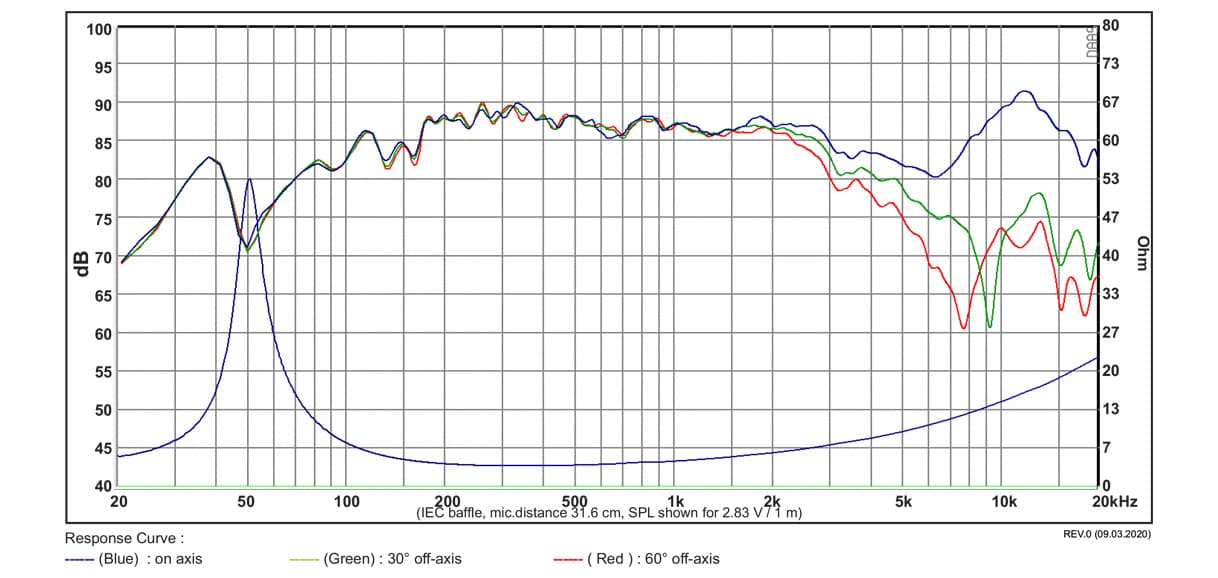

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
30 degrees240 ptsp1medium
60 degrees213 ptsp1medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
30 degrees
Frequency response
240 plotted pointsMedium confidence1,401 selected pixels of 7,001 - Trace datasheet-response-trace-poc/v1
60 degrees
Frequency response
213 plotted pointsMedium confidence766 selected pixels of 2,189
T/S Parameters
Valid
Fs53Hz
Qts0.31
Qes0.33
Qms5.0
Vas5.3L
Re3.1Ω
Le0.25mH
BL4.3Tm
Sd50cm²
Mms6g
Xmax10.0mm
SPL86dB
Power30W
Impedance4Ω
Voice Coil25mm
Flux Density1.03T
Pricing & availability
Price definitionsPrice movement
Best current price
£23.67
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight0.9kg
