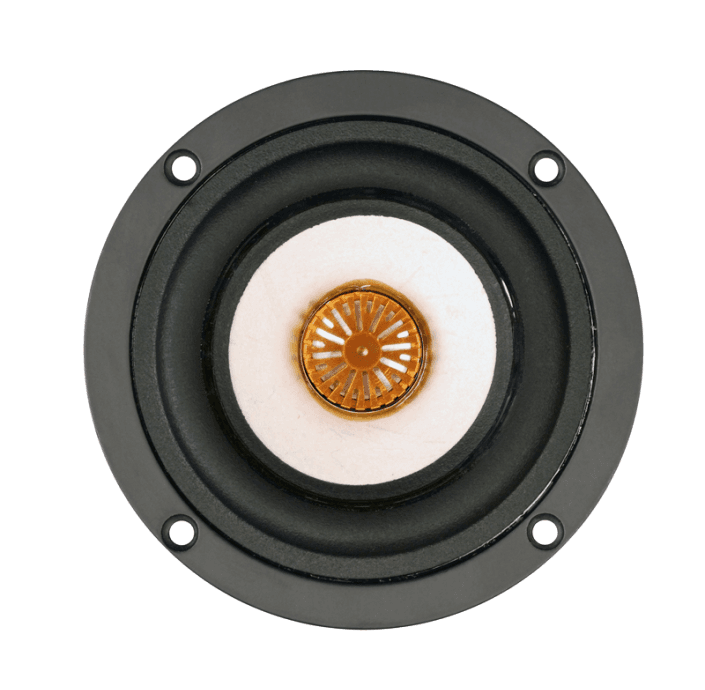

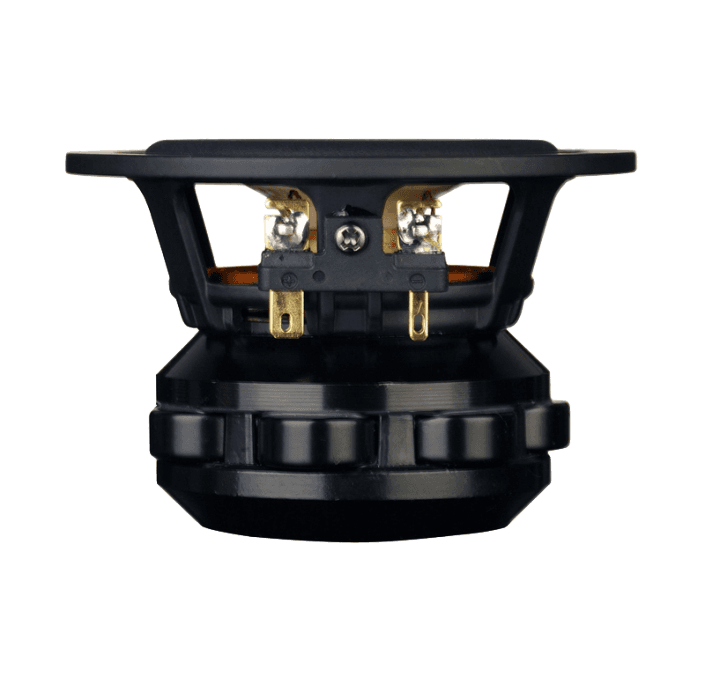

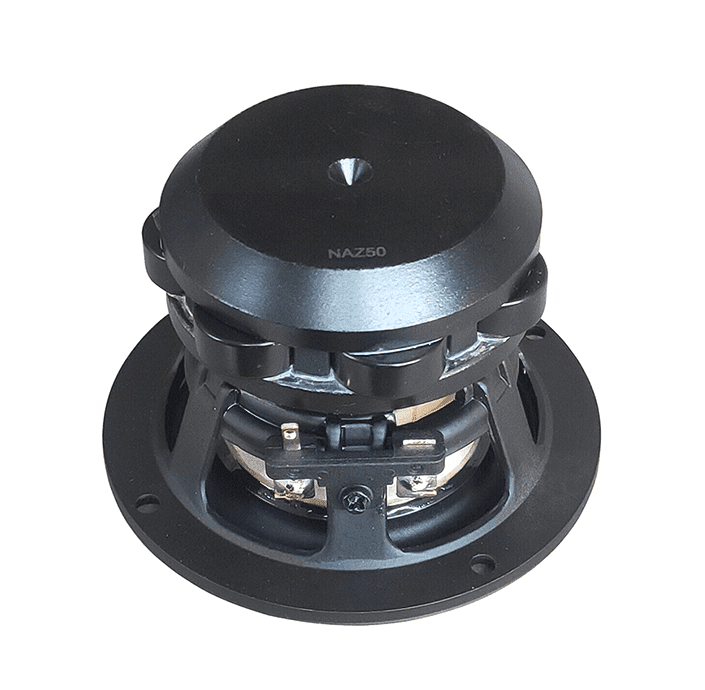

Tang Band W3-1878 8Ω
8 Ω
No price for delivery to the UK
- Fs
- 75Hz
- Xmax
- 4mm
- SPL
- 88dB
- Pe
- 12W
- BL
- 4.3T·m
- Vd
- 13cm³
- Qts
- 0.28
- Vas
- 3L
Manufacturer response and impedance data, with source and trace details below. The left and right arrow keys read every shown curve at a frequency, a twelfth of an octave at a time, or an octave with Shift. Escape clears the reading.
Curve provenanceInspect 2 traces
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
spl
Frequency response
240 plotted pointsMedium confidence1,179 selected pixels of 1,513 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence2,368 selected pixels of 2,368
Tang Band W3-1878 is a 3-inch 8 ohm LF driver rated at 12 W RMS. The validated T/S data includes Fs 75 Hz, Qts 0.28, Vas 3.1 L, Xmax 4 mm, sensitivity 87.9 dB, plus 13 cm³ Vd and 221 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £125.60.
The published T/S values agree with each other
Thiele/Small
- Fs
- 75Hz
- Qts
- 0.28
- Qes
- 0.34
- Qms
- 1.7
- Vas
- 3.1L
- Re
- 6.5Ω
- Le
- 0.023mH
Motor and cone
- BL
- 4.3T·m
- Sd
- 32cm²
- Mms
- 2g
- Xmax
- 4mm
- Vd †
- 13cm³
Power and response
- Sensitivity †
- 87.9dB
- Manufacturer sensitivity
- 88dB
- Power
- 12W
- Impedance
- 8Ω
- EBP †
- 221 · Leans vented
Other published values
- Power Peak
- 25
† Calculated by bits from the published values
What this validation status means
Everything else Tang Band lists
LF · Primary · 3″
- BL
- 4.3T·m
- Fs
- 75Hz
- Le
- 0.023mH
- Re
- 6.5Ω
- Sd
- 32cm²
- Mms
- 2g
- Qes
- 0.34
- Qms
- 1.7
- Qts
- 0.28
- SPL
- 87.9dB
- Vas
- 3.1L
- Xmax
- 4mm
- Power
- 12W
- Impedance
- 8Ω
- Power Peak
- 25
- Sensitivity
- 88dB
- Calculated sensitivity †
- 87.9dB
- Manufacturer sensitivity
- 88dB
