LF DriverNDI series
CIARE
CIARE NDI3.25
CIARE NDI3.25 is a 3.5" 8 ohm LF driver rated at 80W RMS. The validated T/S data includes Fs 77Hz, Qts 0.40, Vas 1.7L, Xmax 3.9mm, sensitivity 84.1dB, plus 11cm³ Vd and 160 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
3.5"
Impedance
8Ω
RMS Power
80W
Sensitivity
84.1dB
86.0dBmanufacturer; using T/S-derived value (1.9dB delta).
EBP
160
Vented alignment
Vd
11cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence1,253 selected pixels of 1,253
T/S Parameters
Valid
Fs77Hz
Qts0.40
Qes0.48
Qms2.3
Vas1.7L
Re5.8Ω
Le0.16mH
BL4.2Tm
Sd29cm²
Mms3g
Xmax3.9mm
SPL84dB
Power80W
Power Nominal40W
Impedance8Ω
F Low70Hz
F High20000Hz
Voice Coil25mm
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Diameter90.0mm
Overall Depth45.0mm
Cutout Diameter70.0mm
Bolt Circle Diameter83.5mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
CIARE
NDI3.25
3.5"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
5 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
Image unavailable
68%
Similarity
Wavecor
SW084OM01
3"
Xmax4.5mm+15%
Qts0.44+10%
BL3.6Tm-15%
Vas1.7L0%
Qes0.46-4%
58%
Similarity
Tang Band
W3-1876S
3"
Xmax4mm+3%
Qts0.43+7%
BL5.3Tm+26%
Vas0.9L-48%
Qes0.5+4%
58%
Similarity
Tang Band
W3-1876S
3"
Xmax4mm+3%
Qts0.43+7%
BL5.3Tm+26%
Vas0.9L-48%
Qes0.5+4%
53%
Similarity
Peerless
TG9FC02-04
4"
Xmax3mm-22%
Qts0.43+7%
BL3.9Tm-8%
Vas0.8L-50%
Qes0.52+9%
46%
Similarity

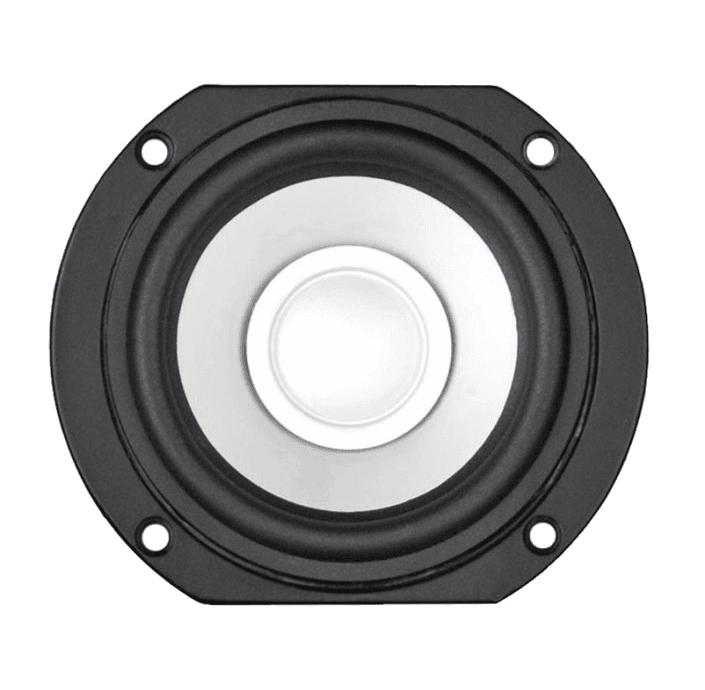

Tang Band
