Wavecor SW084OM02 8Ω
LF DriverMedia
Wavecor
SW084OM02
Image unavailable
Overview
LF DriverSW084OM series
Wavecor
Wavecor SW084OM02
Wavecor SW084OM02 is a 3" 8 ohm LF driver. The validated T/S data includes Fs 77Hz, Qts 0.53, Vas 1.7L, Xmax 4.5mm, sensitivity 83.4dB, plus 15cm³ Vd and 135 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
3"
Impedance
8Ω
Sensitivity
83.4dB
EBP
135
Vented alignment
Vd
15cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
FR040WA01 impedance240 ptsp2medium
FR040WA02 impedance240 ptsp2medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
FR040WA01 impedance
Impedance response
240 plotted pointsMedium confidence606 selected pixels of 606 - Trace datasheet-response-trace-poc/v1
FR040WA02 impedance
Impedance response
240 plotted pointsMedium confidence602 selected pixels of 602
T/S Parameters
Valid
Fs77Hz
Qts0.53
Qes0.57
Qms8.8
Vas1.7L
Re6.1Ω
BL4.6Tm
Sd34cm²
Mms4g
Xmax4.5mm
SPL83dB
Impedance8Ω
Voice Coil26mm
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Not enough T/S data
Missing Le, RMS power
BASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Not enough T/S data
Missing Le, RMS power
VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Not enough T/S data
Missing Le, RMS power
00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Diameter82.5mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Image unavailable
Reference
Wavecor
SW084OM02
3"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
Image unavailable
70%
Similarity
Wavecor
SW084OM01
3"
Xmax4.5mm0%
Qts0.44-17%
BL3.6Tm-22%
Vas1.7L0%
Qes0.46-19%
57%
Similarity
CIARE
NDI3.25
3.5"
Xmax3.9mm-13%
Qts0.4-25%
BL4.2Tm-8%
Vas1.7L0%
Qes0.48-16%
56%
Similarity
Visaton
FR 10
4"
Xmax4mm-11%
Qts0.54+2%
BL4.6Tm0%
Vas2.3L+35%
Qes0.7+23%
56%
Similarity
Visaton
FR 10 - 4 OHM
4"
Xmax4mm-11%
Qts0.54+2%
BL4.6Tm0%
Vas2.3L+35%
Qes0.7+23%
55%
Similarity
Dayton Audio
ND105-4
4"
Xmax4mm-11%
Qts0.61+15%
BL4.5Tm-1%
Vas2L+16%
Qes0.66+16%
55%
Similarity

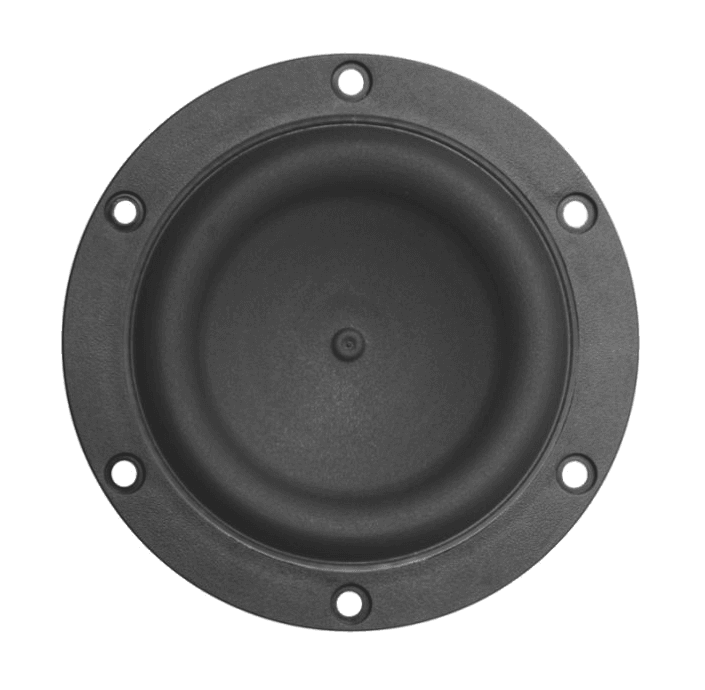

Tang Band
W3-1876S
3"
Xmax4mm-11%
Qts0.43-19%
BL5.3Tm+15%
Vas0.9L-48%
Qes0.5-12%
55%
Similarity

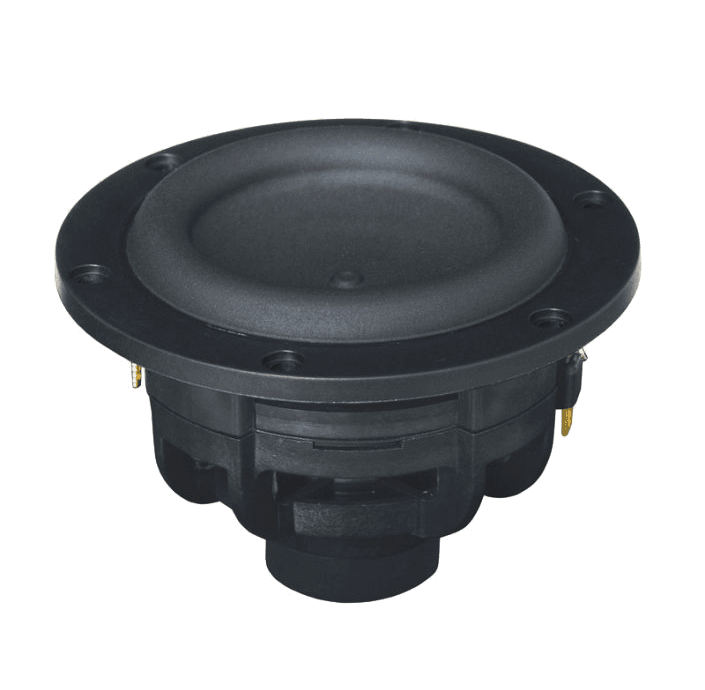

Tang Band
