LF DriverCHN series
Markaudio

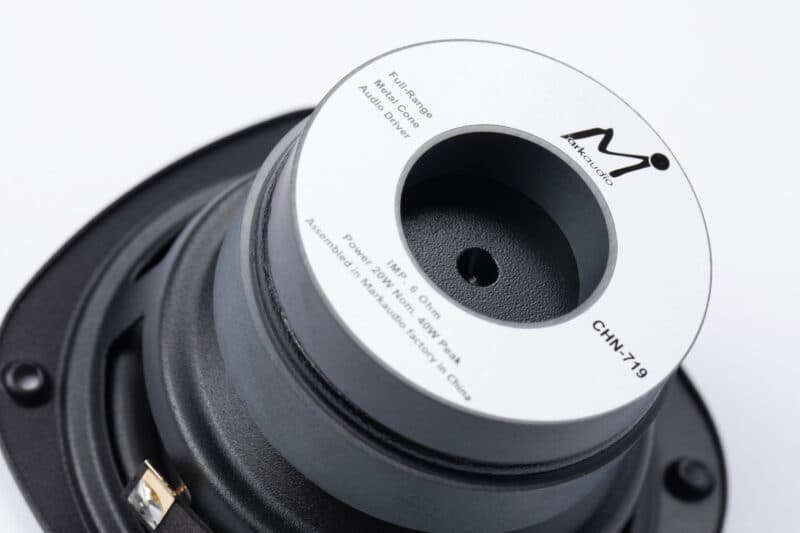

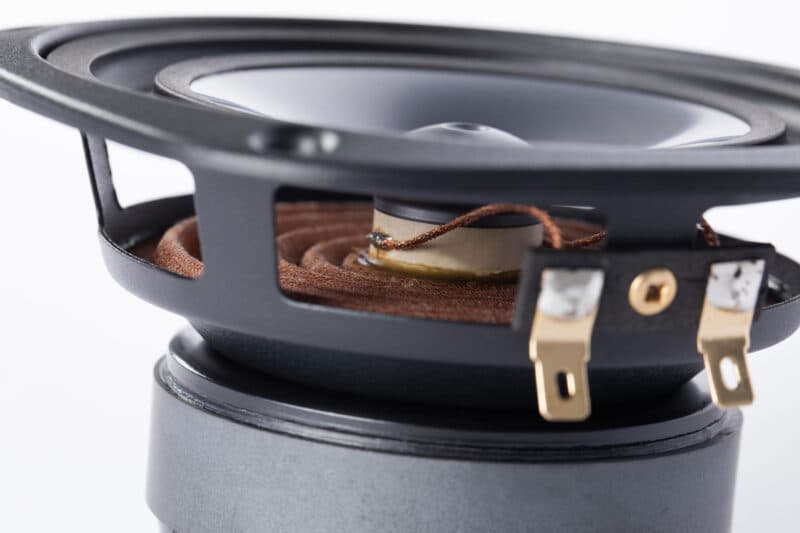

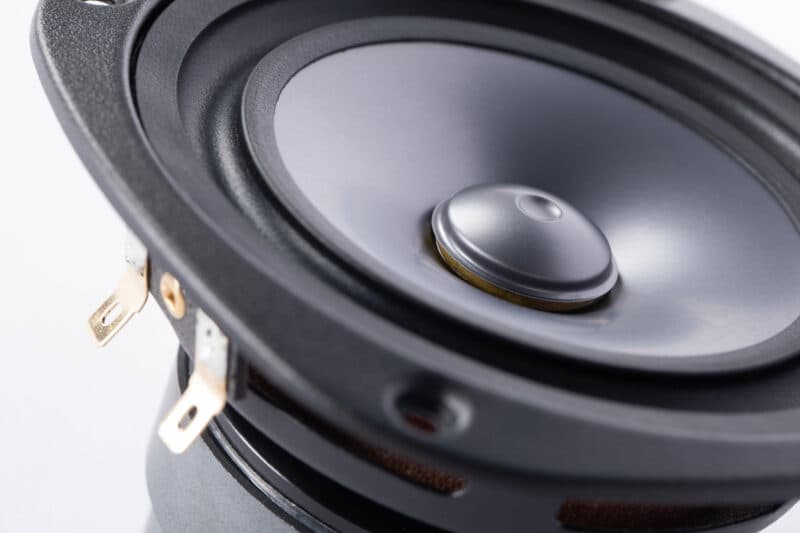

Markaudio CHN-719
Markaudio CHN-719 is a 2.75" 6 ohm LF driver rated at 40W RMS. The validated T/S data includes Fs 68Hz, Qts 0.50, Vas 4.7L, Xmax 4.3mm, sensitivity 86.1dB, plus 22cm³ Vd and 115 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
2.75"
Impedance
6Ω
RMS Power
40W
Sensitivity
86.1dB
87.7dBmanufacturer; using T/S-derived value (1.6dB delta).
EBP
115
Vented alignment
Vd
22cm³
T/S Parameters
Valid
Fs68Hz
Qts0.50
Qes0.60
Qms2.9
Vas4.7L
Re5.4Ω
Le0.05mH
BL4.0Tm
Sd50cm²
Mms4g
Xmax4.3mm
SPL86dB
Power40W
Impedance6Ω
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

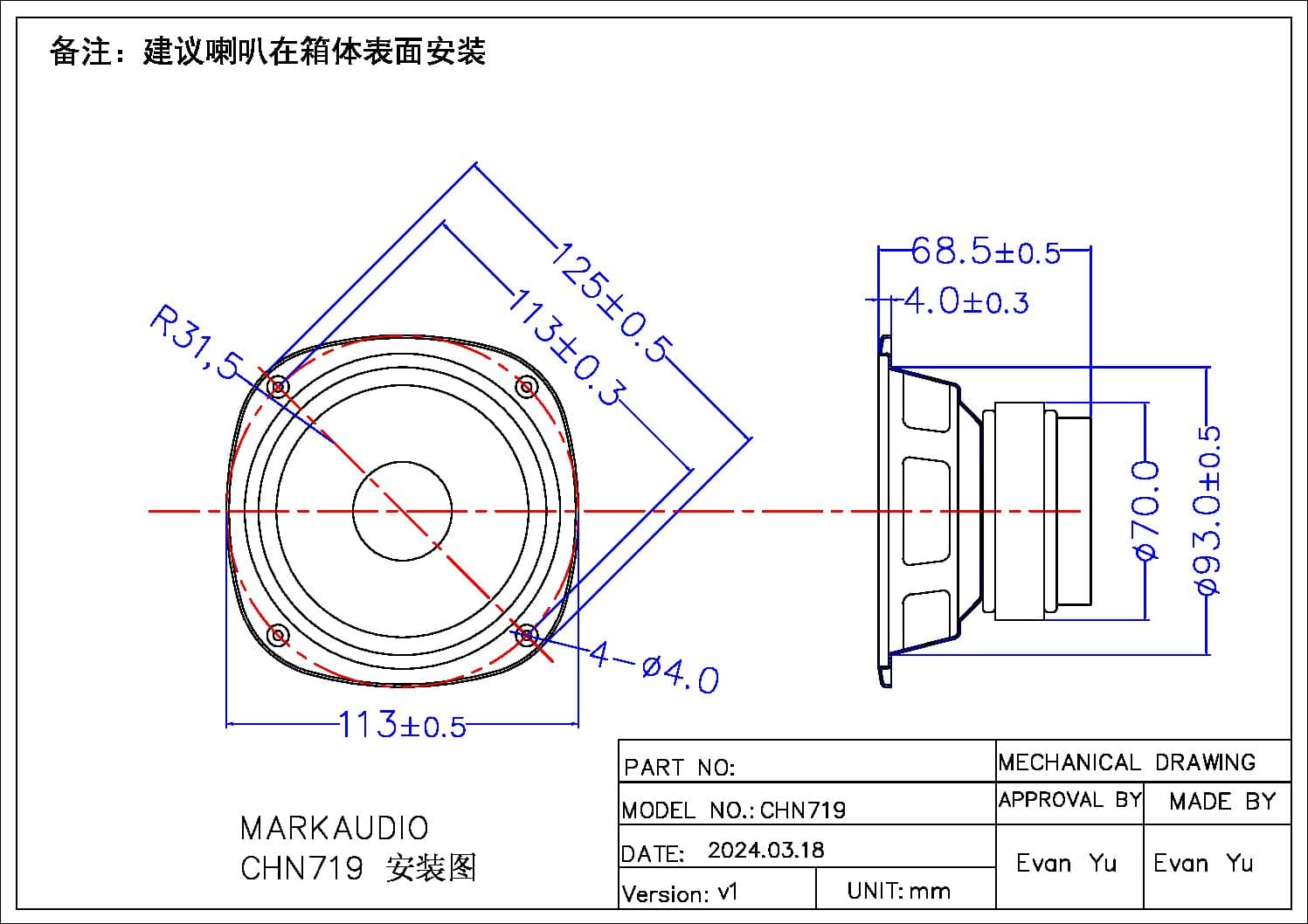

Dimensions & Physical
Weight2.6kg
