Overview
LF Driver
Tang Band

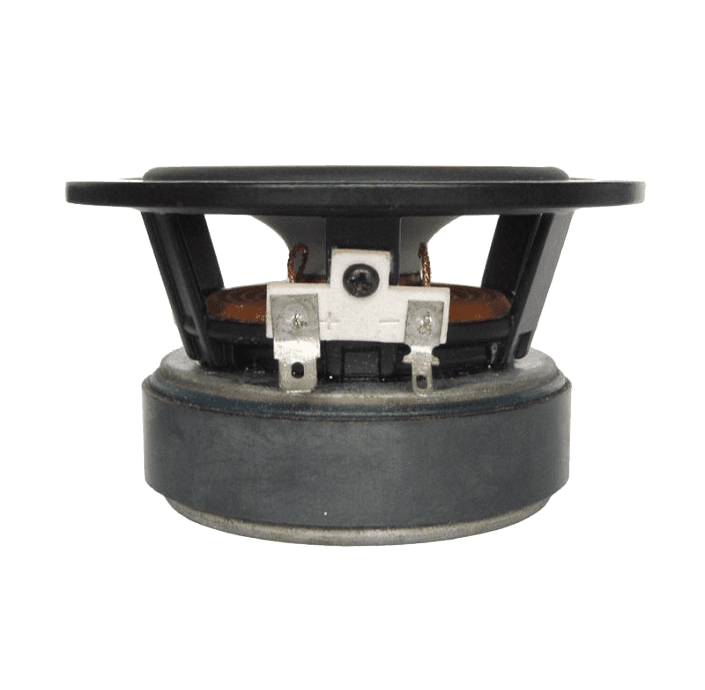

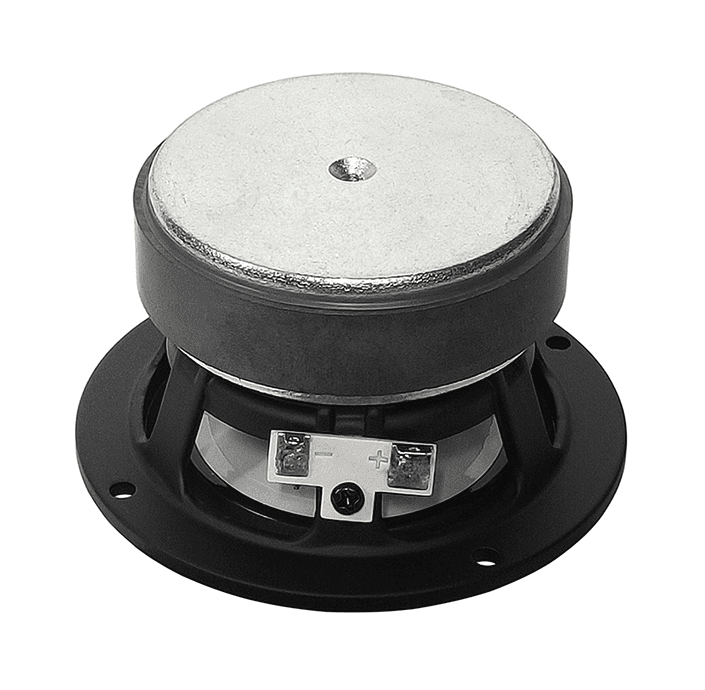

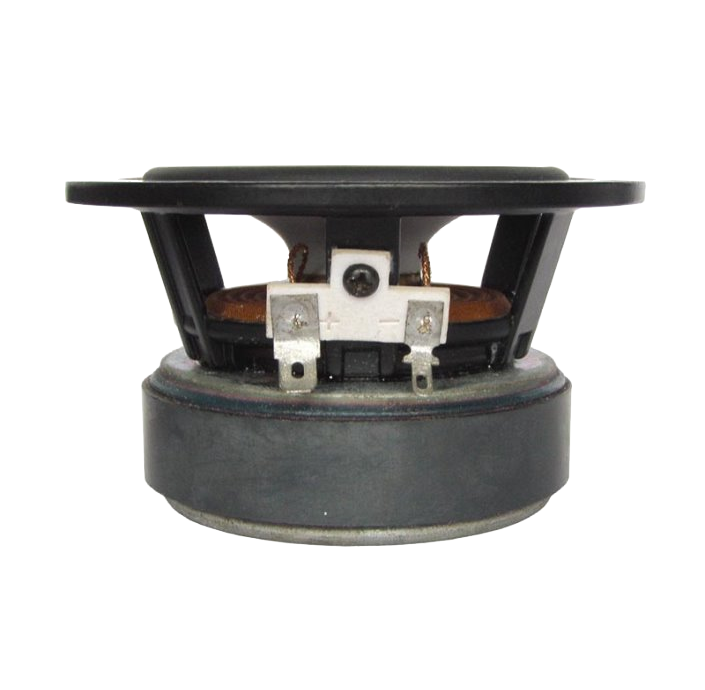

Tang Band W3-315E
Tang Band W3-315E is a 3" 8 ohm LF driver rated at 10W RMS. The validated T/S data includes Fs 100Hz, Qts 0.52, Vas 1.7L, Xmax 1.3mm, sensitivity 86.7dB, plus 4cm³ Vd and 175 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
3"
Impedance
8Ω
RMS Power
10W
Sensitivity
86.7dB
EBP
175
Vented alignment
Vd
4cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
spl117 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
spl
Frequency response
117 plotted pointsMedium confidence416 selected pixels of 1,880
T/S Parameters
Valid
Fs100Hz
Qts0.52
Qes0.57
Qms5.5
Vas1.7L
Re6.6Ω
Le0.20mH
BL3.9Tm
Sd32cm²
Mms2g
Xmax1.3mm
SPL87dB
Power10W
Impedance8Ω
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Tang Band
W3-315E
3"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
5 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
82%
Similarity
Monacor
SPX-32M
3"
Xmax1.1mm-12%
Qts0.56+8%
BL3.7Tm-5%
Vas1.6L-5%
Qes0.6+5%
75%
Similarity
Tang Band
W3-316B
3"
Xmax1.2mm-4%
Qts0.44-15%
BL4.1Tm+6%
Vas1.9L+12%
Qes0.48-16%
67%
Similarity
Monacor
SPX-31M
3"
Xmax1.1mm-12%
Qts0.58+12%
BL3.6Tm-6%
Vas1.3L-23%
Qes0.69+21%
61%
Similarity
Sica
3.5 L 1 SL
3.5"
Xmax1.5mm+20%
Qts0.57+10%
BL4.3Tm+10%
Vas1.4L-17%
Qes0.61+7%
61%
Similarity
Sica
3.5 F 1 CS
3.5"
Xmax1.5mm+20%
Qts0.57+10%
BL4.2Tm+8%
Vas1.4L-17%
Qes0.63+11%
