4-inch LF driver · HX series · 26 mm voice coil · 40 W

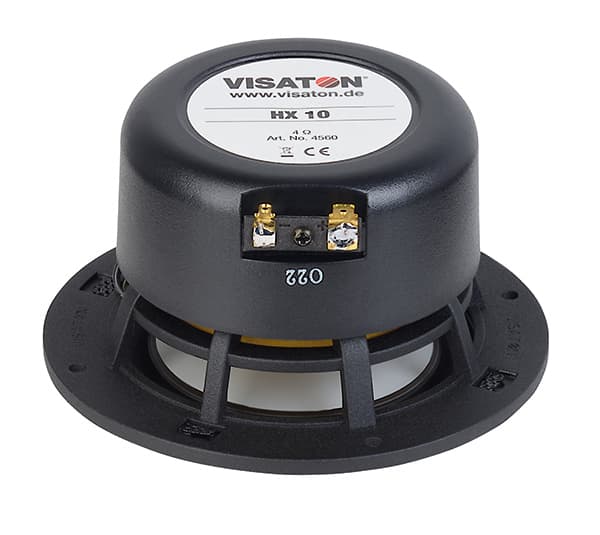

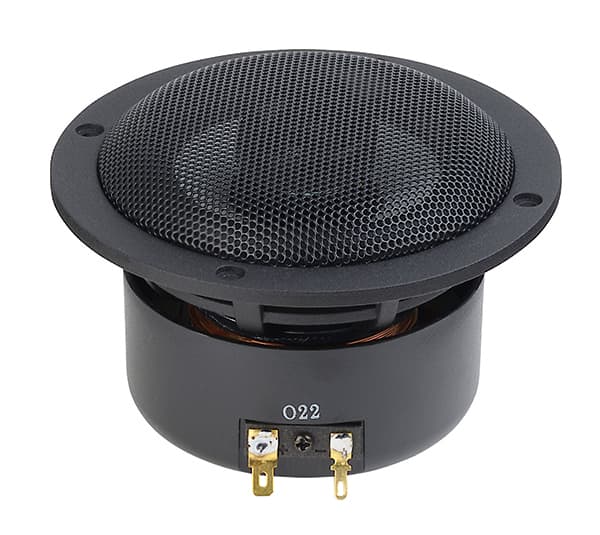

Visaton HX 10 4Ω
4 Ω · 50–22000 Hz
£99.54
SteadyImpact Audio · In stock · All 2 offers
- Fs
- 80Hz
- Xmax
- 1.5mm
- SPL
- 88dB
- Pe
- 40W
- BL
- 3.9T·m
- Vd
- 8cm³
- Qts
- 0.50
- Vas
- 5L
Manufacturer response and impedance data, with source and trace details below. The left and right arrow keys read every shown curve at a frequency, a twelfth of an octave at a time, or an octave with Shift. Escape clears the reading.
Curve provenanceInspect 2 traces
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v2
frequency response
Frequency response
240 plotted pointsSource file SHA-256 9ec8b6dd7a91…Medium confidence306 selected pixels of 1,950 - Trace datasheet-response-trace-poc/v2
impedance
Impedance response
240 plotted pointsSource file SHA-256 9ec8b6dd7a91…Medium confidence684 selected pixels of 684

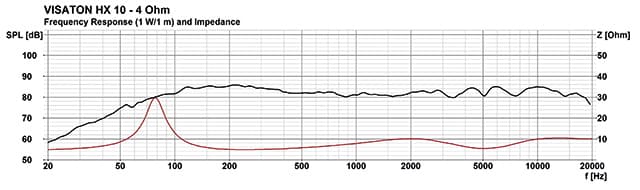

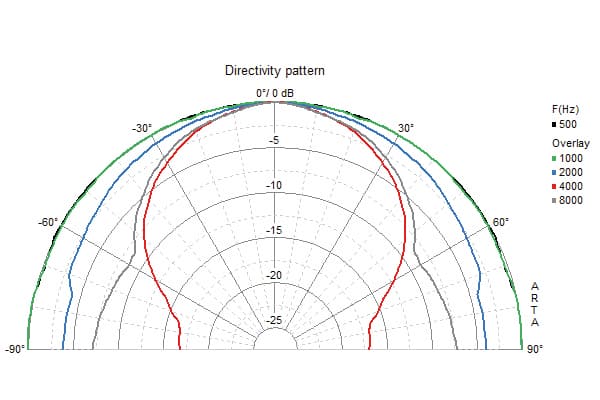

Published graphs
Visaton HX 10 is a 4-inch 4 ohm LF driver rated at 40 W RMS. The validated T/S data includes Fs 80 Hz, Qts 0.50, Vas 5.1 L, Xmax 1.5 mm, sensitivity 88.3 dB, plus 8 cm³ Vd and 131 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £99.54.
The published T/S values agree with each other
Thiele/Small
- Fs
- 80Hz
- Qts
- 0.50
- Qes
- 0.61
- Qms
- 2.9
- Vas
- 5.1L
- Re
- 4.3Ω
Motor and cone
- BL
- 3.9T·m
- Sd
- 55cm²
- Mms
- 4g
- Xmax
- 1.5mm
- Vd †
- 8cm³
- Voice coil
- 26mm
- Flux density
- 1.10T
Power and response
- Sensitivity †
- 88.3dB
- Manufacturer sensitivity
- 81dB
- Power
- 40W
- Impedance
- 4Ω
- Range
- 50–22000Hz
- EBP †
- 131 · Leans vented
Size and mounting
- Diameter
- 100mm
- Cutout
- 101mm
- Weight
- 0.5kg
Other published values
- Power Peak
- 60
Sensitivity shows 88.3 dB, calculated from the T/S values. Visaton publishes 81.0 dB, 7.3 dB apart.
Excursion and motor values come from the LF section; the frequency range spans every section.
† Calculated by bits from the published values
What this validation status means
Components and manufacturer details
LF · Primary · 4″
- BL
- 3.9T·m
- Fs
- 80Hz
- Re
- 4.3Ω
- Sd
- 55cm²
- Mms
- 4g
- Qes
- 0.61
- Qms
- 2.9
- Qts
- 0.50
- SPL
- 88.3dB
- Vas
- 5.1L
- Xmax
- 1.5mm
- Power
- 40W
- Impedance
- 4Ω
- Power Peak
- 60
- Flux density
- 1.10T
- Sensitivity
- 81dB
- Low limit
- 50Hz
- Calculated sensitivity †
- 88.3dB
- High limit
- 22000Hz
- Manufacturer sensitivity
- 81dB
- Voice coil
- 26mm
- Weight
- 0.5kg
- Diameter
- 100mm
- Cutout
- 101mm
