Overview
LF DriverPrestige series
SEAS

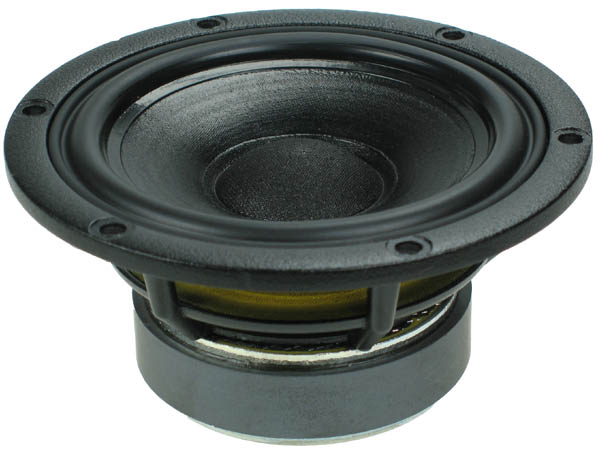

SEAS H1304-08 MCA12RC
SEAS H1304-08 MCA12RC is a 1" 8 ohm LF driver rated at 110W RMS. The validated T/S data includes Fs 68Hz, Qts 0.56, Vas 5L, Xmax 0.9mm, sensitivity 85.3dB, plus 5cm³ Vd and 92 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
1"
Impedance
8Ω
RMS Power
110W
Sensitivity
85.3dB
EBP
92
Either alignment
Vd
5cm³

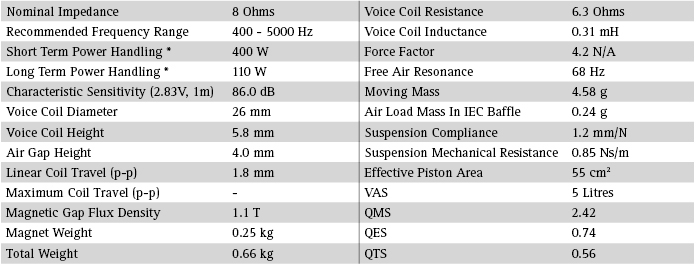

T/S Parameters
Valid
Fs68Hz
Qts0.56
Qes0.74
Qms2.4
Vas5.0L
Re6.3Ω
Le0.31mH
BL4.2Tm
Sd55cm²
Mms5g
Xmax0.9mm
SPL85dB
Power110W
Impedance8Ω
F Low400Hz
F High5000Hz
Voice Coil26mm
Flux Density1.10T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight0.7kg
