LF DriverCeramic series
Accuton

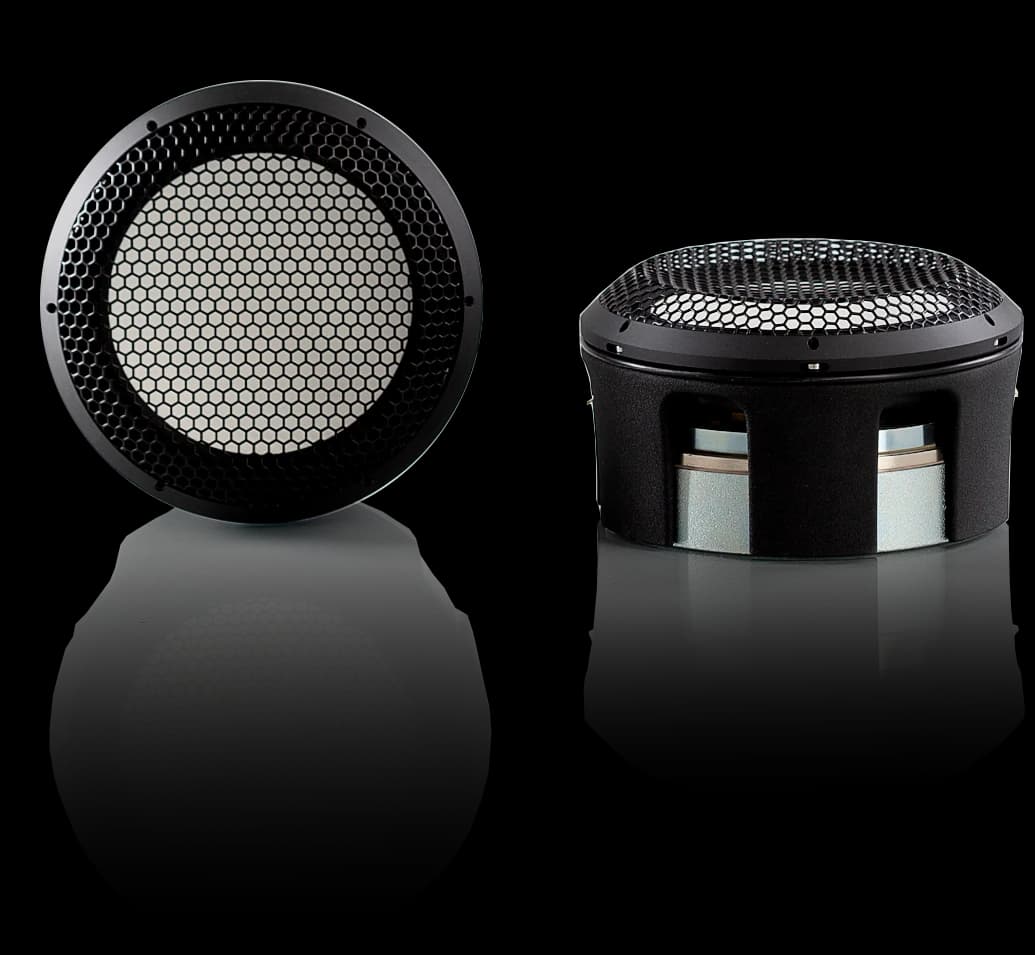

Accuton C90-6-724
Accuton C90-6-724 is a 5" 6 ohm LF driver rated at 100W RMS. The validated T/S data includes Fs 83Hz, Qts 0.60, Vas 5.1L, Xmax 3mm, sensitivity 88.4dB, plus 24cm³ Vd and 123 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £532.95.
Size
5"
Impedance
6Ω
RMS Power
100W
Sensitivity
88.4dB
EBP
123
Vented alignment
Vd
24cm³
T/S Parameters
Valid
Fs83Hz
Qts0.60
Qes0.67
Qms5.1
Vas5.1L
Re5.4Ω
Le0.13mH
BL6.0Tm
Sd81cm²
Mms8g
Xmax3.0mm
SPL88dB
Power100W
Impedance6Ω
Voice Coil80mm
Pricing & availability
Price definitionsPrice movement
Best current price
£532.95
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

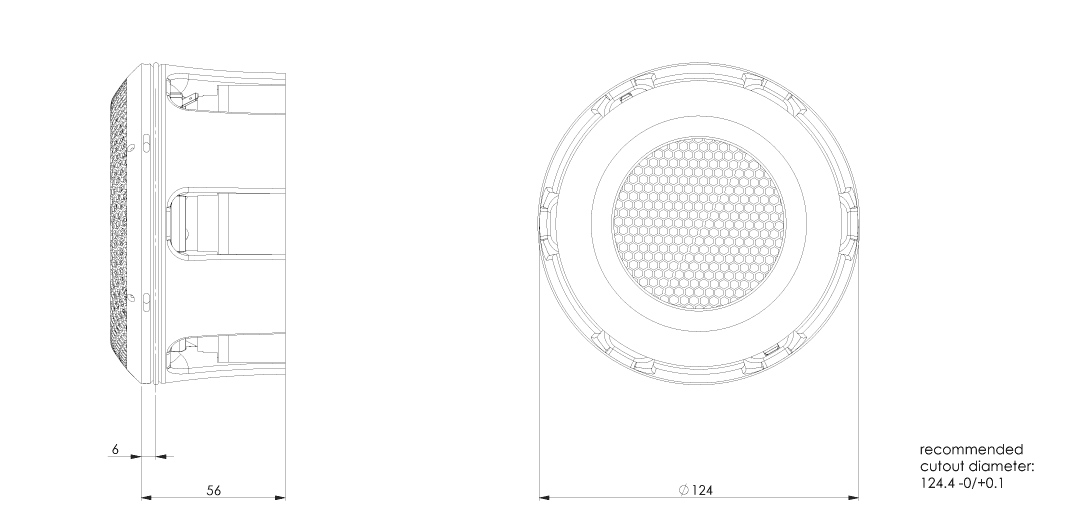

Dimensions & Physical
Diameter124.0mm
Overall Depth56.0mm
Cutout Diameter124.4mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Accuton
C90-6-724
5"
Best current price
£532.95
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
84%
Similarity
97% cheaper£14.72

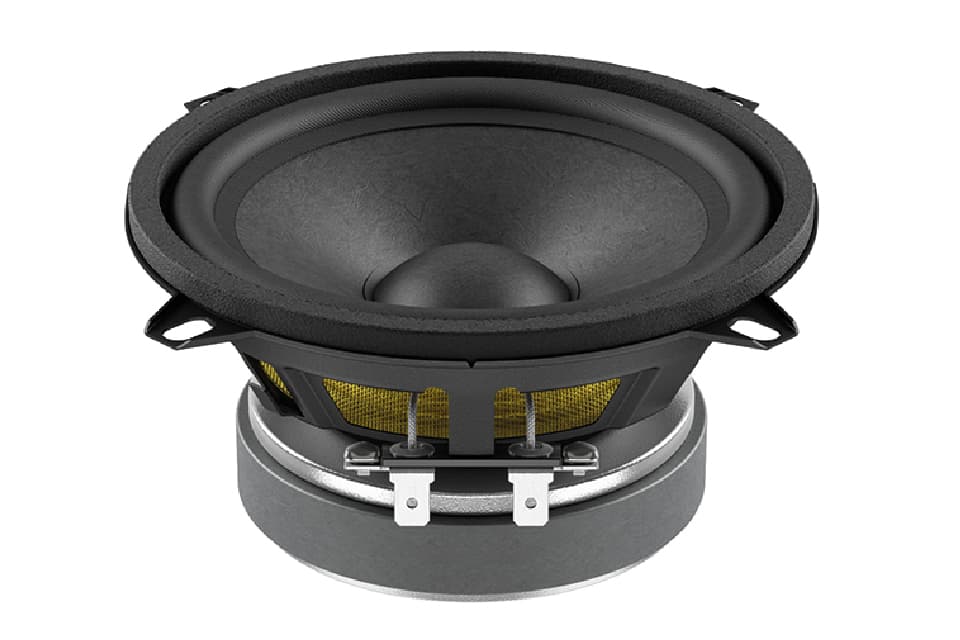

Lavoce
WSF051.02
5"
Lower price
Xmax3.1mm+3%
Qts0.60%
BL6.4Tm+8%
Vas3.3L-36%
Qes0.66-1%
51%
Similarity
96% cheaper£21.94
FaitalPRO
4FE32
4"
Lower price
Xmax2.7mm-9%
Qts0.61+2%
BL4.8Tm-19%
Vas2.3L-55%
Qes0.7+4%
61%
Similarity
94% cheaper£30.00

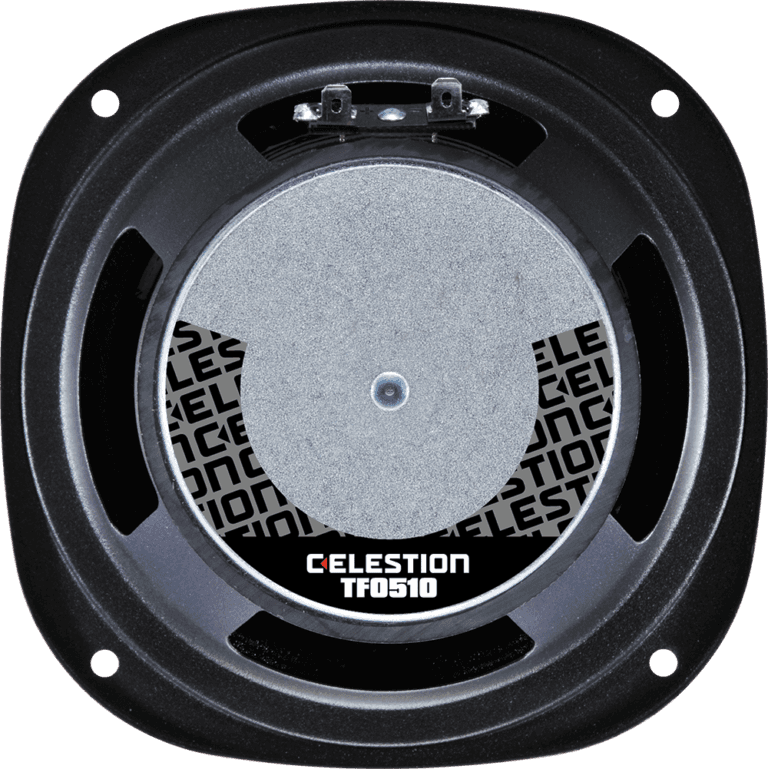

Celestion
TF0510
5"
Lower price
Xmax2.4mm-20%
Qts0.58-3%
BL6.8Tm+15%
Vas7.4L+45%
Qes0.77+15%
46%
Similarity
90% cheaper£51.68
Celestion
TFX0515
5"
Lower price
Xmax3.8mm+25%
Qts0.47-21%
BL7Tm+17%
Vas6.5L+28%
Qes0.5-25%
39%
Similarity
90% cheaper£54.73
Eminence
ALPHA 6C
6"
Lower price
Xmax3.5mm+17%
Qts0.45-25%
BL6.4Tm+8%
Vas5.7L+12%
Qes0.49-27%
43%
Similarity
89% cheaper£59.00

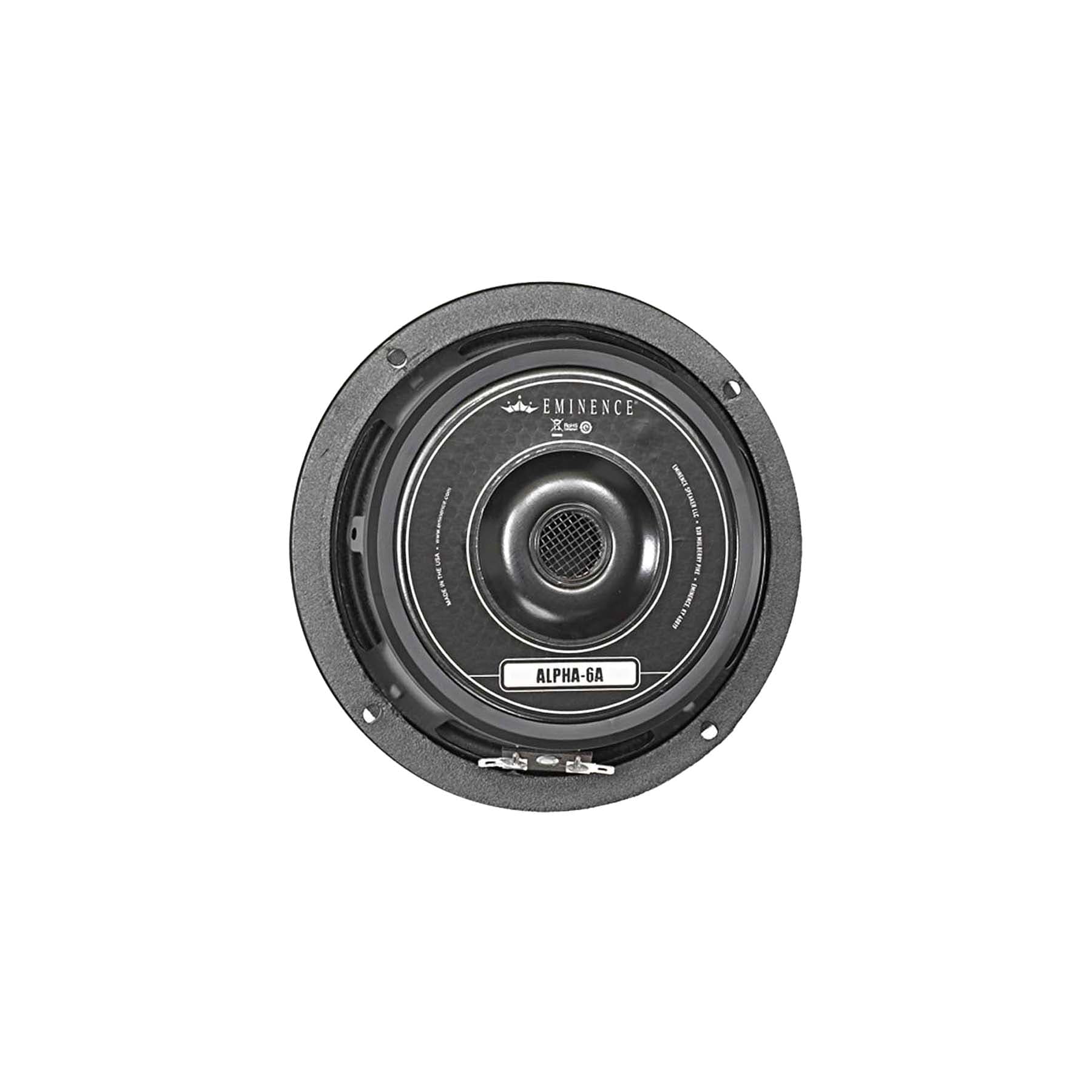

Eminence
ALPHA-6A
6"
Lower price
Xmax3.5mm+17%
Qts0.54-10%
BL8Tm+34%
Vas5.8L+14%
Qes0.6-10%
79%
Similarity
Sica
5 N 1.5 PL
5"
Xmax3mm0%
Qts0.56-7%
BL6.2Tm+4%
Vas3L-41%
Qes0.72+7%
78%
Similarity

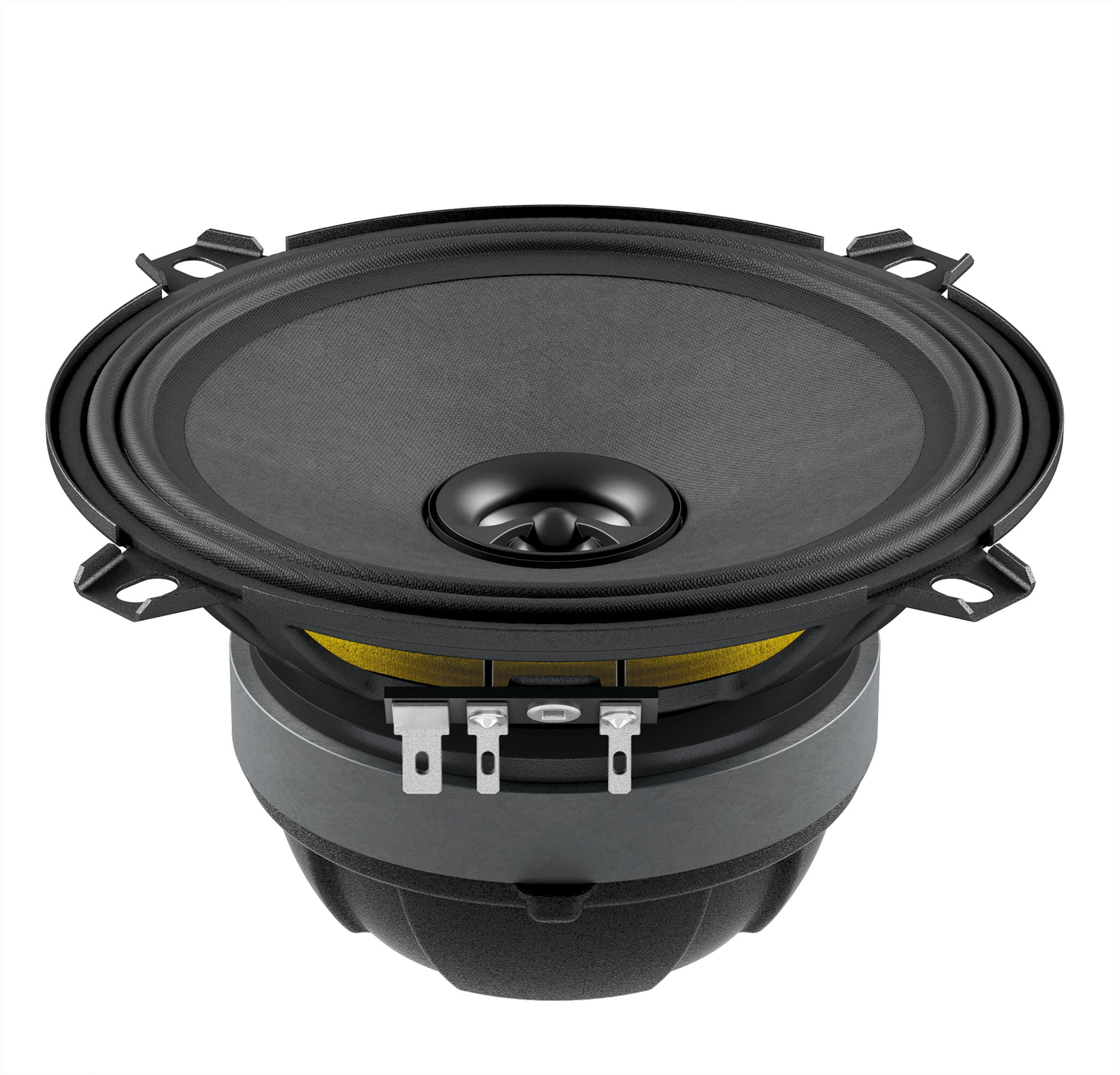

Lavoce
CSF051.21
5"
Xmax3.4mm+13%
Qts0.64+7%
BL5.9Tm-1%
Vas4.1L-20%
Qes0.74+10%
Image unavailable
70%
Similarity
Wavecor
WF118WA06
4.5"
Xmax3mm0%
Qts0.55-8%
BL5.6Tm-6%
Vas3.5L-31%
Qes0.59-12%
66%
Similarity
Dayton Audio
RS125T-8
5"
Xmax2.8mm-7%
Qts0.5-17%
BL5Tm-15%
Vas3.6L-30%
Qes0.61-9%
63%
Similarity

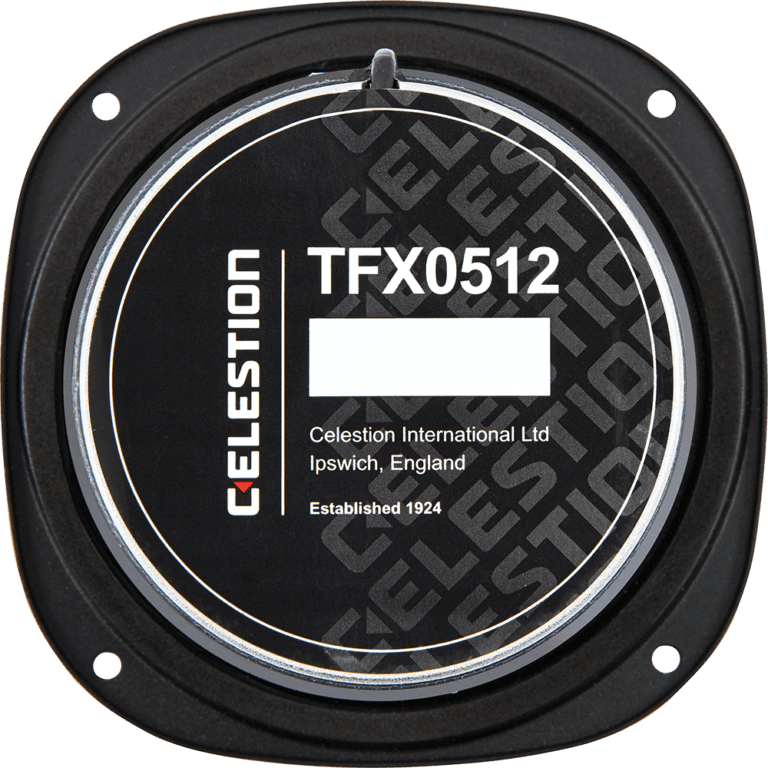

Celestion
TFX0512
5"
Xmax3.3mm+8%
Qts0.46-24%
BL6.4Tm+8%
Vas5.4L+5%
Qes0.49-26%
61%
Similarity
PRV Audio
6MB400-4
6"
Xmax3mm0%
Qts0.52-13%
BL6.6Tm+11%
Vas5.3L+4%
Qes0.56-16%
