Overview
LF Driver
Dayton Audio
Dayton Audio DA135-8
Dayton Audio DA135-8 is a 4" 8 ohm LF driver rated at 30W RMS. The validated T/S data includes Fs 57Hz, Qts 0.54, Vas 7.4L, Xmax 3mm, sensitivity 85dB, plus 23cm³ Vd and 83 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
4"
Impedance
8Ω
RMS Power
30W
Sensitivity
85.0dB
EBP
83
Either alignment
Vd
23cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
15 degrees240 ptsp1medium
45 degrees220 ptsp1medium
Curve provenanceInspect 3 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
15 degrees
Frequency response
240 plotted pointsMedium confidence911 selected pixels of 1,134 - Trace datasheet-response-trace-poc/v1
45 degrees
Frequency response
220 plotted pointsMedium confidence762 selected pixels of 1,688 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence1,269 selected pixels of 1,269
T/S Parameters
Valid
Fs57Hz
Qts0.54
Qes0.68
Qms2.6
Vas7.4L
Re6.4Ω
Le0.97mH
BL5.3Tm
Sd75cm²
Mms9g
Xmax3.0mm
SPL85dB
Power30W
Impedance8Ω
F Low50Hz
F High15000Hz
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Diameter135.0mm
Overall Depth63.1mm
Cutout Diameter111.5mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Dayton Audio
DA135-8
4"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
78%
Similarity

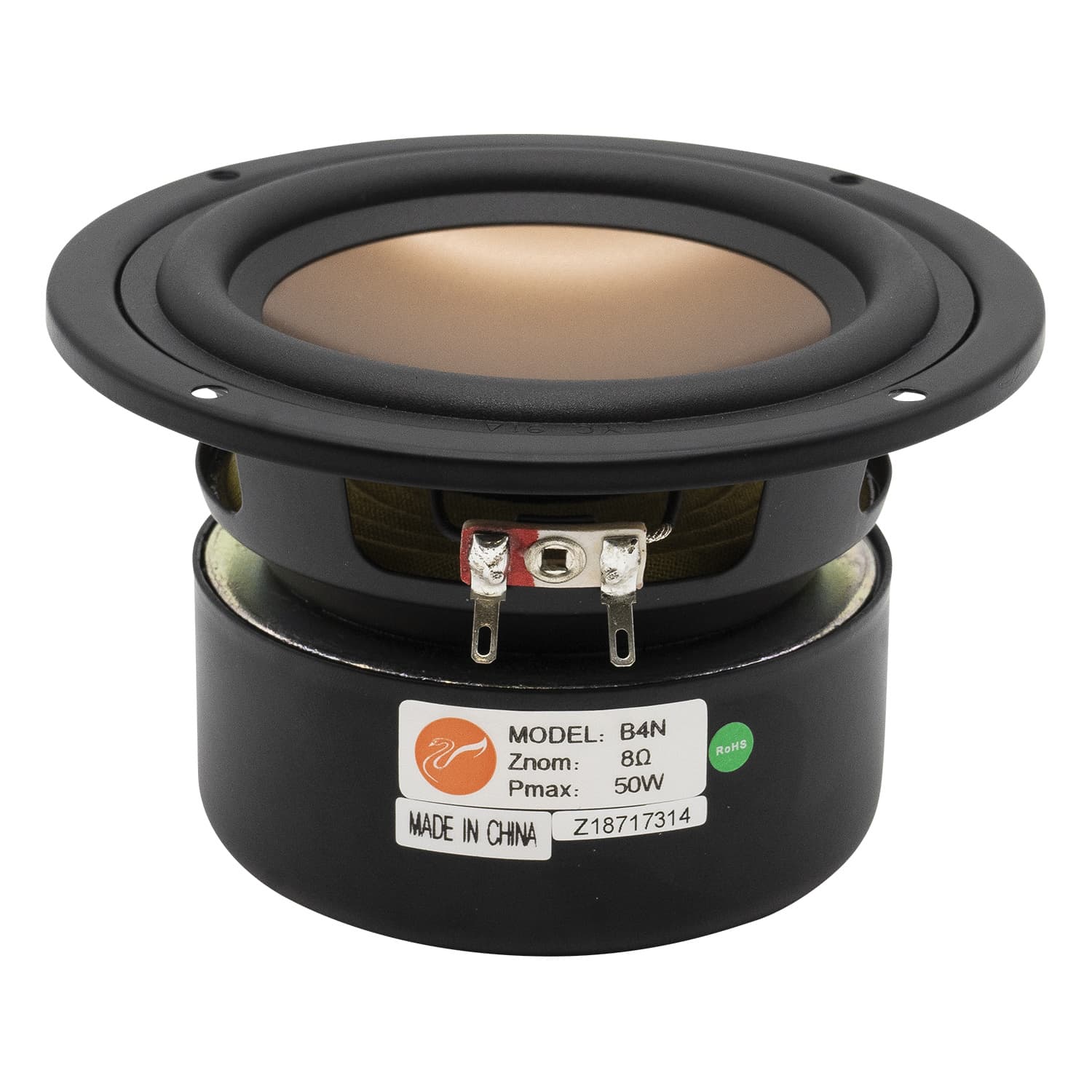

HiVi
B4N
4"
Xmax3.2mm+7%
Qts0.52-4%
BL5.1Tm-4%
Vas4.5L-39%
Qes0.63-7%
Image unavailable
68%
Similarity
Wavecor
WF118WA06
4.5"
Xmax3mm0%
Qts0.55+2%
BL5.6Tm+5%
Vas3.5L-53%
Qes0.59-13%
66%
Similarity
Tang Band
W4-2356
4"
Xmax3mm0%
Qts0.45-17%
BL4.9Tm-7%
Vas4L-46%
Qes0.59-13%
61%
Similarity
£532.95
Accuton
C90-6-724
5"
Xmax3mm0%
Qts0.6+11%
BL6Tm+12%
Vas5.1L-31%
Qes0.67-1%
60%
Similarity
£20.96
Dayton Audio
DC130AS-8
4"
Xmax2.5mm-17%
Qts0.45-17%
BL5.8Tm+10%
Vas9.7L+31%
Qes0.58-15%
58%
Similarity
Monacor
SP-4/60PRO
4"
Xmax2.3mm-23%
Qts0.6+11%
BL5.8Tm+10%
Vas3L-59%
Qes0.67-1%
Image unavailable
58%
Similarity
Wavecor
WF120BD13
4.5"
Xmax3mm0%
Qts0.47-13%
BL5.3Tm0%
Vas3.8L-49%
Qes0.5-26%
57%
Similarity
Tang Band
W4-2417
4"
Xmax2.5mm-17%
Qts0.44-19%
BL5.4Tm+1%
Vas4.6L-38%
Qes0.52-24%
Image unavailable
56%
Similarity
Wavecor
WF120BD14
4.5"
Xmax3mm0%
Qts0.46-15%
BL5.3Tm0%
Vas3.9L-47%
Qes0.49-28%
55%
Similarity
CIARE
HW129
5"
Xmax3.9mm+30%
Qts0.55+2%
BL5.2Tm-2%
Vas6.1L-18%
Qes0.76+12%
54%
Similarity
Sica
5 N 1.5 PL
5"
Xmax3mm0%
Qts0.56+4%
BL6.2Tm+17%
Vas3L-59%
Qes0.72+6%
53%
Similarity
Dayton Audio
RS125T-8
5"
Xmax2.8mm-7%
Qts0.5-7%
BL5Tm-5%
Vas3.6L-52%
Qes0.61-10%
