Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespSica 5 D 1 CS 8Ω
LF DriverMedia
Auto-advancing
Overview
LF Driver
Sica
Sica 5 D 1 CS
Sica 5 D 1 CS is a 5" 8 ohm LF driver rated at 60W RMS. The validated T/S data includes Fs 79Hz, Qts 0.52, Vas 5.5L, Xmax 3mm, sensitivity 88.7dB, plus 24cm³ Vd and 136 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
5"
Impedance
8Ω
RMS Power
60W
Sensitivity
88.7dB
90.0dBmanufacturer; using T/S-derived value (1.3dB delta).
EBP
136
Vented alignment
Vd
24cm³
T/S Parameters
Valid
Fs79Hz
Qts0.52
Qes0.58
Qms5.0
Vas5.5L
Re6.0Ω
Le0.33mH
BL5.7Tm
Sd79cm²
Mms6g
Xmax3.0mm
SPL89dB
Power60W
Impedance8Ω
Voice Coil25mm
Flux Density0.95T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight0.9kg
Diameter130.0mm
Overall Depth58.1mm
Cutout Diameter113.0mm
Bolt Circle Diameter139.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Sica
5 D 1 CS
5"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
79%
Similarity
£544.95
Accuton
C90-6-724
5"
Xmax3mm0%
Qts0.6+15%
BL6Tm+4%
Vas5.1L-7%
Qes0.67+16%
76%
Similarity
Dayton Audio
RS125T-8
5"
Xmax2.8mm-7%
Qts0.5-4%
BL5Tm-12%
Vas3.6L-35%
Qes0.61+5%
Image unavailable
76%
Similarity
Wavecor
WF118WA06
4.5"
Xmax3mm0%
Qts0.55+6%
BL5.6Tm-2%
Vas3.5L-36%
Qes0.59+2%
75%
Similarity
Celestion
TFX0512
5"
Xmax3.3mm+8%
Qts0.46-12%
BL6.4Tm+12%
Vas5.4L-2%
Qes0.49-15%
74%
Similarity
SEAS
E0043-06S M15CH002
5"
Xmax3mm0%
Qts0.4-23%
BL5.3Tm-8%
Vas6L+9%
Qes0.52-10%
74%
Similarity
PRV Audio
6MB400-4
6"
Xmax3mm0%
Qts0.520%
BL6.6Tm+15%
Vas5.3L-4%
Qes0.56-3%
68%
Similarity
Sica
5 N 1.5 PL
5"
Xmax3mm0%
Qts0.56+8%
BL6.2Tm+8%
Vas3L-45%
Qes0.72+24%
Image unavailable
67%
Similarity
Wavecor
WF120BD13
4.5"
Xmax3mm0%
Qts0.47-10%
BL5.3Tm-8%
Vas3.8L-31%
Qes0.5-14%
66%
Similarity
Wavecor
WF118WA02
4.5"
Xmax3mm0%
Qts0.44-15%
BL5.8Tm+1%
Vas4.3L-22%
Qes0.46-21%
Image unavailable
66%
Similarity
Wavecor
WF120BD14
4.5"
Xmax3mm0%
Qts0.46-12%
BL5.3Tm-8%
Vas3.9L-29%
Qes0.49-16%
66%
Similarity
£19.32

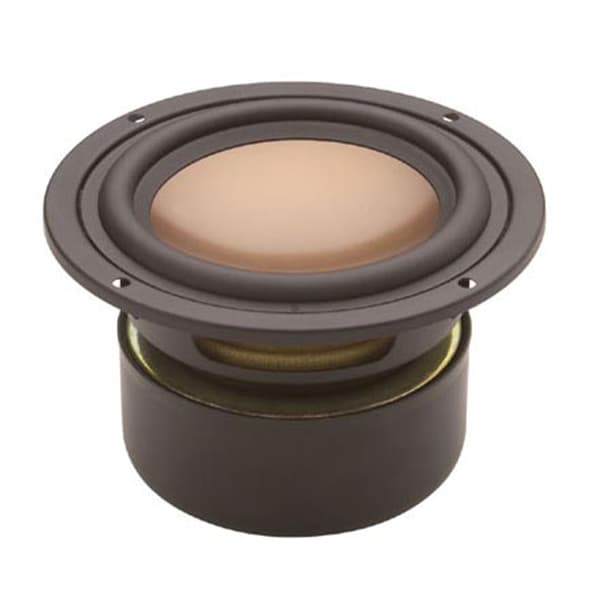

HiVi
