Wavecor SW146WA01 4Ω
LF DriverMedia
Wavecor
SW146WA01
Image unavailable
Overview
LF DriverSW146WA series
Wavecor

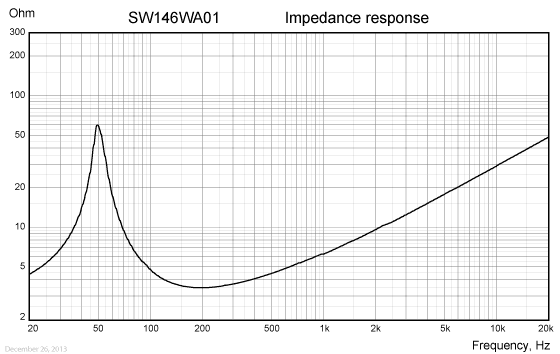

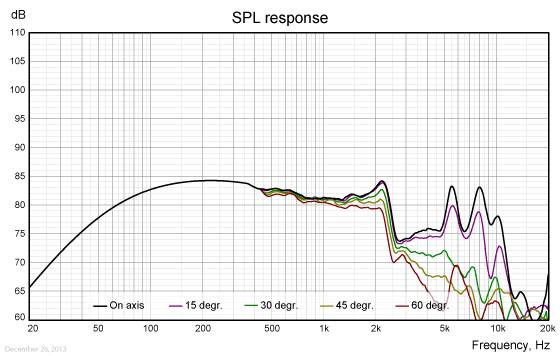

Wavecor SW146WA01
Wavecor SW146WA01 is a 5.75" 4 ohm LF driver. The validated T/S data includes Fs 51Hz, Qts 0.48, Vas 5.5L, Xmax 6mm, sensitivity 83.7dB, plus 51cm³ Vd and 102 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
5.75"
Impedance
4Ω
Sensitivity
83.7dB
EBP
102
Vented alignment
Vd
51cm³
T/S Parameters
Valid
Fs51Hz
Qts0.48
Qes0.50
Qms9.5
Vas5.5L
Re3.0Ω
BL5.9Tm
Sd85cm²
Mms18g
Xmax6.0mm
SPL84dB
Impedance4Ω
Voice Coil32mm
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Not enough T/S data
Missing Le, RMS power
BASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Not enough T/S data
Missing Le, RMS power
VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Not enough T/S data
Missing Le, RMS power
00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Diameter146.1mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Image unavailable
Reference
Wavecor
SW146WA01
5.75"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
Image unavailable
72%
Similarity

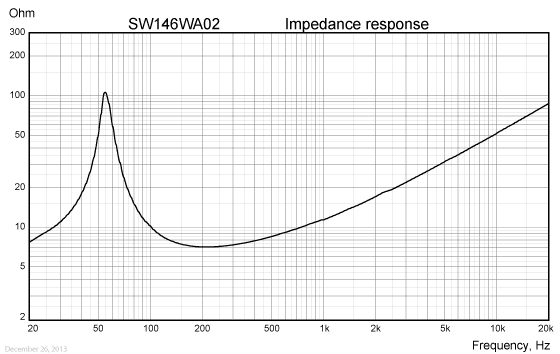

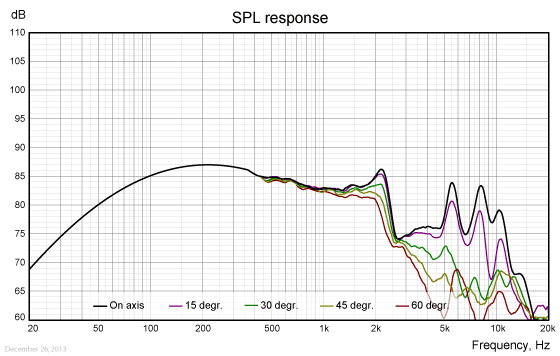

Wavecor
SW146WA02
5.75"
Xmax6mm0%
Qts0.53+10%
BL7.8Tm+32%
Vas5.5L0%
Qes0.57+14%
71%
Similarity
£24.49
FaitalPRO
5FE120
5"
Xmax5.3mm-12%
Qts0.480%
BL6.9Tm+17%
Vas5.4L-2%
Qes0.51+2%
71%
Similarity
£43.27
FaitalPRO
5FE125
5"
Xmax5.3mm-12%
Qts0.480%
BL6.9Tm+17%
Vas5.4L-2%
Qes0.51+2%
68%
Similarity
Beyma
205MP6N8
5"
Xmax5.5mm-8%
Qts0.46-4%
BL6.4Tm+8%
Vas5.8L+5%
Qes0.58+16%
68%
Similarity
£55.66
Eminence
ALPHA 5-8
5"
Xmax5.9mm-1%
Qts0.54+13%
BL6.2Tm+5%
Vas6.1L+12%
Qes0.56+12%
66%
Similarity
£21.52
FaitalPRO
5FE100
5"
Xmax5.3mm-12%
Qts0.45-6%
BL6.9Tm+17%
Vas5.7L+4%
Qes0.48-4%
66%
Similarity
£21.90
FaitalPRO
5FE105
5"
Xmax5.3mm-12%
Qts0.45-6%
BL6.9Tm+17%
Vas5.7L+4%
Qes0.48-4%
59%
Similarity

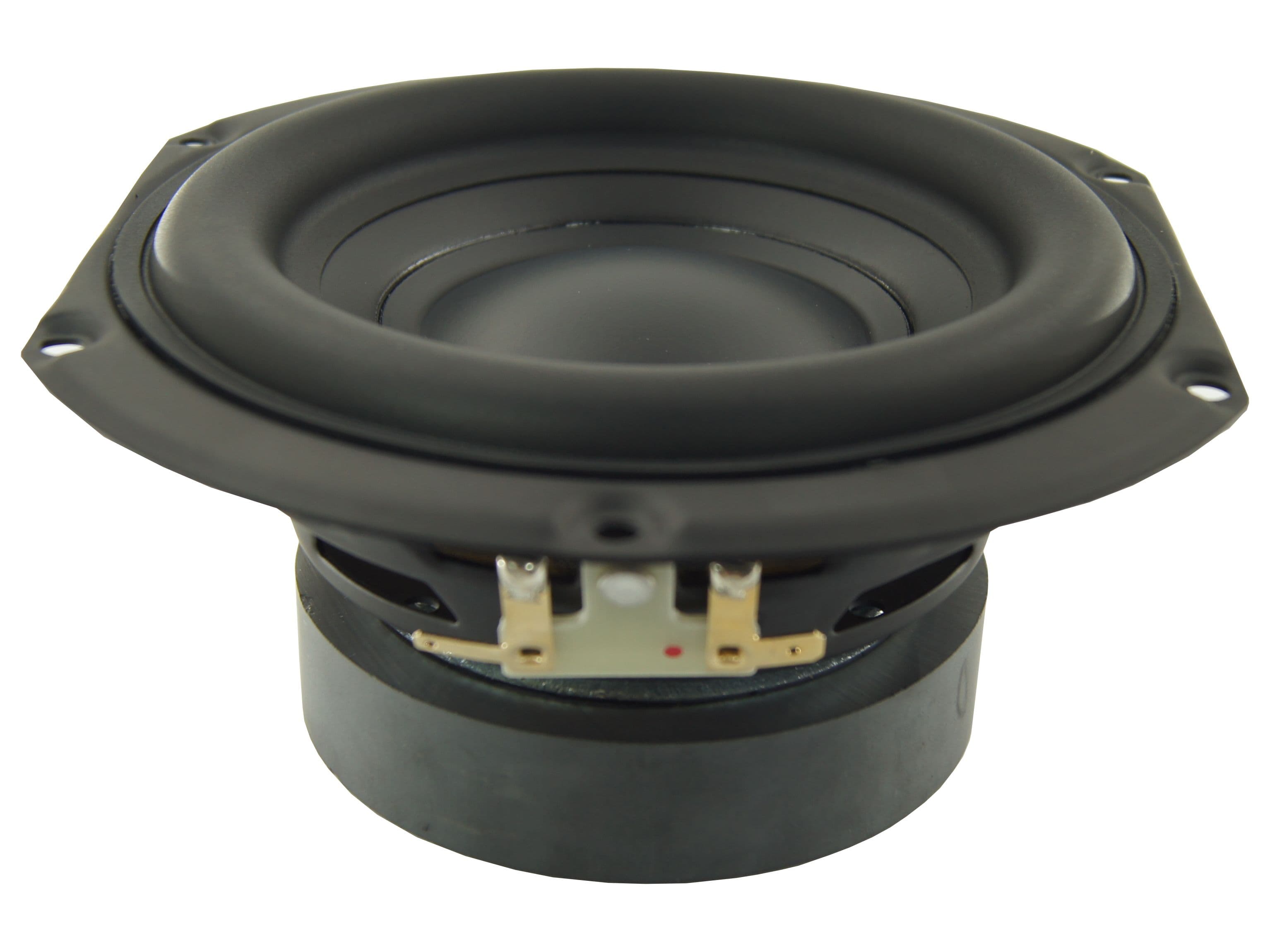

Peerless
SLS-135F32CP01-04
5.25"
Xmax7mm+17%
Qts0.54+13%
BL5.2Tm-12%
Vas5.7L+3%
Qes0.6+20%
56%
Similarity
£126.11
Beyma
5CX200FE
5"
Xmax5.7mm-5%
Qts0.41-15%
BL7.4Tm+25%
Vas5.3L-4%
Qes0.43-14%
56%
Similarity
£47.39

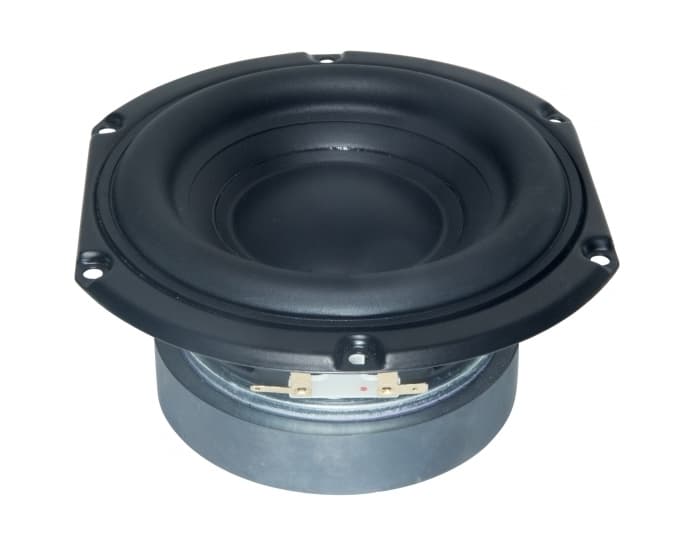

Peerless
SLS-P830945
5"
Xmax7mm+17%
Qts0.4-17%
BL6.2Tm+5%
Vas4.7L-15%
Qes0.44-12%
55%
Similarity

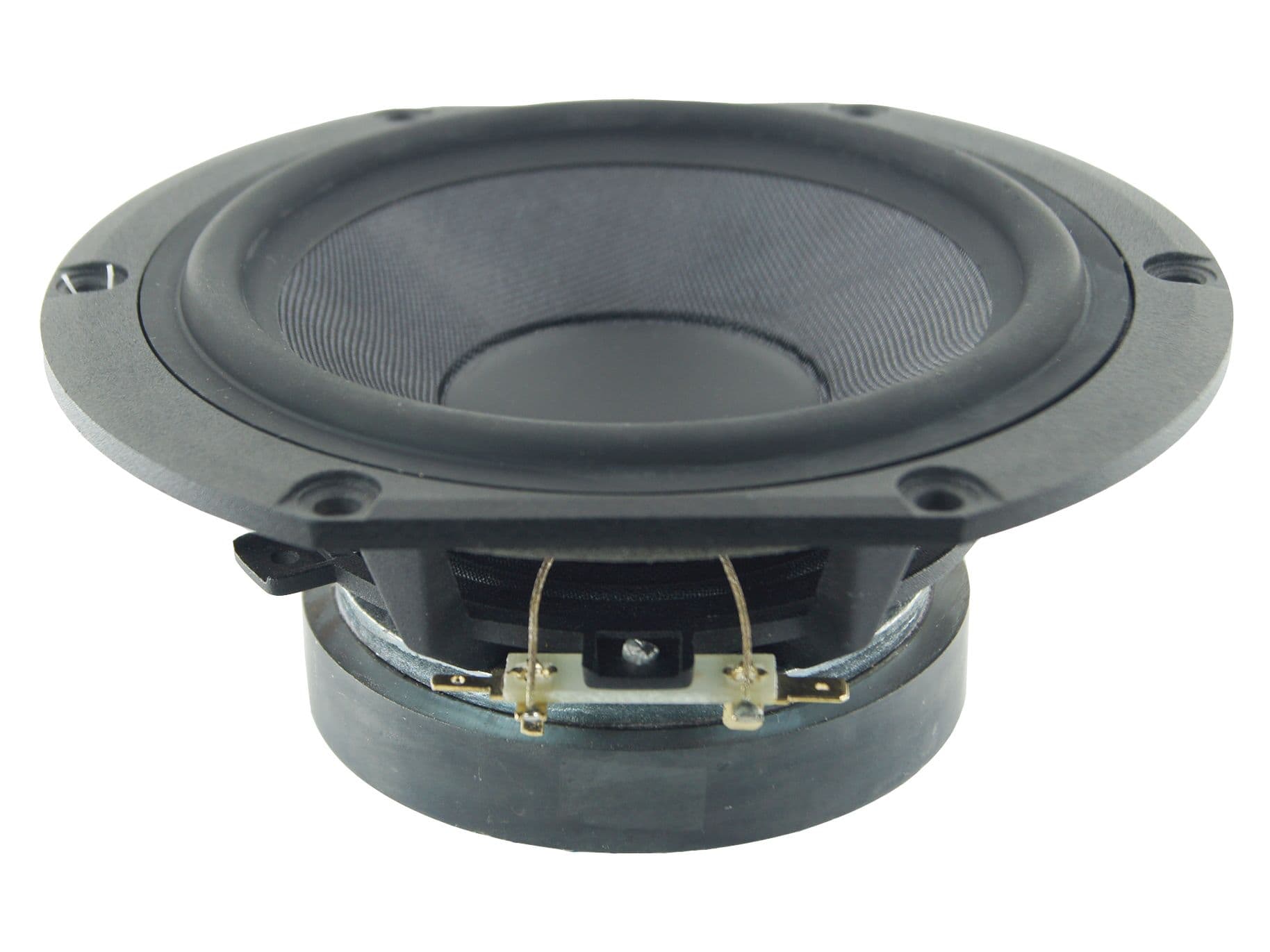

Peerless
HDS-P830991
5.25"
Xmax6.5mm+9%
Qts0.55+15%
BL6.3Tm+8%
Vas5.1L-7%
Qes0.69+38%
54%
Similarity

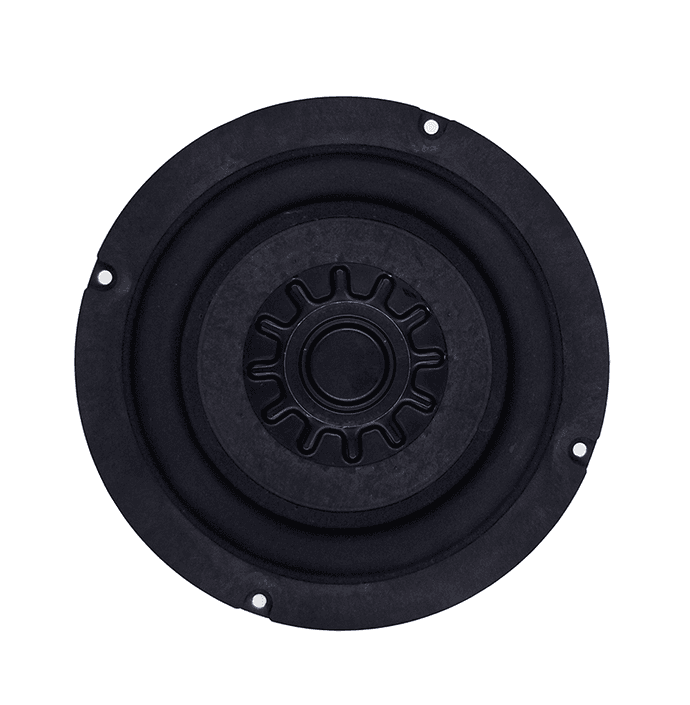

Tang Band
