Overview
LF DriverPrestige series
SEAS
SEAS H1480 L16RN-SL
SEAS H1480 L16RN-SL is a 5" 8 ohm LF driver rated at 80W RMS. The validated T/S data includes Fs 37Hz, Qts 0.45, Vas 19L, Xmax 6mm, sensitivity 84.5dB, plus 62cm³ Vd and 67 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
5"
Impedance
8Ω
RMS Power
80W
Sensitivity
84.5dB
EBP
67
Either alignment
Vd
62cm³

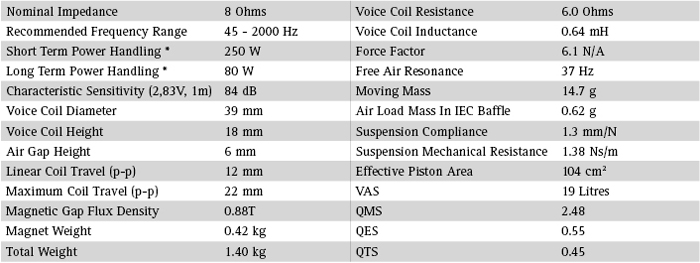

T/S Parameters
Valid
Fs37Hz
Qts0.45
Qes0.55
Qms2.5
Vas19.0L
Re6.0Ω
Le0.64mH
BL6.1Tm
Sd104cm²
Mms15g
Xmax6.0mm
SPL85dB
Power80W
Impedance8Ω
F Low45Hz
F High2000Hz
Voice Coil39mm
Flux Density0.88T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

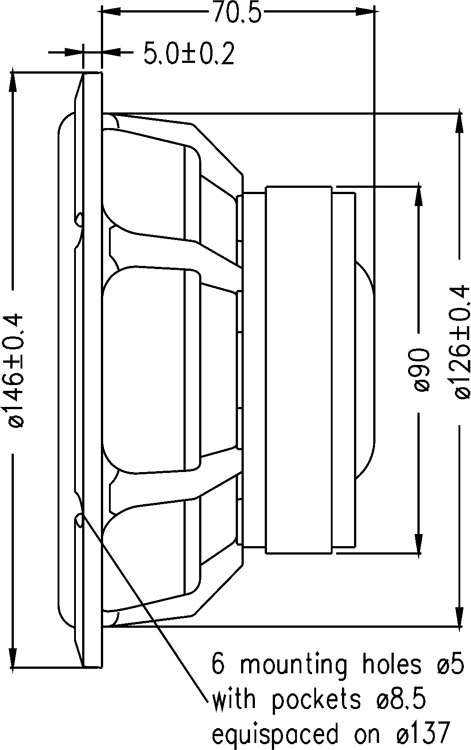

Dimensions & Physical
Weight1.4kg
