REDCATT 61FHM-1 8Ω
£40.64
Lautsprecherteile · 54 in stock · All 1 offer
- Fs
- 37Hz
- Xmax
- 6.3mm
- SPL
- 86dB
- Pe
- 60W
- BL
- 6.6T·m
- Vd
- 84cm³
- Qts
- 0.49
- Vas
- 28L
REDCATT 61FHM-1 is a 6-inch 8 ohm LF driver rated at 60 W RMS. The validated T/S data includes Fs 37 Hz, Qts 0.49, Vas 28.2 L, Xmax 6.3 mm, sensitivity 86.4 dB, plus 84 cm³ Vd and 71 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £40.64.
The published T/S values agree with each other
Thiele/Small
- Fs
- 37Hz
- Qts
- 0.49
- Qes
- 0.52
- Qms
- 11.0
- Vas
- 28.2L
- Re
- 5.8Ω
- Le
- 0.40mH
Motor and cone
- BL
- 6.6T·m
- Sd
- 133cm²
- Mms
- 16g
- Xmax
- 6.3mm
- Vd †
- 84cm³
- Voice coil
- 38mm
Power and response
- Sensitivity †
- 86.4dB
- Manufacturer sensitivity
- 87.8dB
- Power
- 60W
- Impedance
- 8Ω
- EBP †
- 71 · Sealed or vented
Size and mounting
- Diameter
- 181.5mm
- Cutout
- 151mm
- Bolt circle
- 169.5mm
- Weight
- 1.6kg
Other published values
- Xmech
- 11.3
- Power Peak
- 240
Other dimensions
- Mounting Depth
- 78.6
Sensitivity shows 86.4 dB, calculated from the T/S values. REDCATT publishes 87.8 dB, 1.4 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else REDCATT lists
LF · Primary · 6″
- BL
- 6.6T·m
- Fs
- 37Hz
- Le
- 0.40mH
- Re
- 5.8Ω
- Sd
- 133cm²
- Mms
- 16g
- Qes
- 0.52
- Qms
- 11.0
- Qts
- 0.49
- SPL
- 86.4dB
- Vas
- 28.2L
- Xmax
- 6.3mm
- Xmech
- 11.3
- Power
- 60W
- Impedance
- 8Ω
- Power Peak
- 240
- Sensitivity
- 87.8dB
- Calculated sensitivity †
- 86.4dB
- Manufacturer sensitivity
- 87.8dB
- Voice coil
- 38mm
- Weight
- 1.6kg
- Diameter
- 181.5mm
- Mounting Depth
- 78.6
- Cutout
- 151mm
- Bolt circle
- 169.5mm
02
Compare
Same-size drivers, compared with the 61FHM-1. Clear differences are green when better and red when worse.
This driver61FHM-1
Best price
£40.64
Fs
37 Hz
Qts
0.49
Vas
28.2 L
BL
6.6 T·m
Xmax
6.3 mm
Sensitivity
86.4 dB
Power
60 W
PeerlessSDS-P830657
£25.57 · 37% less, betterFs48 Hz +30%, worse
Qts0.47 −4%
Vas20.1 L −29%, better
BL6.9 T·m +5%
Xmax5.5 mm −13%, worse
Sensitivity88 dB +1.6
FaitalPRO5FE125
£29.45 · 28% less, betterFs65 Hz +76%, worse
Qts0.48 –
Vas5.4 L −81%, better
BL6.9 T·m +5%
Xmax5.3 mm −17%, worse
Sensitivity86.7 dB –
CIAREHW159
£32.44 · 20% less, betterFs53 Hz +43%, worse
Qts0.49 –
Vas19.4 L −31%, better
BL6.3 T·m −4%
Xmax5.8 mm −8%
Sensitivity88.8 dB +2.4, better
Beyma6B30
£51.18 · 26% more, worseFs56 Hz +51%, worse
Qts0.50 –
Vas15.6 L −45%, better
BL6.8 T·m +3%
Xmax5.5 mm −13%, worse
Sensitivity88.6 dB +2.2, better
Scanspeak18W/8424G00
£54.79 · 35% more, worseFs54 Hz +46%, worse
Qts0.45 −8%
Vas20.3 L −28%, better
BL6.6 T·m –
Xmax2.6 mm −59%, worse
Sensitivity90 dB +3.6, better
SB AcousticsSB17NRX2C35-8
£55.41 · 36% more, worseFs37 Hz –
Qts0.42 −14%, better
Vas27 L −4%
BL6.3 T·m −5%
Xmax11 mm +75%, better
Sensitivity86.5 dB –
Sica6.5 H 1.5 CP
£57.12 · 41% more, worseFs45 Hz +23%, worse
Qts0.42 −14%, better
Vas20.2 L −28%, better
BL7.0 T·m +6%
Xmax6 mm −5%
Sensitivity88.2 dB +1.8
WavecorWF168WA06
£58.18 · 43% more, worseFs41 Hz +11%, worse
Qts0.50 –
Vas27.7 L –
BL6.4 T·m −3%
Xmax3 mm −52%, worse
Sensitivity87.5 dB +1.1
WavecorWF168WA02
£61.21 · 51% more, worseFs49 Hz +32%, worse
Qts0.52 +6%
Vas24.6 L −13%, better
BL6.4 T·m −3%
Xmax3 mm −52%, worse
Sensitivity89.2 dB +2.8, better
MonacorSPH-175HQ
£70.01 · 72% more, worseFs39 Hz +5%
Qts0.42 −14%, better
Vas33 L +17%, worse
BL6.4 T·m −3%
Xmax5.5 mm −13%, worse
Sensitivity88 dB +1.6
Dayton AudioRS180-4
£70.95 · 75% more, worseFs38 Hz +4%
Qts0.46 −6%
Vas21.2 L −25%, better
BL4.7 T·m −29%, worse
Xmax6 mm −5%
Sensitivity85.1 dB −1.3
Dayton AudioRS180S-8
£93.83 · 131% more, worseFs38 Hz –
Qts0.36 −27%, better
Vas23 L −18%, better
BL7.3 T·m +10%, better
Xmax6 mm −5%
Sensitivity86 dB –

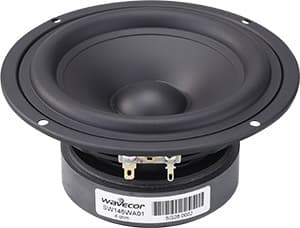

WavecorSW146WA01
