Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Not enough T/S data
Missing Le, RMS power
Wavecor WF168WA06 8Ω
LF DriverMedia
Wavecor
WF168WA06
Image unavailable
Overview
LF DriverWF168WA series
Wavecor
Wavecor WF168WA06
Wavecor WF168WA06 is a 6.5" 8 ohm LF driver. The validated T/S data includes Fs 41Hz, Qts 0.50, Vas 27.7L, Xmax 3mm, sensitivity 87.5dB, plus 39cm³ Vd and 76 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
6.5"
Impedance
8Ω
Sensitivity
87.5dB
EBP
76
Either alignment
Vd
39cm³

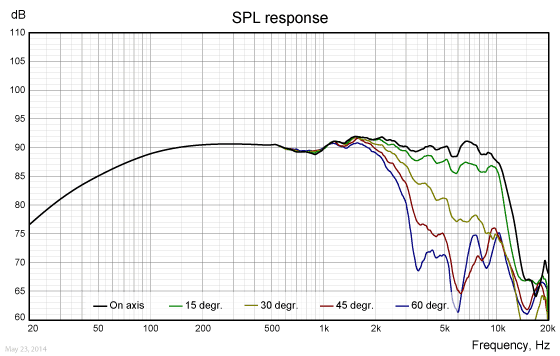

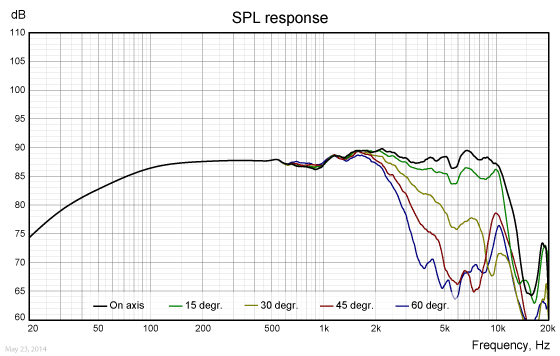

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.

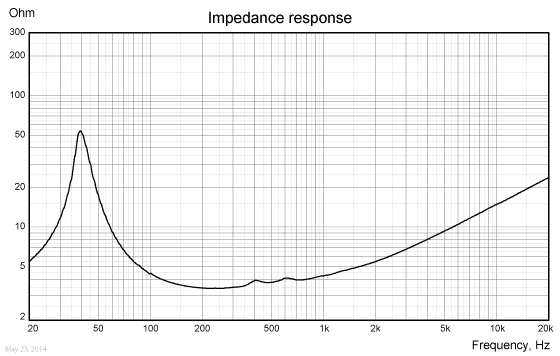

FR040WA01 impedance240 ptsp2medium

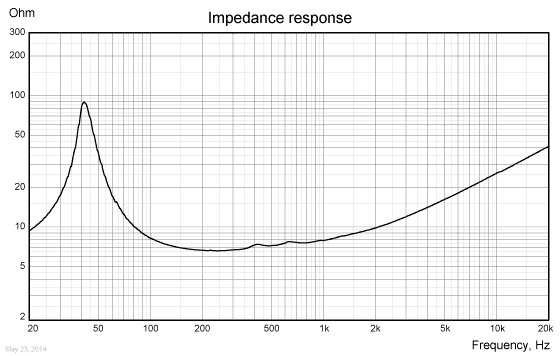

FR040WA02 impedance240 ptsp2medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
FR040WA01 impedance
Impedance response
240 plotted pointsMedium confidence640 selected pixels of 640 - Trace datasheet-response-trace-poc/v1
FR040WA02 impedance
Impedance response
240 plotted pointsMedium confidence633 selected pixels of 633
T/S Parameters
Valid
Fs41Hz
Qts0.50
Qes0.54
Qms7.0
Vas27.7L
Re6.4Ω
BL6.4Tm
Sd131cm²
Mms13g
Xmax3.0mm
SPL88dB
Impedance8Ω
Voice Coil32mm
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Not enough T/S data
Missing Le, RMS power
BASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Not enough T/S data
Missing Le, RMS power
VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Not enough T/S data
Missing Le, RMS power
00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Diameter165.1mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Image unavailable
Reference
Wavecor
WF168WA06
6.5"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
93%
Similarity
Wavecor
WF168WA02
6.5"
Xmax3mm0%
Qts0.52+4%
BL6.4Tm0%
Vas24.6L-11%
Qes0.56+4%
86%
Similarity
£34.80
Monacor
SPH-174KE
6.5"
Xmax3mm0%
Qts0.51+2%
BL5.9Tm-8%
Vas26L-6%
Qes0.64+19%
78%
Similarity
Wavecor
WF166TU02
6.5"
Xmax3mm0%
Qts0.48-4%
BL5Tm-22%
Vas22.3L-19%
Qes0.5-7%
78%
Similarity
£91.95
Monacor
SPH-170
6.5"
Xmax3mm0%
Qts0.44-12%
BL5.9Tm-8%
Vas37L+34%
Qes0.55+2%
74%
Similarity
£36.95
Monacor
SPM-165/8
6.5"
Xmax3mm0%
Qts0.55+10%
BL5.8Tm-9%
Vas33L+19%
Qes0.67+24%
Image unavailable
71%
Similarity
Wavecor
WF168WA05
6.5"
Xmax3mm0%
Qts0.42-16%
BL5Tm-22%
Vas27.7L0%
Qes0.45-17%
71%
Similarity
Wavecor
WF168WA01
6.5"
Xmax3mm0%
Qts0.43-14%
BL5.1Tm-20%
Vas24.6L-11%
Qes0.46-15%
71%
Similarity
SEAS
H1794-08 FEA18RCZ
6.5"
Xmax3mm0%
Qts0.39-22%
BL6.6Tm+3%
Vas31L+12%
Qes0.42-22%
66%
Similarity
£71.95
Scanspeak
18W/8424G00
7"
Xmax2.6mm-13%
Qts0.45-10%
BL6.6Tm+3%
Vas20.3L-27%
Qes0.51-6%
65%
Similarity
Wavecor
WF166TU01
6.5"
Xmax3.5mm+17%
Qts0.45-10%
BL5.2Tm-19%
Vas23.2L-16%
Qes0.47-13%
65%
Similarity
Tang Band
W6-2144
6"
Xmax3mm0%
Qts0.45-10%
BL5.5Tm-15%
Vas34.6L+25%
Qes0.62+15%
Image unavailable
58%
Similarity
Wavecor
WF146OM02
5.75"
Xmax3.3mm+10%
Qts0.51+2%
BL5.4Tm-16%
Vas13.6L-51%
Qes0.55+2%
