Overview
LF DriverDiscovery series
Scanspeak

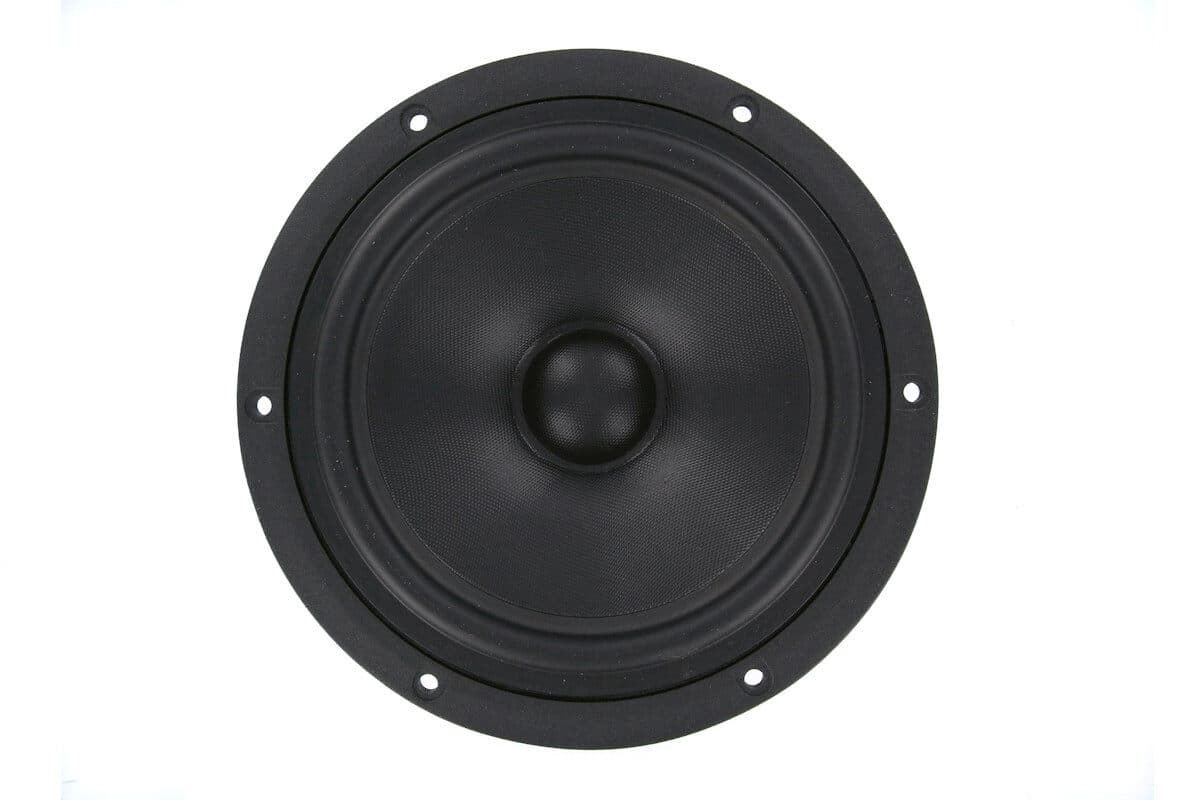

Scanspeak 18W/8424G00
Scanspeak 18W/8424G00 is a 7" 8 ohm LF driver rated at 50W RMS. The validated T/S data includes Fs 54Hz, Qts 0.45, Vas 20.3L, Xmax 2.6mm, sensitivity 90dB, plus 36cm³ Vd and 106 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £71.95.
Size
7"
Impedance
8Ω
RMS Power
50W
Sensitivity
90.0dB
EBP
106
Vented alignment
Vd
36cm³
T/S Parameters
Valid
Fs54Hz
Qts0.45
Qes0.51
Qms4.0
Vas20.3L
Re5.7Ω
Le0.69mH
BL6.6Tm
Sd137cm²
Mms11g
Xmax2.6mm
SPL90dB
Power50W
Impedance8Ω
Min Impedance6.4Ω
Voice Coil25mm
Pricing & availability
Price definitionsPrice movement
Other offers
1 vendorsoundimports
Updated 11 Sept 2026
Source: inc VAT
£64.40
inc VAT
Out of stock
Best current price
Updated 11 Sept 2026
willyshifi
£71.95
inc VAT
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Diameter180.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Scanspeak
18W/8424G00
7"
Best current price
£71.95
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
51%
Similarity
52% cheaper£34.80
Monacor
SPH-174KE
6.5"
Lower price
Xmax3mm+15%
Qts0.51+13%
BL5.9Tm-10%
Vas26L+28%
Qes0.64+25%
62%
Similarity
£71.95
Scanspeak
18W/4424G00
7"
Xmax2.8mm+8%
Qts0.38-16%
BL5.2Tm-21%
Vas24.1L+19%
Qes0.42-18%
69%
Similarity
Monacor
SP-167E
6.5"
Xmax2.5mm-4%
Qts0.41-9%
BL5.4Tm-18%
Vas17.9L-12%
Qes0.48-6%
64%
Similarity
PRV Audio
8MR500-4
8"
Xmax3.3mm+25%
Qts0.46+2%
BL6.5Tm-2%
Vas20.8L+2%
Qes0.48-6%
64%
Similarity
Wavecor
WF166TU02
6.5"
Xmax3mm+15%
Qts0.48+7%
BL5Tm-24%
Vas22.3L+10%
Qes0.5-2%
Image unavailable
62%
Similarity
Wavecor
WF168WA06
6.5"
Xmax3mm+15%
Qts0.5+11%
BL6.4Tm-3%
Vas27.7L+36%
Qes0.54+6%
61%
Similarity
Wavecor
WF168WA02
6.5"
Xmax3mm+15%
Qts0.52+16%
BL6.4Tm-3%
Vas24.6L+21%
Qes0.56+10%
59%
Similarity
Wavecor
WF168WA01
6.5"
Xmax3mm+15%
Qts0.43-4%
BL5.1Tm-23%
Vas24.6L+21%
Qes0.46-10%
52%
Similarity
SEAS
H1794-08 FEA18RCZ
6.5"
Xmax3mm+15%
Qts0.39-13%
BL6.6Tm0%
Vas31L+53%
Qes0.42-18%
Image unavailable
52%
Similarity
Wavecor
WF168WA05
6.5"
Xmax3mm+15%
Qts0.42-7%
BL5Tm-24%
Vas27.7L+36%
Qes0.45-12%
50%
Similarity
Sica
6 L 1.5 SL
6"
Xmax2.5mm-4%
Qts0.39-13%
BL7.5Tm+14%
Vas11L-46%
Qes0.47-8%
47%
Similarity
Sica
6 E 1.5 CS
6"
Xmax2.5mm-4%
Qts0.38-16%
BL7.5Tm+14%
Vas11.3L-44%
Qes0.45-12%
