Overview
LF Driver
Sica

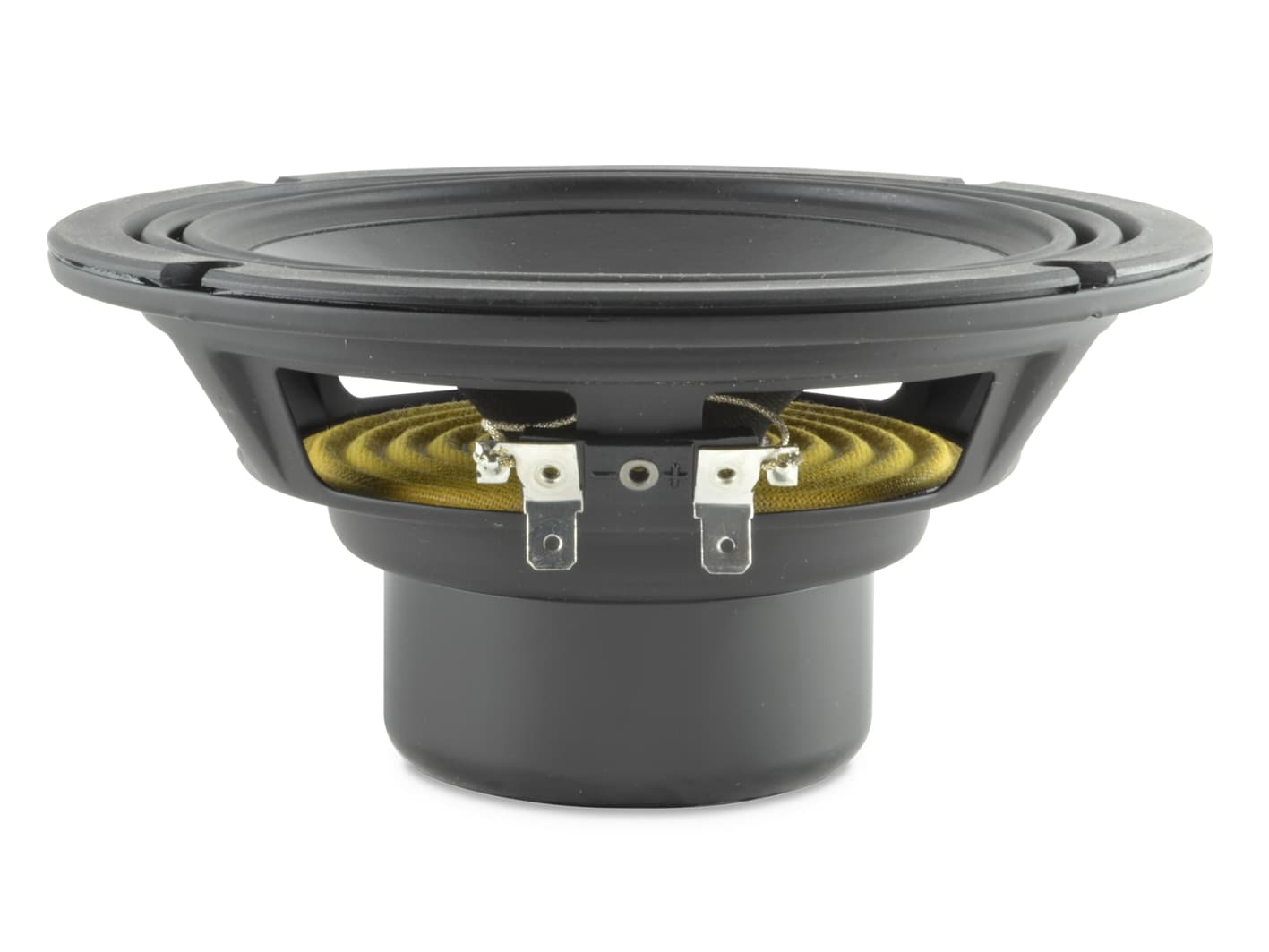

Sica 6 L 1.5 SL
Sica 6 L 1.5 SL is a 6" 8 ohm LF driver rated at 130W RMS. The validated T/S data includes Fs 59Hz, Qts 0.39, Vas 11L, Xmax 2.5mm, sensitivity 88.8dB, plus 31cm³ Vd and 126 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
6"
Impedance
8Ω
RMS Power
130W
Sensitivity
88.8dB
91.0dBmanufacturer; using T/S-derived value (2.2dB delta).
EBP
126
Vented alignment
Vd
31cm³
T/S Parameters
Valid
Fs59Hz
Qts0.39
Qes0.47
Qms2.3
Vas11.0L
Re5.0Ω
Le0.48mH
BL7.5Tm
Sd123cm²
Mms14g
Xmax2.5mm
SPL89dB
Power130W
Impedance8Ω
Voice Coil38mm
Flux Density1.14T
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight0.9kg
Diameter165.8mm
Overall Depth79.2mm
Cutout Diameter142.0mm
Bolt Circle Diameter156.0mm
