5-inch LF driver · 50 W

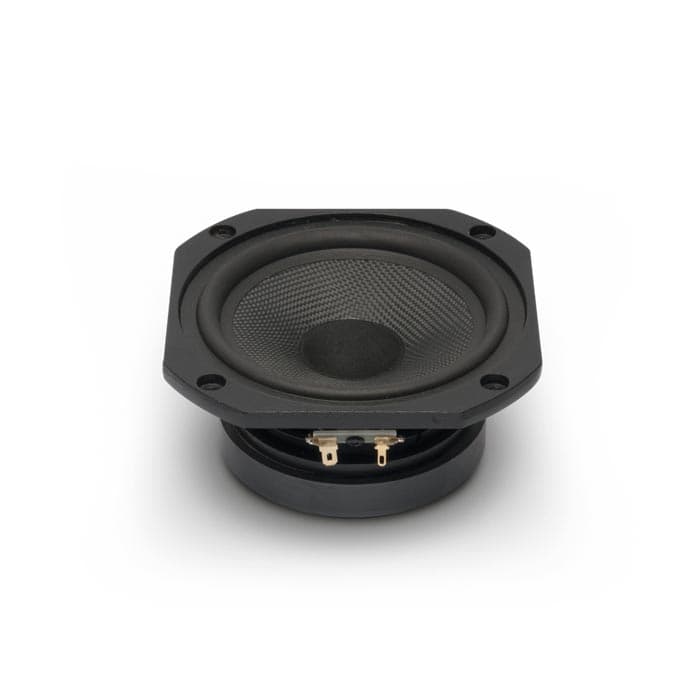

Fane STUDIO 5FRK 4Ω
4 Ω · 65–7000 Hz
No current price
- Fs
- 58Hz
- Xmax
- 2.4mm
- SPL
- 90dB
- Pe
- 50W
- BL
- 6.8T·m
- Vd
- 22cm³
- Qts
- 0.36
- Vas
- 11L
Fane STUDIO 5FRK is a 5-inch 4 ohm LF driver rated at 50 W RMS. The validated T/S data includes Fs 58 Hz, Qts 0.36, Vas 10.9 L, Xmax 2.4 mm, sensitivity 89.5 dB, plus 22 cm³ Vd and 153 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 58Hz
- Qts
- 0.36
- Qes
- 0.38
- Qms
- 7.5
- Vas
- 10.9L
- Re
- 6.2Ω
- Le
- 0.88mH
Motor and cone
- BL
- 6.8T·m
- Sd
- 90cm²
- Mms
- 8g
- Xmax
- 2.4mm
- Vd †
- 22cm³
Power and response
- Sensitivity †
- 89.5dB
- Manufacturer sensitivity
- 90.5dB
- Power
- 50W
- Impedance
- 4Ω
- Range
- 65–7000Hz
- EBP †
- 153 · Leans vented
Size and mounting
- Diameter
- 152.4mm
- Depth
- 66.8mm
- Weight
- 1.4kg
Other published values
- Cms
- 0.95mm/N
- Power Peak
- 200
- Power Program
- 100
Sensitivity shows 89.5 dB, calculated from the T/S values. Fane publishes 90.5 dB, 1.0 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Fane lists
LF · Primary · 5″
- BL
- 6.8T·m
- Fs
- 58Hz
- Le
- 0.88mH
- Re
- 6.2Ω
- Sd
- 90cm²
- Cms
- 0.95mm/N
- Mms
- 8g
- Qes
- 0.38
- Qms
- 7.5
- Qts
- 0.36
- SPL
- 89.5dB
- Vas
- 10.9L
- Xmax
- 2.4mm
- Power
- 50W
- Impedance
- 4Ω
- Power Peak
- 200
- Sensitivity
- 90.5dB
- Low limit
- 65Hz
- Power Program
- 100
- Calculated sensitivity †
- 89.5dB
- High limit
- 7000Hz
- Manufacturer sensitivity
- 90.5dB
- Weight
- 1.4kg
- Diameter
- 152.4mm
- Depth
- 66.8mm
