LF Driver
Sica

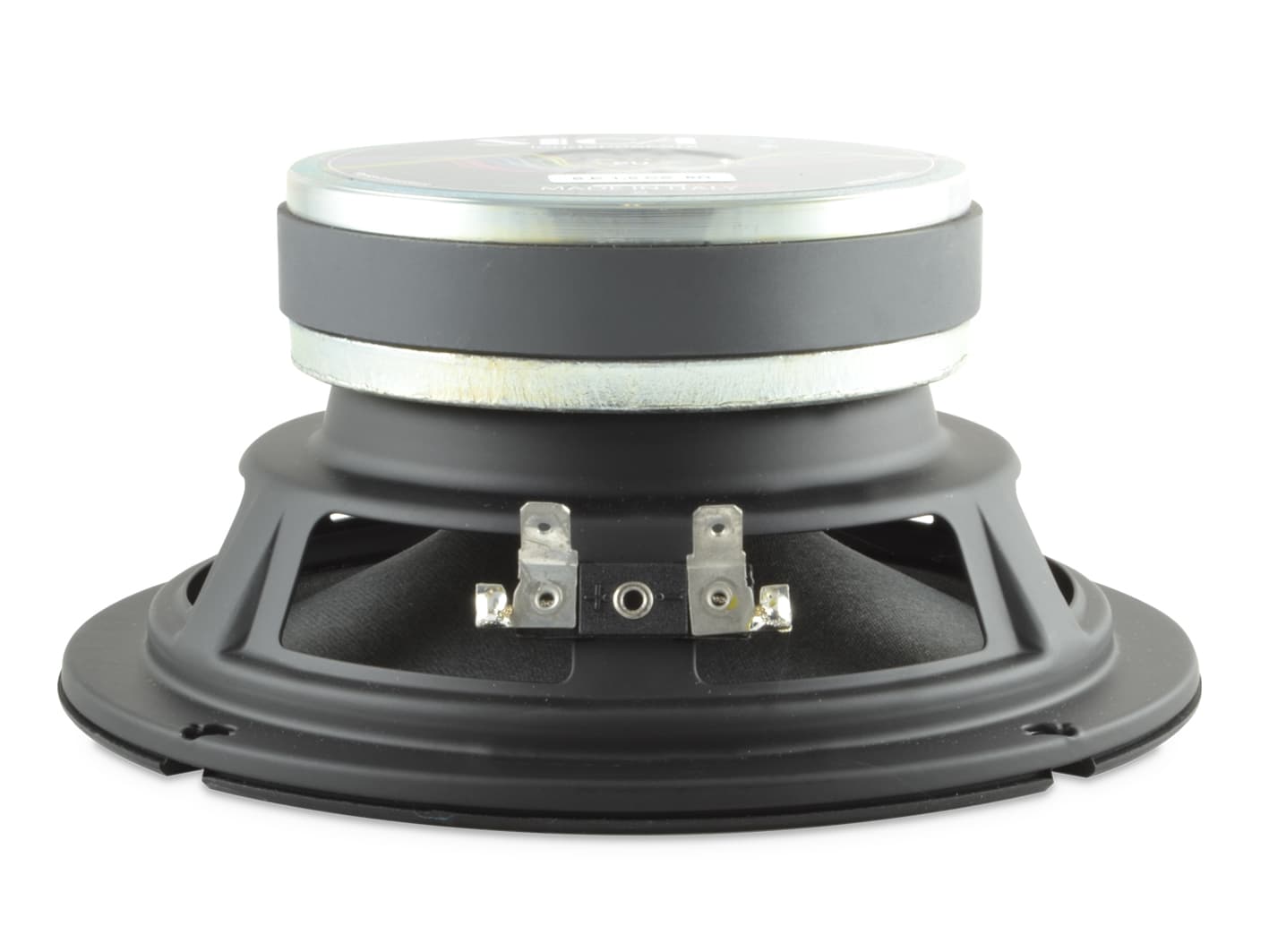

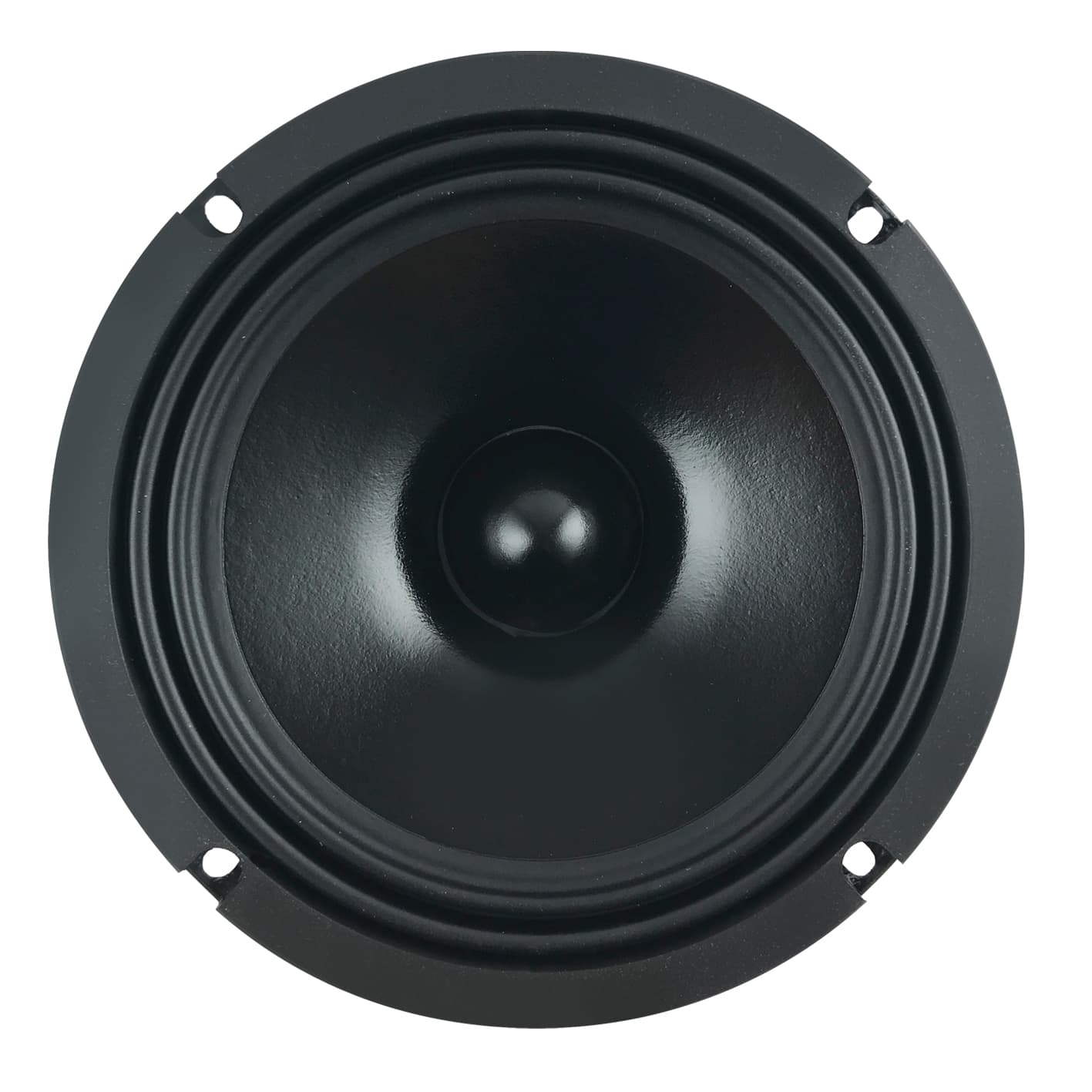

Sica 6 E 1.5 CS
Sica 6 E 1.5 CS is a 6" 8 ohm LF driver rated at 100W RMS. The validated T/S data includes Fs 60Hz, Qts 0.38, Vas 11.3L, Xmax 2.5mm, sensitivity 89.4dB, plus 31cm³ Vd and 133 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
6"
Impedance
8Ω
RMS Power
100W
Sensitivity
89.4dB
91.5dBmanufacturer; using T/S-derived value (2.1dB delta).
EBP
133
Vented alignment
Vd
31cm³
T/S Parameters
Valid
Fs60Hz
Qts0.38
Qes0.45
Qms2.4
Vas11.3L
Re5.0Ω
Le0.61mH
BL7.5Tm
Sd123cm²
Mms13g
Xmax2.5mm
SPL89dB
Power100W
Impedance8Ω
Voice Coil38mm
Flux Density1.00T
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.5kg
Diameter165.8mm
Overall Depth75.7mm
Cutout Diameter142.0mm
Bolt Circle Diameter156.0mm
