Overview
LF Driver
Tang Band

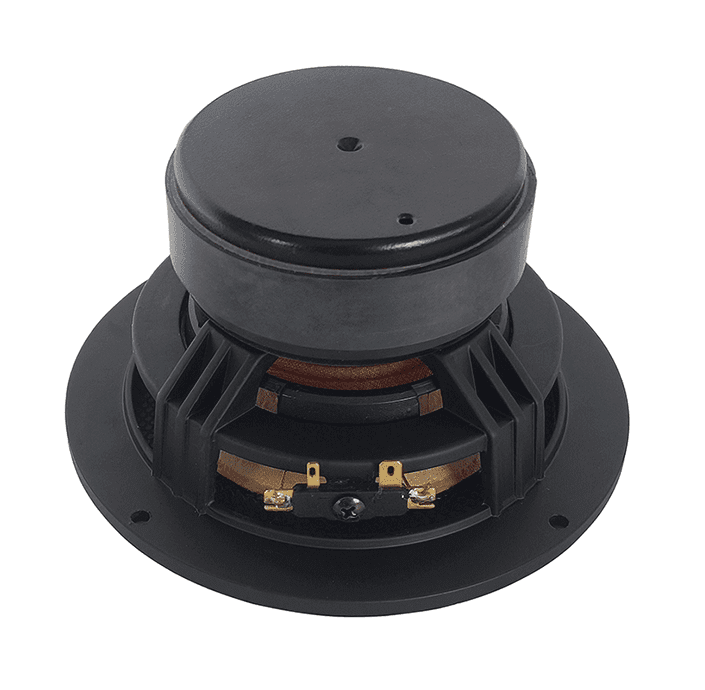

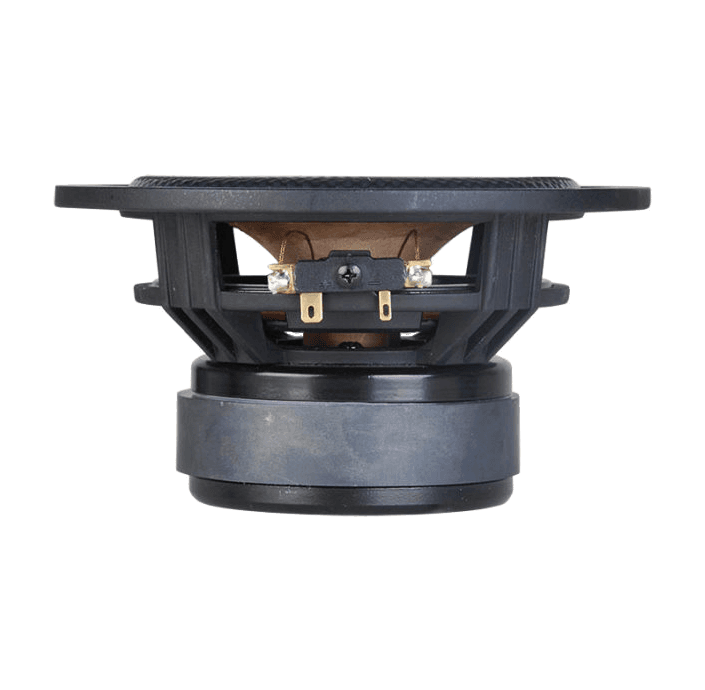

Tang Band W5-2143
Tang Band W5-2143 is a 5" 8 ohm LF driver rated at 30W RMS. The validated T/S data includes Fs 55Hz, Qts 0.38, Vas 19L, Xmax 2.5mm, sensitivity 90.7dB, plus 24cm³ Vd and 128 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
5"
Impedance
8Ω
RMS Power
30W
Sensitivity
90.7dB
EBP
128
Vented alignment
Vd
24cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
spl240 ptsp1medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
spl
Frequency response
240 plotted pointsMedium confidence1,586 selected pixels of 2,053 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence3,125 selected pixels of 3,125
T/S Parameters
Valid
Fs55Hz
Qts0.38
Qes0.43
Qms3.2
Vas19.0L
Re6.3Ω
Le0.02mH
BL5.4Tm
Sd94cm²
Mms6g
Xmax2.5mm
SPL91dB
Power30W
Impedance8Ω
Pricing & availability
Price definitionsVendor offers
1 vendorsoundimports
Updated 11 Sept 2026
Source: inc VAT
£120.24
inc VAT
Out of stock
