Monacor SP-100/8 8 Ohm woofer specs & UK prices | bits

Monacor SP-100/8 8Ω

LF Driver

Watch price Simulate

Media

Monacor SP-100/8 4 inch 8 ohm loudspeaker driver view 1

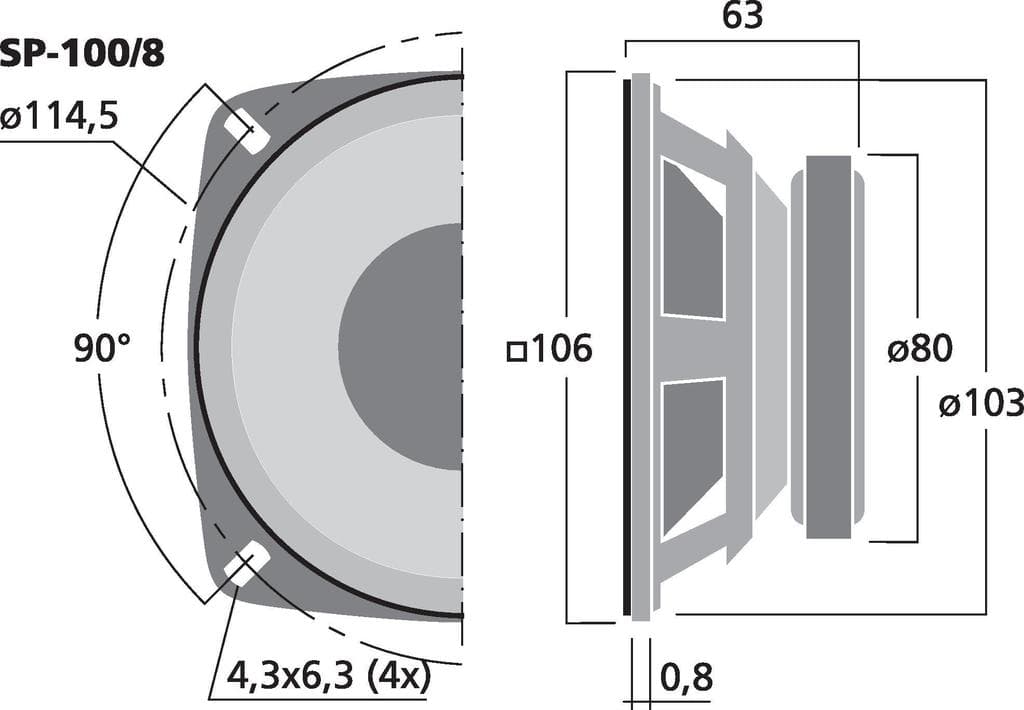

Monacor SP-100/8 4 inch 8 ohm loudspeaker driver view 2

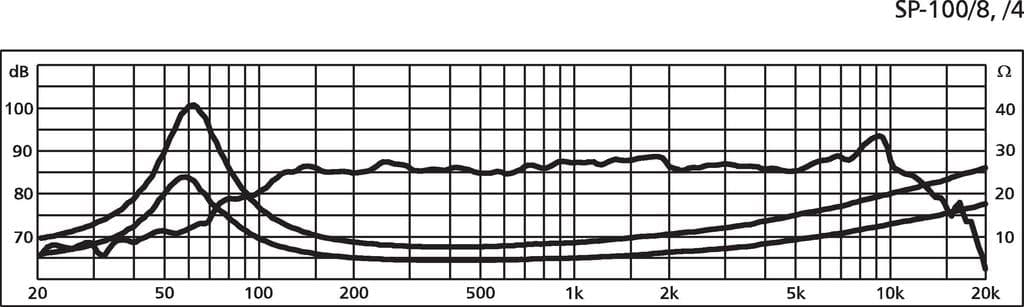

Monacor SP-100/8 4 inch 8 ohm loudspeaker driver view 3

Auto-advancing

Overview

LF DriverSP series

Monacor SP-100/8

Monacor SP-100/8 is a 4" 8 ohm LF driver rated at 30W RMS. The validated T/S data includes Fs 61Hz, Qts 0.37, Vas 4.7L, Xmax 2.5mm, sensitivity 85.9dB, plus 13cm³ Vd and 139 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.

Size

4"

Impedance

8Ω

RMS Power

30W

Sensitivity

85.9dB

88.0dBmanufacturer; using T/S-derived value (2.1dB delta).

EBP

139

Vented alignment

V_d

13cm³

T/S Parameters

Valid

Canonical

Fs61Hz

Qts0.37

Qes0.44

Qms2.3

Vas4.7L

Re6.5Ω

Le0.40mH

BL5.5Tm

Sd52cm²

Mms6g

Xmax2.5mm

SPL86dB

Power30W

Impedance8Ω

F Low3Hz

F High7000Hz

Voice Coil25mm

What this validation status means

Pricing & availability

Price definitions

No current price found

Pricing may appear after the next vendor refresh.

Use this driver

Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.

Files use canonical values. Required mechanical fields are derived only where the target format needs them.

Hornresp

.txt · Hornresp driver database

Driver file ready to place in Hornresp’s Drivers folder.

Download for Hornresp

WinISD

.wdr · WinISD driver editor

Native WinISD driver record with the required SI conversions.

Download for WinISD

BASTA!

.bastaelement · BASTA! loudspeaker simulator

Native BASTA! element file using its documented SI-unit fields.

Download for BASTA!

VituixCAD

.wdr · VituixCAD 2 Enclosure

A WinISD driver file that VituixCAD imports directly.

Download for VituixCAD

00 Simulator

Direct import · Web app

Start a new enclosure simulation with this driver already loaded.

Open in 00 Simulator

Copy spec sheet

Plain text · Clipboard

Copy the available values as a clean label-and-value list.

Dimensions & Physical

Weight0.8kg

Diameter127.0mm

Overall Depth63.0mm

Cutout Diameter103.0mm
