LF DriverExcel series
SEAS
SEAS E0044-08S W12CY003
SEAS E0044-08S W12CY003 is a 15" 8 ohm LF driver rated at 70W RMS. The validated T/S data includes Fs 60Hz, Qts 0.36, Vas 4L, Xmax 3mm, sensitivity 85dB, plus 15cm³ Vd and 136 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
15"
Impedance
8Ω
RMS Power
70W
Sensitivity
85.0dB
EBP
136

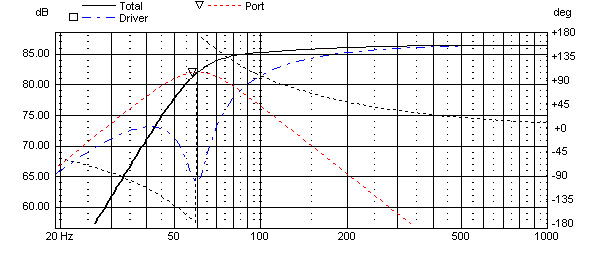

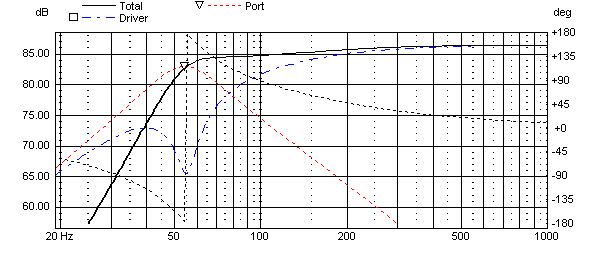

Vented alignment
Vd
15cm³

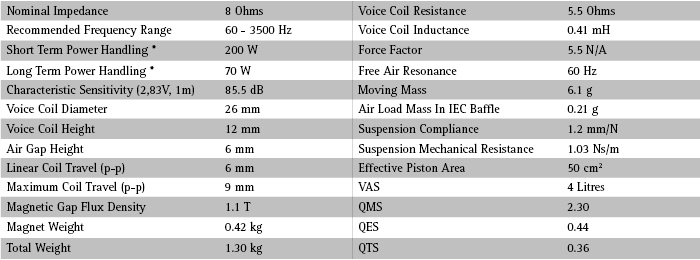

T/S Parameters
Valid
Fs60Hz
Qts0.36
Qes0.44
Qms2.3
Vas4.0L
Re5.5Ω
Le0.41mH
BL5.5Tm
Sd50cm²
Mms6g
Xmax3.0mm
SPL85dB
Power70W
Impedance8Ω
F Low60Hz
F High3500Hz
Voice Coil26mm
Flux Density1.10T
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

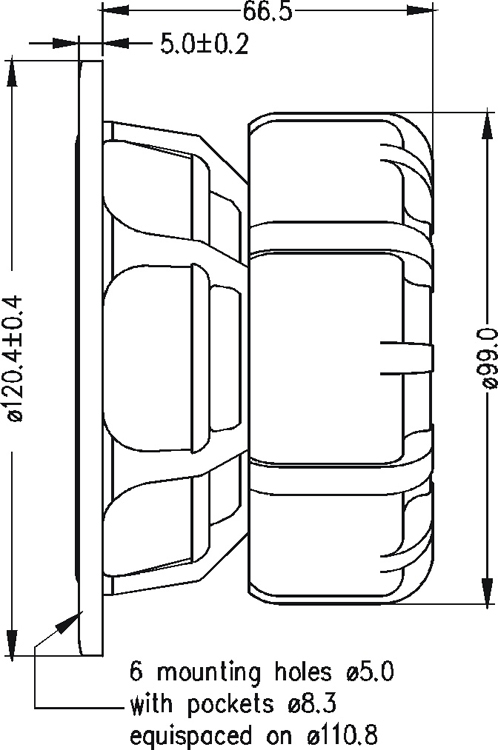

Dimensions & Physical
Weight1.3kg
