LF DriverRevelator series
Scanspeak

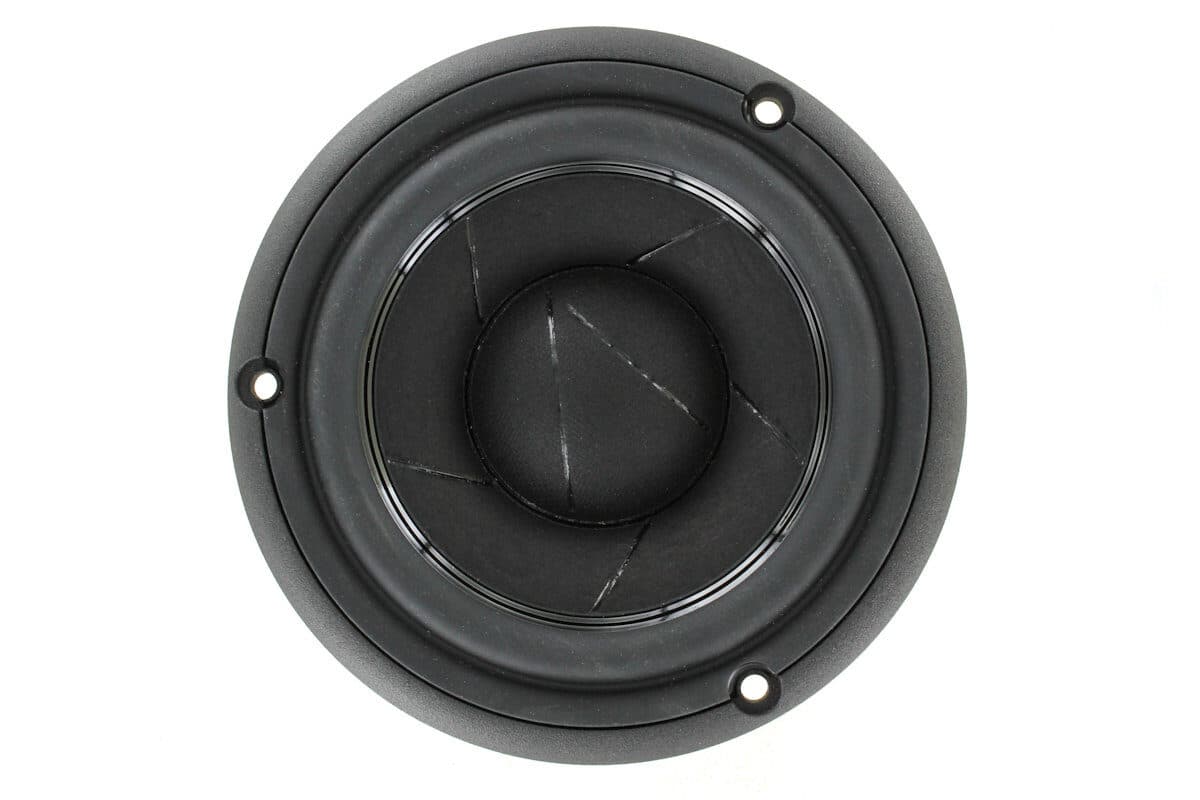

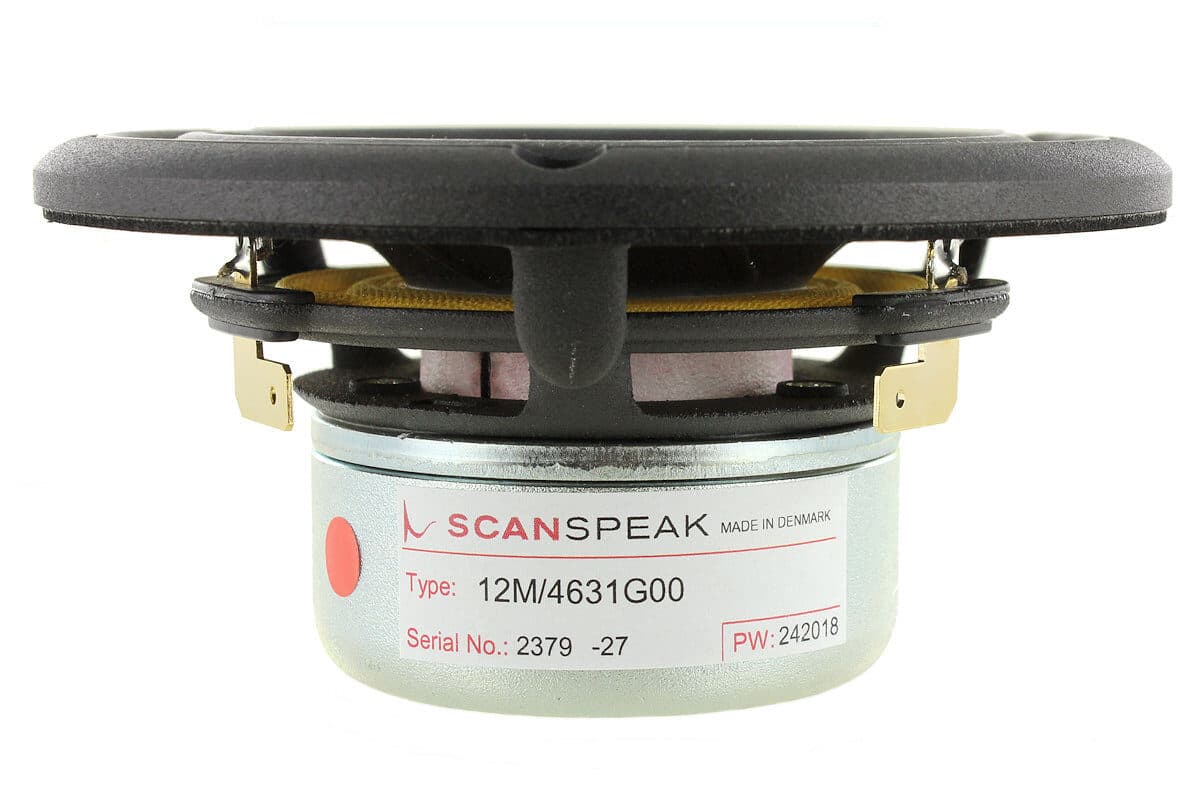

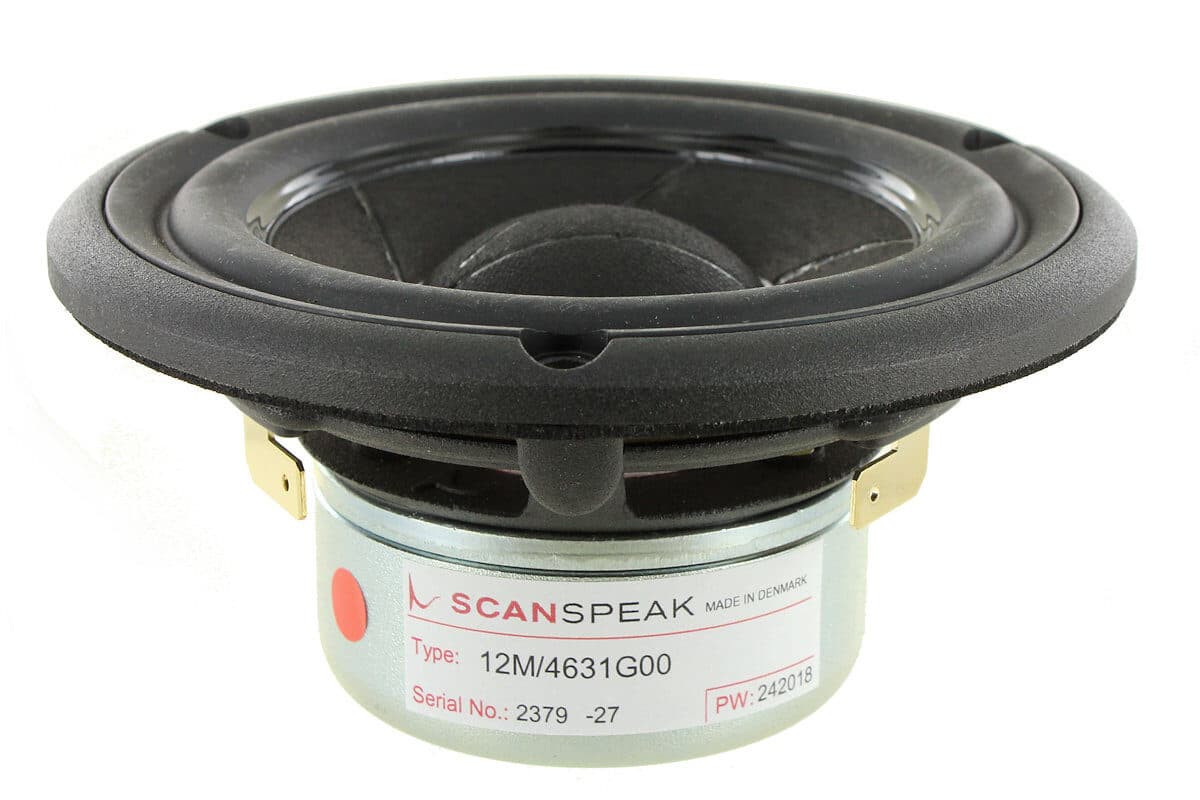

Scanspeak 12M/4631G00
Scanspeak 12M/4631G00 is a 5" 4 ohm LF driver rated at 40W RMS. The validated T/S data includes Fs 75Hz, Qts 0.33, Vas 2.3L, Xmax 3mm, sensitivity 86.5dB, plus 15cm³ Vd and 214 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £270.95.
Size
5"
Impedance
4Ω
RMS Power
40W
Sensitivity
86.5dB
89.0dBmanufacturer; using T/S-derived value (2.5dB delta).
EBP
214
Vented alignment
Vd
15cm³
T/S Parameters
Valid
Fs75Hz
Qts0.33
Qes0.35
Qms5.6
Vas2.3L
Re3.2Ω
Le0.22mH
BL5.3Tm
Sd49cm²
Mms7g
Xmax3.0mm
SPL87dB
Power40W
Impedance4Ω
Min Impedance3.8Ω
Voice Coil38mm
Pricing & availability
Price definitionsPrice movement
Best current price
£270.95
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Diameter120.0mm
