Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespSB Acoustics MR16TX-8 8Ω
LF DriverMedia
Overview
LF DriverMR16 series
SB Acoustics
SB Acoustics MR16TX-8
SB Acoustics MR16TX-8 is a 6" 8 ohm LF driver rated at 30W RMS. The validated T/S data includes Fs 35Hz, Qts 0.31, Vas 38.9L, Xmax 5.7mm, sensitivity 89.2dB, plus 67cm³ Vd and 109 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £249.00.
Size
6"
Impedance
8Ω
RMS Power
30W
Sensitivity
89.2dB
EBP
109
Vented alignment
Vd
67cm³

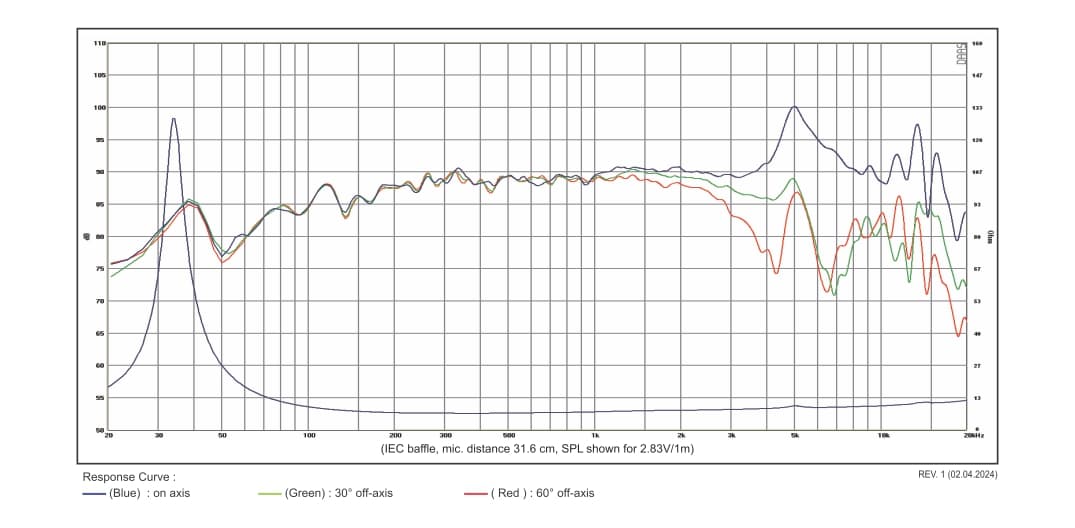

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
30 degrees240 ptsp1medium
60 degrees240 ptsp1medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
30 degrees
Frequency response
240 plotted pointsMedium confidence1,410 selected pixels of 2,607 - Trace datasheet-response-trace-poc/v1
60 degrees
Frequency response
240 plotted pointsMedium confidence938 selected pixels of 2,919
T/S Parameters
Valid
Fs35Hz
Qts0.31
Qes0.32
Qms6.5
Vas38.9L
Re6.2Ω
Le0.11mH
BL6.6Tm
Sd117cm²
Mms10g
Xmax5.7mm
SPL89dB
Power30W
Impedance8Ω
Voice Coil36mm
Flux Density1.17T
Pricing & availability
Price definitionsPrice movement
Other offers
1 vendorsoundimports
Updated 11 Sept 2026· 8Ω
Source: inc VAT
£283.49
inc VAT
Out of stock
Best current price
Updated 11 Sept 2026
leanaudio
£249.00
inc VAT·2 in stock
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.0kg
