HiViE6.5
£64.28 · 73% less, betterFs37 Hz −14%, better
Qts0.32 +3%
Vas31 L −16%, better
BL8.1 T·m –
Xmax5.8 mm +60%, better
Sensitivity88.3 dB −3.2, worse
7-inch LF driver · MT19 series · 39 mm voice coil · 60 W

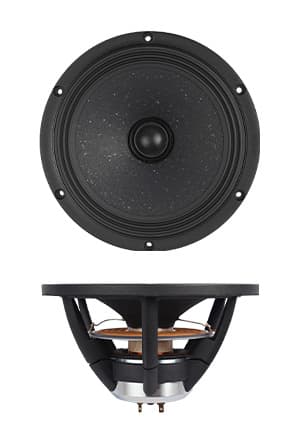

SB Acoustics MT19CP-8 8Ω
8 Ω
£262.03
2.6%Willys-Hifi · All 3 offers
- Fs
- 43Hz
- Xmax
- 3.6mm
- SPL
- 92dB
- Pe
- 60W
- BL
- 8.1T·m
- Vd
- 55cm³
- Qts
- 0.31
- Vas
- 37L

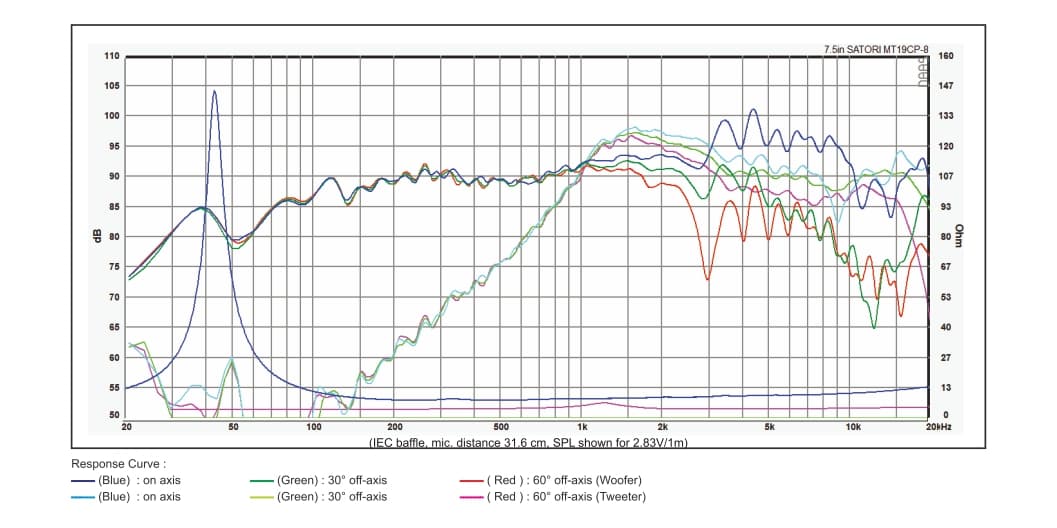

Published graphs
SB Acoustics MT19CP-8 is a 7-inch 8 ohm LF driver rated at 60 W RMS. The validated T/S data includes Fs 43 Hz, Qts 0.31, Vas 37.1 L, Xmax 3.6 mm, sensitivity 91.5 dB, plus 55 cm³ Vd and 130 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £237.29.
The published T/S values agree with each other
Thiele/Small
- Fs
- 43Hz
- Qts
- 0.31
- Qes
- 0.33
- Qms
- 6.5
- Vas
- 37.1L
- Re
- 6.5Ω
- Le
- 0.12mH
Motor and cone
- BL
- 8.1T·m
- Sd
- 152cm²
- Mms
- 12g
- Xmax
- 3.6mm
- Vd †
- 55cm³
- Voice coil
- 39mm
- Flux density
- 1.10T
Power and response
- Sensitivity †
- 91.5dB
- Manufacturer sensitivity
- 90dB
- Power
- 60W
- Impedance
- 8Ω
- EBP †
- 130 · Leans vented
Size and mounting
- Weight
- 1.6kg
Other published values
- Cms
- 1.13mm/N
Sensitivity shows 91.5 dB, calculated from the T/S values. SB Acoustics publishes 90.0 dB, 1.5 dB apart.
Excursion and motor values come from the LF section; the frequency range spans every section.
† Calculated by bits from the published values
What this validation status means
Components and manufacturer details
LF · Primary · 7″
- BL
- 8.1T·m
- Fs
- 43Hz
- Le
- 0.12mH
- Re
- 6.5Ω
- Sd
- 152cm²
- Cms
- 1.13mm/N
- Mms
- 12g
- Qes
- 0.33
- Qms
- 6.5
- Qts
- 0.31
- SPL
- 91.5dB
- Vas
- 37.1L
- Xmax
- 3.6mm
- Power
- 60W
- Impedance
- 8Ω
- Flux density
- 1.10T
- Sensitivity
- 90dB
- Calculated sensitivity †
- 91.5dB
- Manufacturer sensitivity
- 90dB
- Voice coil
- 39mm
- Weight
- 1.6kg
02
Compare
Same-size drivers, compared with the MT19CP-8. Clear differences are green when better and red when worse.
This driverMT19CP-8
Best price
£237.29
Fs
43 Hz
Qts
0.31
Vas
37.1 L
BL
8.1 T·m
Xmax
3.6 mm
Sensitivity
91.5 dB
Power
60 W
ETON7-612/C8/32 RP
£97.43 · 59% less, betterFs37 Hz −14%, better
Qts0.30 −3%
Vas28 L −25%, better
BL8.6 T·m +7%
Xmax4.5 mm +25%, better
Sensitivity88.5 dB −3, worse
SEASH1215-08 CA18RNX
£109.67 · 54% less, betterFs35 Hz −19%, better
Qts0.31 –
Vas33 L −11%, better
BL7.2 T·m −11%, worse
Xmax6 mm +67%, better
Sensitivity87.9 dB −3.6, worse
PRV Audio8MB700FT-NDY
£128.52 · 46% less, betterFs70 Hz +63%, worse
Qts0.30 −3%
Vas18.8 L −49%, better
BL12.8 T·m +59%, better
Xmax3.6 mm –
Sensitivity94.9 dB +3.4, better
£158.23 · 33% less, better
Fs29 Hz −33%, better
Qts0.29 −6%
Vas103 L +178%, worse
BL8 T·m –
Xmax4 mm +11%, better
Sensitivity90.7 dB −0.8
Eighteen Sound6NMB900
£159.86 · 33% less, betterFs95 Hz +121%, worse
Qts0.32 +3%
Vas10.3 L −72%, better
BL8.5 T·m +6%
Xmax3 mm −17%, worse
Sensitivity95.9 dB +4.4, better
WavecorWF182BD08
£193.00 · 19% less, betterFs33 Hz −22%, better
Qts0.29 −6%
Vas32.4 L −13%, better
BL8.5 T·m +6%
Xmax5.5 mm +53%, better
Sensitivity88.1 dB −3.4, worse
WavecorWF182BD16
£194.10 · 18% less, betterFs37 Hz −14%, better
Qts0.30 −3%
Vas23 L −38%, better
BL8.5 T·m +6%
Xmax5.5 mm +53%, better
Sensitivity87.8 dB −3.7, worse
Scanspeak21W/8555-10
£220.33 · 7% less, betterFs20 Hz −53%, better
Qts0.31 –
Vas134 L +261%, worse
BL8.2 T·m –
Xmax6.5 mm +81%, better
Sensitivity87.1 dB −4.4, worse
SB AcousticsMR16TX-8
£249.00 · 5% moreFs35 Hz −19%, better
Qts0.31 –
Vas38.9 L +5%
BL6.6 T·m −18%, worse
Xmax5.7 mm +58%, better
Sensitivity89.2 dB −2.3, worse
REDCATT8FHW-2
No current priceFs36 Hz −16%, better
Qts0.35 +13%, worse
Vas34.3 L −8%
BL8.6 T·m +7%
Xmax3.6 mm –
Sensitivity88.3 dB −3.2, worse
No current price
Fs32 Hz −26%, better
Qts0.30 −3%
Vas29 L −22%, better
BL8.5 T·m +6%
Xmax5 mm +39%, better
Sensitivity86.8 dB −4.7, worse
No photo
PHL Audio1362
No current priceFs39 Hz −9%
Qts0.28 −10%
Vas34.8 L −6%
BL8.1 T·m –
Xmax5 mm +39%, better
Sensitivity90.4 dB −1.1
No photo
PHL Audio1362NDU
No current priceFs39 Hz −9%
Qts0.28 −10%
Vas34.8 L −6%
BL8.1 T·m –
Xmax5 mm +39%, better
Sensitivity90.4 dB −1.1
Audio Technology6 A 77 20 06 SD
No current priceFs34 Hz −21%, better
Qts0.32 +3%
Vas44 L +19%, worse
BL8 T·m –
Xmax8 mm +122%, better
Sensitivity88.6 dB −2.9, worse
WavecorWF182BD10
No current priceFs29 Hz −34%, better
Qts0.31 –
Vas32.4 L −13%, better
BL6.5 T·m −19%, worse
Xmax5.5 mm +53%, better
Sensitivity85.7 dB −5.8, worse
WavecorWF182BD18
No current priceFs29 Hz −34%, better
Qts0.31 –
Vas32.4 L −13%, better
BL6.5 T·m −19%, worse
Xmax5.5 mm +53%, better
Sensitivity85.7 dB −5.8, worse
PRV Audio8MB700FT
No current priceFs72 Hz +68%, worse
Qts0.31 –
Vas20 L −46%, better
BL12.3 T·m +52%, better
Xmax3.5 mm –
Sensitivity95.6 dB +4.1, better
PurifiPTT6.5M08-NAA-08
No current priceFs38 Hz −12%, better
Qts0.31 –
Vas21.6 L −42%, better
BL9.6 T·m +19%, better
Xmax2.9 mm −19%, worse
Sensitivity87.6 dB −3.9, worse

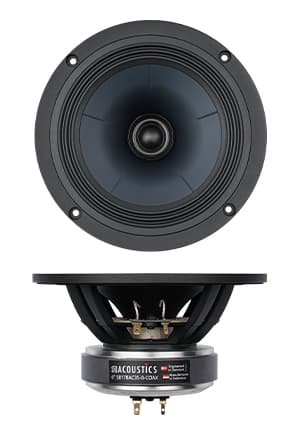

SB AcousticsSB17BAC35-8-COAX
No current priceFs35 Hz −18%, better
Qts0.33 +6%
Vas33.1 L −11%, better
BL5.7 T·m −29%, worse
Xmax3.1 mm −14%, worse
Sensitivity88.1 dB −3.4, worse
CIAREPM160
No current priceFs66 Hz +53%, worse
Qts0.31 –
Vas17.7 L −52%, better
BL8 T·m –
Xmax1.8 mm −50%, worse
Sensitivity94 dB +2.5, better
VoltBM165.4
No current priceFs32 Hz −26%, better
Qts0.30 −3%
Vas32.3 L −13%, better
BL9.6 T·m +19%, better
Xmax6 mm +67%, better
Sensitivity87.2 dB −4.3, worse
WavecorWF182BD15
No current priceFs39 Hz −9%
Qts0.32 +3%
Vas20.8 L −44%, better
BL8.5 T·m +6%
Xmax5.5 mm +53%, better
Sensitivity87.8 dB −3.7, worse
PurifiPTT6.5W04-NAA-08
No current priceFs33 Hz −23%, better
Qts0.30 −3%
Vas23.3 L −37%, better
BL7.7 T·m −4%
Xmax5.9 mm +64%, better
Sensitivity86.3 dB −5.2, worse
No photo
PHL Audio1343
No current priceFs40 Hz −7%
Qts0.28 −10%
Vas29.9 L −19%, better
BL8.1 T·m –
Xmax5 mm +39%, better
Sensitivity90.2 dB −1.3
No photo
PHL Audio1343NDU
No current priceFs40 Hz −7%
Qts0.28 −10%
Vas29.9 L −19%, better
BL8.1 T·m –
Xmax5 mm +39%, better
Sensitivity90.2 dB −1.3
Audio Technology18 H 52 17 06 SD
No current priceFs36 Hz −16%, better
Qts0.28 −10%
Vas34 L −8%
BL6.6 T·m −18%, worse
Xmax6.3 mm +75%, better
Sensitivity88.8 dB −2.7, worse
PurifiPTT6.5X04-NFA-06
No current priceFs30 Hz −30%, better
Qts0.29 −6%
Vas25.9 L −30%, better
BL7.9 T·m –
Xmax9.8 mm +172%, better
Sensitivity85.7 dB −5.8, worse
KartesianWOM185_VKI
No current priceFs32 Hz −26%, better
Qts0.32 +3%
Vas33.6 L −9%
BL10.2 T·m +27%, better
Xmax12 mm +233%, better
Sensitivity87.3 dB −4.2, worse
Dayton AudioPM180-8
No current priceFs53 Hz +24%, worse
Qts0.28 −10%
Vas28 L −25%, better
BL7.7 T·m −4%
Xmax4.6 mm +28%, better
Sensitivity93.5 dB +2, better
Tune the match
Choose the published values that matter to your design. Size stays matched to this driver.
Qts
Qes
VasL
Xmaxmm
BLTm
| Shop | Price | Against the lowest | Stock | Link |
|---|---|---|---|---|
Willys-Hifi | £262.03, the lowest price | Stock not listed | Visit shop at Willys-Hifi | |
SoundImports Import VAT and duty may apply | £237.29 | 11 in stock | Visit shop at SoundImports | |
RumoH Import VAT and duty may apply | £261.06 | Stock not listed | Visit shop at RumoH |
Best price over time
Tracked since 1 Apr
Recent changes
- 1 OctWillys-Hifi£268.95 → £262.03Down 2.6% from £268.95
- 30 SepWillys-Hifi£267.95 → £268.95Up 0.4% from £267.95
- 28 SepWillys-Hifi£266.95 → £267.95Up 0.4% from £266.95
