Overview
LF DriverBM series
Volt

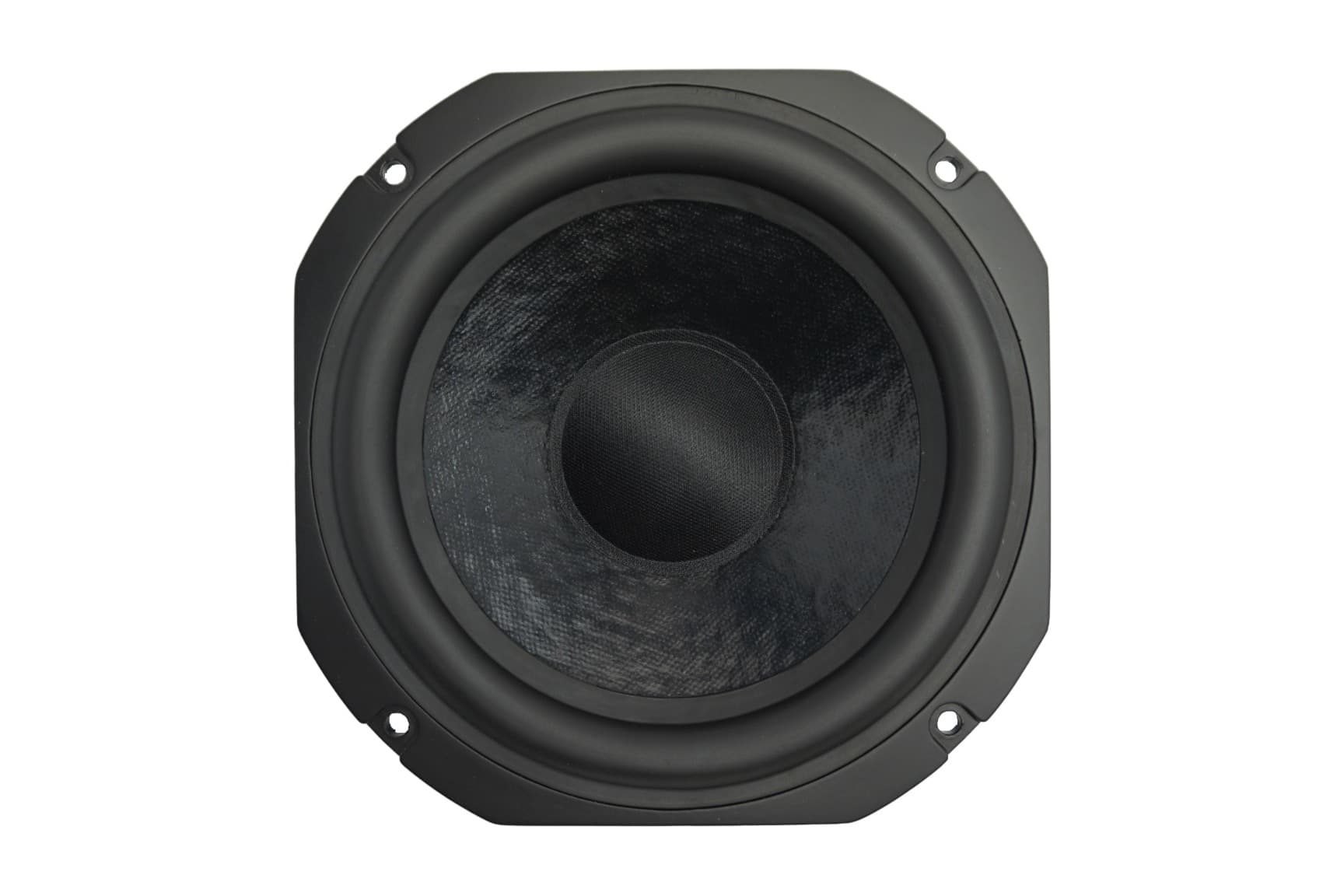

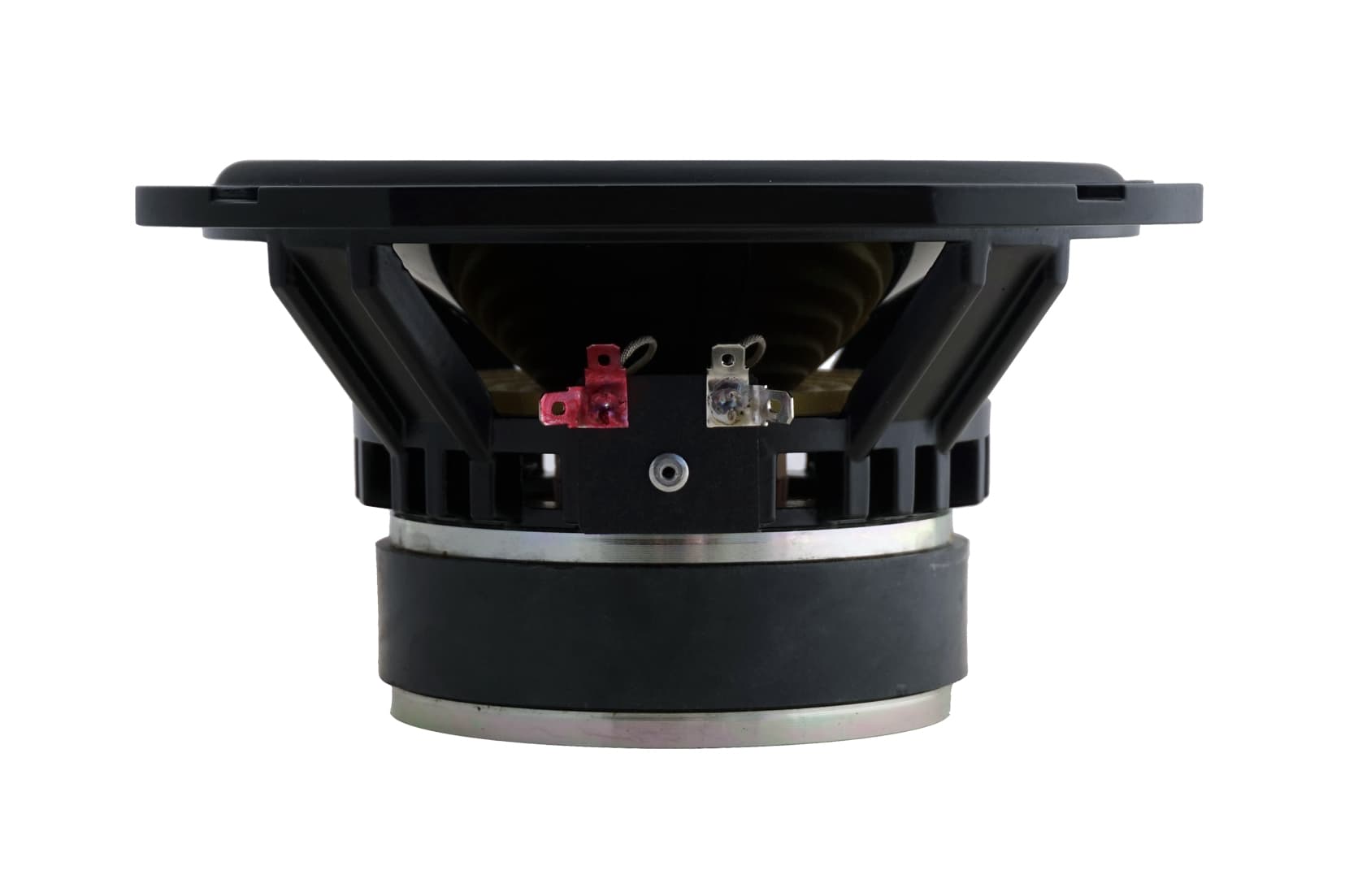

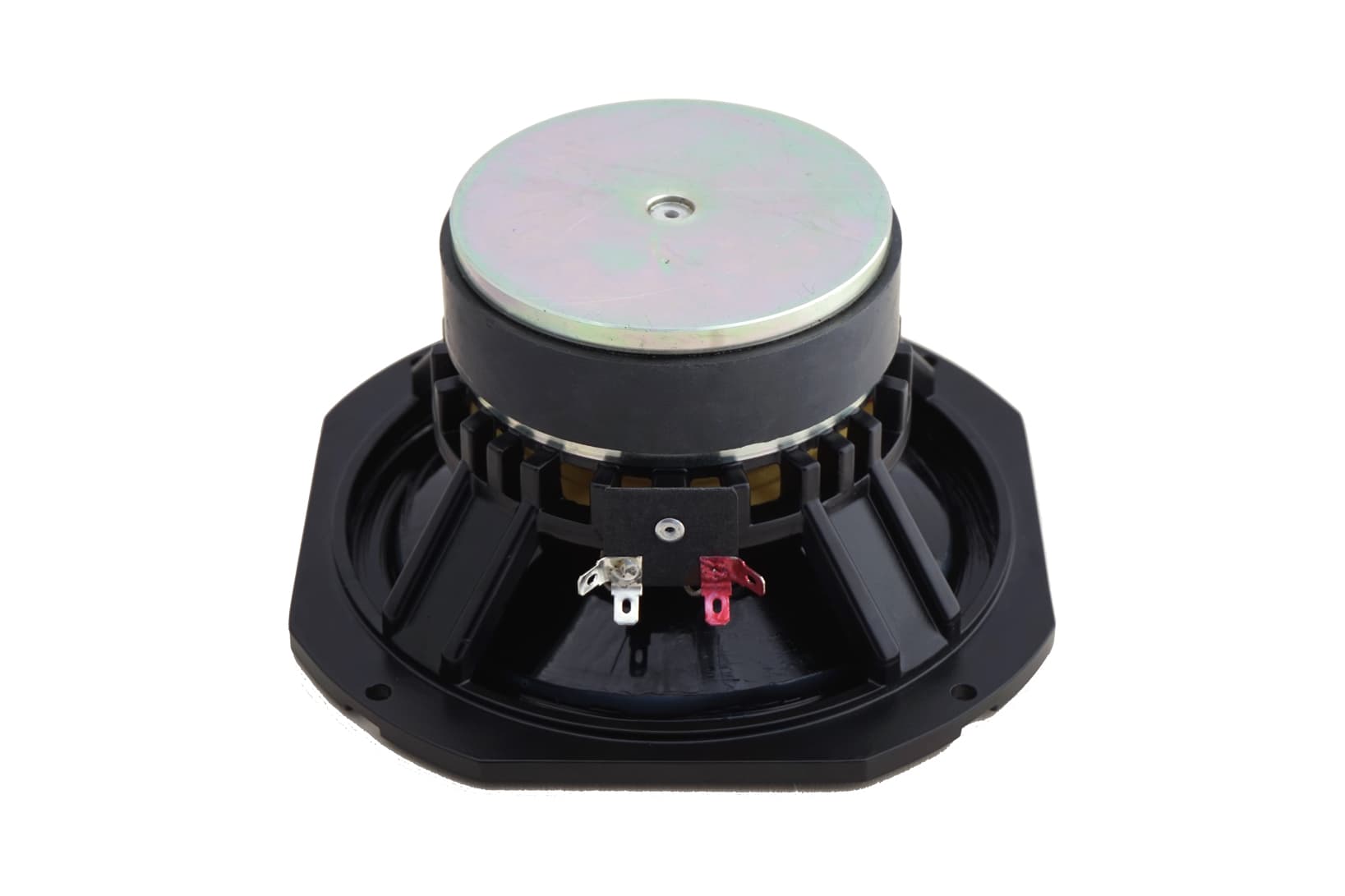

Volt BM165.4
Volt BM165.4 is a 6.5" 8 ohm LF driver rated at 100W RMS. The validated T/S data includes Fs 32Hz, Qts 0.30, Vas 32.3L, Xmax 6mm, sensitivity 87.2dB, plus 92cm³ Vd and 100 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £170.59.
Size
6.5"
Impedance
8Ω
RMS Power
100W
Sensitivity
87.2dB
89.0dBmanufacturer; using T/S-derived value (1.8dB delta).
EBP
100
Either alignment
Vd
92cm³
T/S Parameters
Valid
Fs32Hz
Qts0.30
Qes0.32
Qms5.6
Vas32.3L
Re5.6Ω
Le0.65mH
BL9.6Tm
Sd154cm²
Mms25g
Xmax6.0mm
SPL87dB
Power100W
Impedance8Ω
F Low50Hz
F High3000Hz
Voice Coil38mm
Pricing & availability
Price definitionsPrice movement
Best current price
£170.59
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.9kg
Diameter189.0mm
Overall Depth90.0mm
Cutout Diameter160.0mm
Bolt Circle Diameter178.5mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Volt
BM165.4
6.5"
Best current price
£170.59
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
47%
Similarity
69% cheaper£52.41
Dayton Audio
RS180P-8
7"
Lower price
Xmax6mm0%
Qts0.34+13%
BL7.2Tm-25%
Vas22L-32%
Qes0.44+38%
52%
Similarity
66% cheaper£58.80
Monacor
SPH-176
6.5"
Lower price
Xmax5.5mm-8%
Qts0.37+23%
BL7.7Tm-20%
Vas27L-16%
Qes0.44+38%
Image unavailable
49%
Similarity
7% cheaper£158.03
Wavecor
WF182BD13
7"
Lower price
Xmax5.5mm-8%
Qts0.26-13%
BL6.9Tm-28%
Vas20.8L-36%
Qes0.27-16%
64%
Similarity
4% cheaper£164.28
SB Acoustics
MR16P-8
6"
Lower price
Xmax6.2mm+3%
Qts0.30%
BL6.5Tm-32%
Vas44.3L+37%
Qes0.320%
57%
Similarity
4% cheaper£164.28
SB Acoustics
MR16PNW-8
6"
Lower price
Xmax6.2mm+3%
Qts0.32+7%
BL6.5Tm-32%
Vas44.8L+39%
Qes0.34+6%
69%
Similarity
£170.59
Volt
BM165.1
6.5"
Xmax6.3mm+5%
Qts0.24-20%
BL9.8Tm+2%
Vas40.8L+26%
Qes0.26-19%
61%
Similarity
5% more£178.95
Scanspeak
18W/8545K00
7"
Higher price
Xmax6.5mm+8%
Qts0.28-7%
BL8.2Tm-15%
Vas46.4L+44%
Qes0.3-6%
43%
Similarity
11% more£189.95
Scanspeak
18W/8542-10
7"
Higher price
Xmax6.5mm+8%
Qts0.35+17%
BL6.9Tm-28%
Vas26L-20%
Qes0.44+38%
66%
Similarity
46% more£249.00
SB Acoustics
MR16TX-8
6"
Higher price
Xmax5.7mm-5%
Qts0.31+3%
BL6.6Tm-31%
Vas38.9L+20%
Qes0.320%
76%
Similarity
75% more£298.57
Volt
CX160.1
6.5"
Higher price
Xmax6mm0%
Qts0.35+17%
BL9.5Tm-1%
Vas22.6L-30%
Qes0.36+12%
64%
Similarity
78% more£302.95
Accuton
C158-6-851
6"
Higher price
Xmax5mm-17%
Qts0.28-7%
BL8.7Tm-9%
Vas25.7L-20%
Qes0.29-9%
55%
Similarity
114% more£364.95
Accuton
C173-6-191
7"
Higher price
Xmax5mm-17%
Qts0.34+13%
BL8.8Tm-8%
Vas21.6L-33%
Qes0.37+16%
