Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespB&C 6PS38 8Ω
LF DriverMedia
Auto-advancing
Overview
LF Driver6PS series
B&C
B&C 6PS38
B&C 6PS38 is a 6.5" 8 ohm LF driver rated at 150W RMS. The validated T/S data includes Fs 75Hz, Qts 0.30, Vas 8L, Xmax 6mm, sensitivity 92.4dB, plus 79cm³ Vd and 242 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £86.00.
Size
6.5"
Impedance
8Ω
RMS Power
150W
Sensitivity
92.4dB
94.0dBmanufacturer; using T/S-derived value (1.6dB delta).
EBP
242
Vented alignment
Vd
79cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
free-air SPL240 ptsp3medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v2
free-air SPL
Frequency response
240 plotted pointsSource file SHA-256 23dcb921e4e9…Medium confidence11,030 selected pixels of 11,318 - Trace datasheet-response-trace-poc/v2

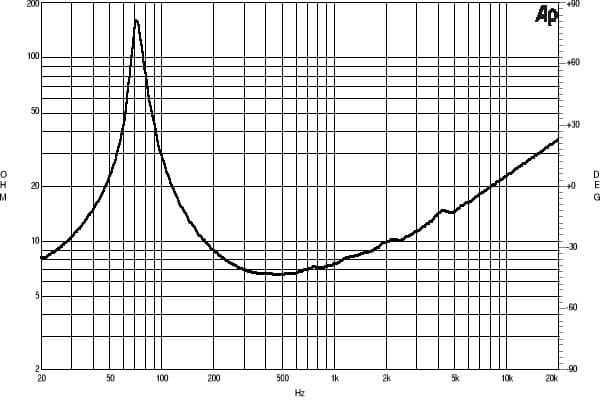

free-air impedance
Impedance response
240 plotted pointsSource file SHA-256 23dcb921e4e9…Medium confidence7,883 selected pixels of 8,702

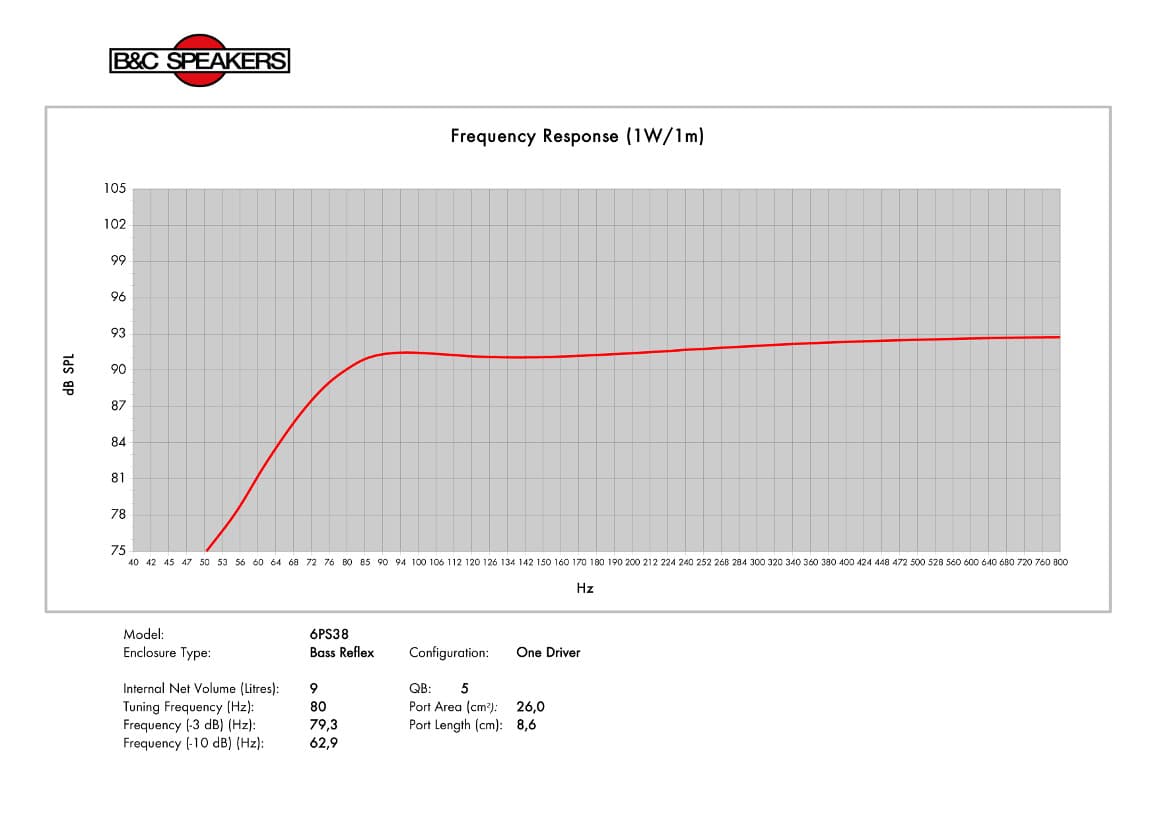

Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs75Hz
Qts0.30
Qes0.31
Qms11.7
Vas8.0L
Re5.4Ω
Le0.60mH
BL10.8Tm
Sd132cm²
Mms14g
Xmax6.0mm
SPL92dB
Power150W
Power Nominal150W
Impedance8Ω
Min Impedance6.6Ω
F Low75Hz
F High5000Hz
Voice Coil38mm
Flux Density1.40T
Pricing & availability
Price definitionsPrice movement
Other offers
2 vendorsjpleisure
Updated 7 Aug 2026· 8Ω
Source: ex VAT · 20%
£89.63
inc VAT
In stock
jpleisure
Updated 11 Sept 2026· 8Ω
Source: ex VAT · 20%
£89.63
inc VAT
In stock
Best current price
Updated 20 Apr 2026
thomann
£86.00
Avg £88.42£2.42 below avg (-2.7%)
inc VAT
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight2.4kg
Diameter187.0mm
Overall Depth82.0mm
Cutout Diameter145.0mm
Bolt Circle Diameter172.0mm
Additional Manufacturer Specs
Bl10.8 Tm
Fs75 Hz
Le0.6 mH
Re5.4 Ω
Sd132 cm² (20.46 in²)
Ebp242 Hz
Mms14 g
Qes0.31
Qms11.7
Qts0.3
Vas8 dm³ (0.28 ft³)
η01 %
ConeRCK06PS388
Xmax6 mm
Xvar7.5 mm
SpiderSingle
Cone ShapeRadial
Pole DesignStraight Pole
Winding Depth12 mm (0.49 in)
Surround ShapeRoll
Former MaterialGlass Fibre
Magnet MaterialFerrite
Nominal Diameter170 mm (6.5 in)
Winding MaterialAluminium
Magnetic Gap Depth6 mm (0.24 in)
Recommended Tuning80 Hz
Bolt Circle Diameter172 mm (6.77 in)
Recommended Enclosure9 dm³ (0.32 ft³)
Woofer Cone TreatmentWP Waterproof Front Side
Baffle Cutout Diameter145 mm (5.71 in)
Flange And Gasket Thickness9 mm (0.35 in)
Air Volume Occupied By Driver0.8 dm³ (0.03 ft³)
