LF DriverWAN061 series
Lavoce
Lavoce WAN061.80

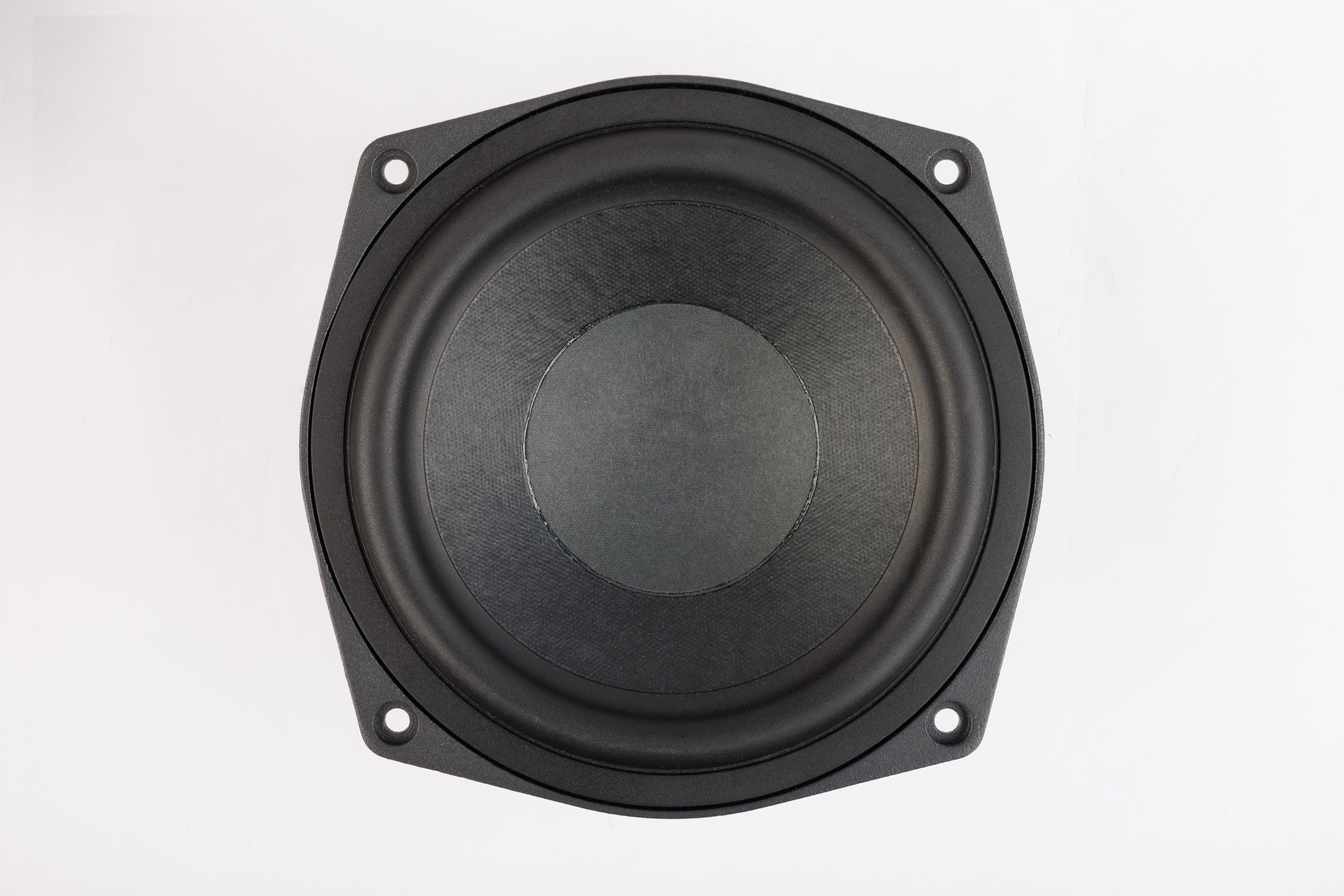

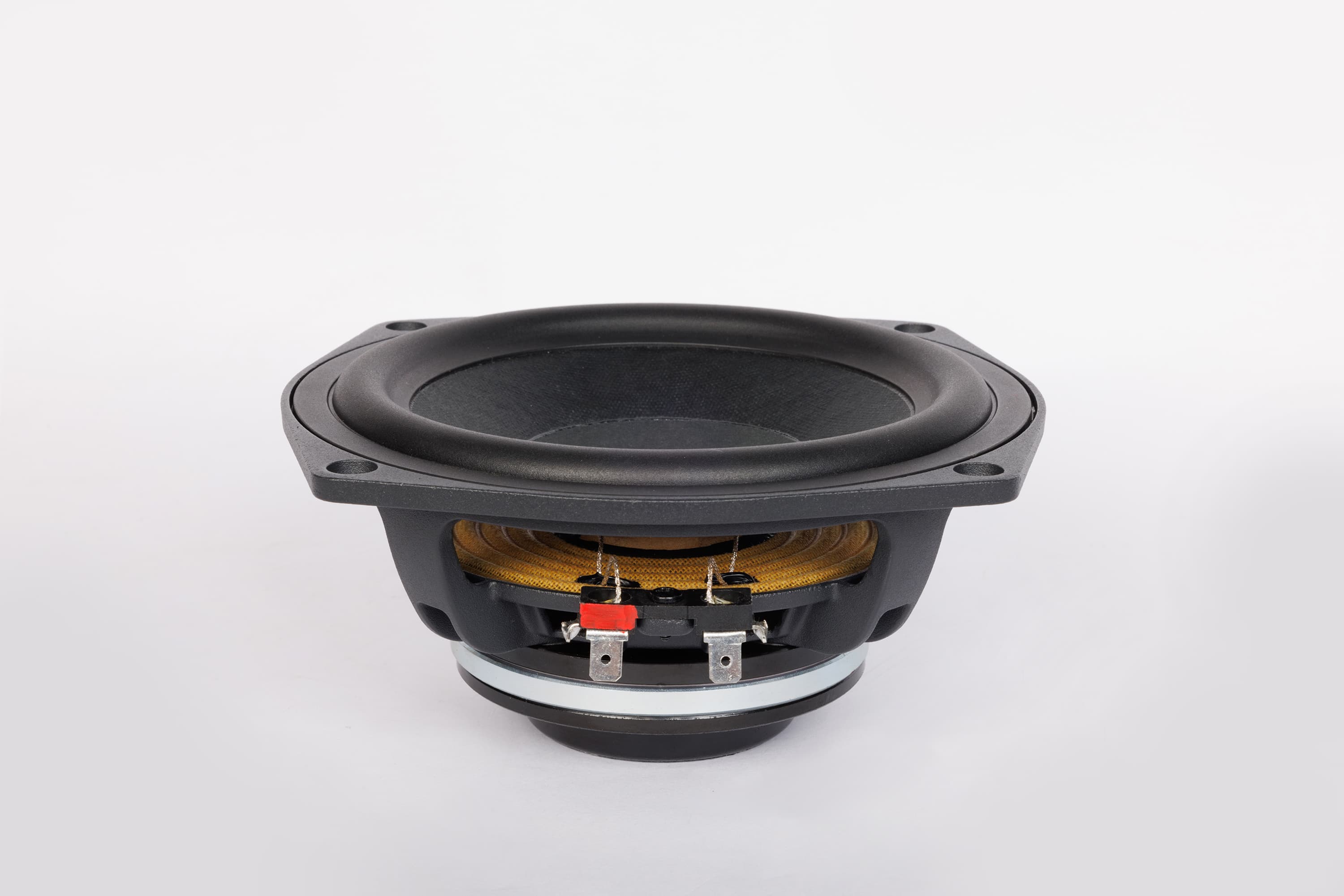

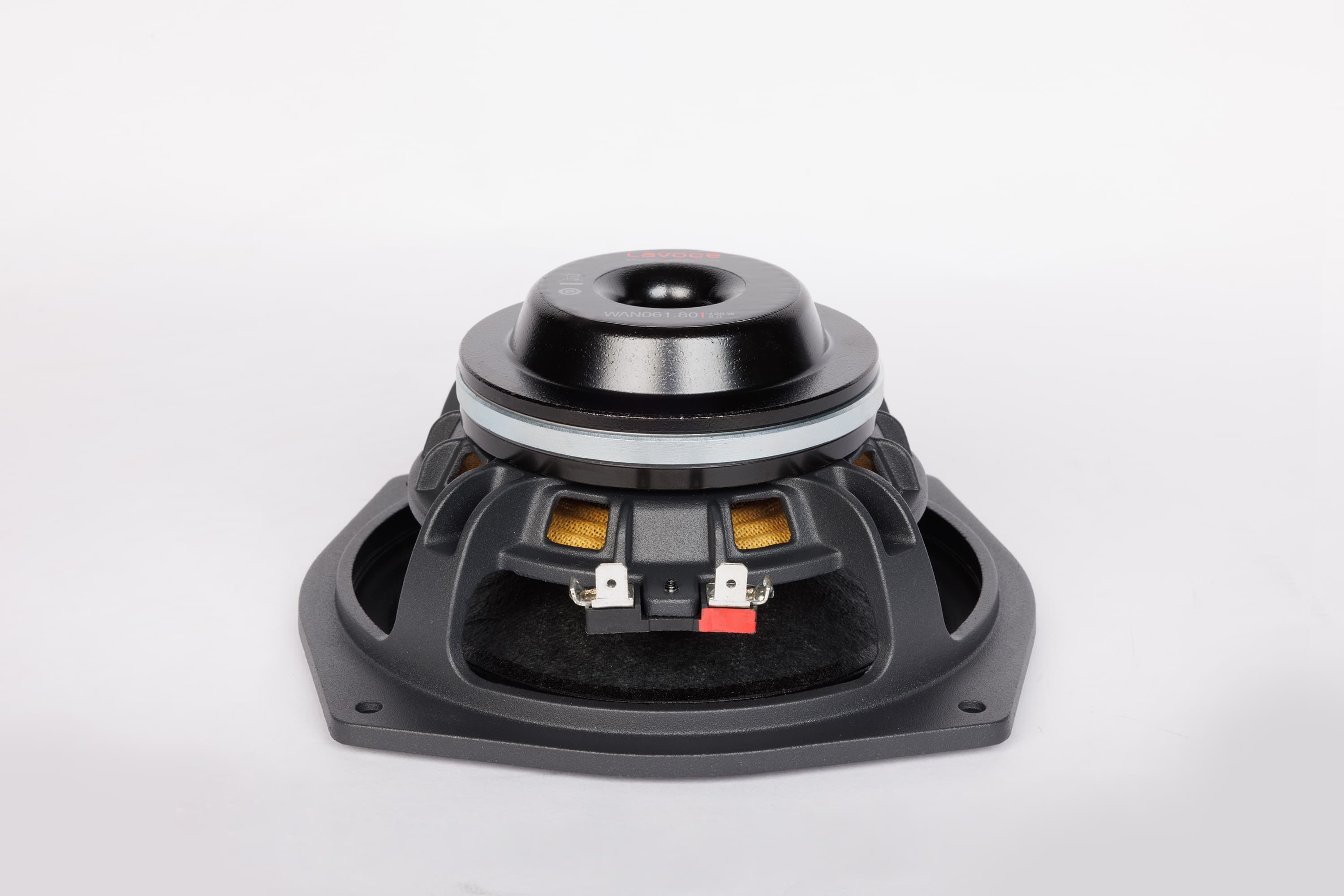

Lavoce WAN061.80 is a 6.5" 8 ohm LF driver rated at 200W RMS. The validated T/S data includes Fs 60Hz, Qts 0.27, Vas 11.2L, Xmax 5.2mm, sensitivity 91.2dB, plus 69cm³ Vd and 207 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £83.14.
Size
6.5"
Impedance
8Ω
RMS Power
200W
Sensitivity
91.2dB
93.0dBmanufacturer; using T/S-derived value (1.8dB delta).
EBP
207
Vented alignment
Vd
69cm³
T/S Parameters
Valid
Fs60Hz
Qts0.27
Qes0.29
Qms6.9
Vas11.2L
Re5.8Ω
Le0.28mH
BL10.9Tm
Sd132cm²
Mms16g
Xmax5.2mm
SPL91dB
Power200W
Impedance8Ω
Min Impedance6.3Ω
F Low60Hz
F High5500Hz
Voice Coil45mm
Pricing & availability
Price definitionsPrice movement
Best current price
£83.14
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

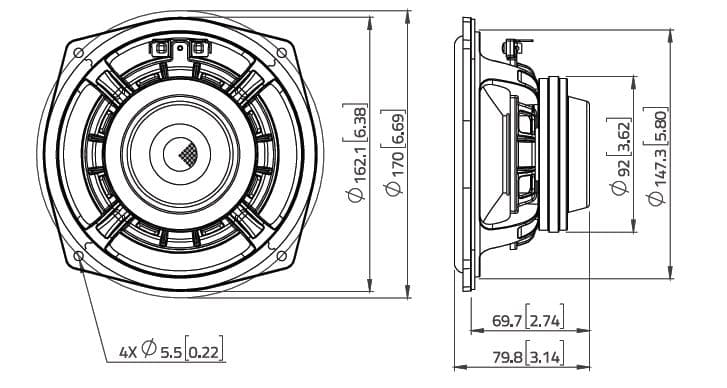

Dimensions & Physical
Weight1.3kg
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Lavoce
WAN061.80
6.5"
Best current price
£83.14
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
51%
Similarity
22% cheaper£64.95
Monacor
SPH-6M
6.5"
Lower price
Xmax4mm-23%
Qts0.3+11%
BL9.7Tm-11%
Vas17.6L+57%
Qes0.35+21%
54%
Similarity
19% cheaper£66.95
Scanspeak
15W/8434G00
6"
Lower price
Xmax4.2mm-19%
Qts0.25-7%
BL7.3Tm-33%
Vas12.8L+14%
Qes0.27-7%
65%
Similarity
19% cheaper£67.15
SB Audience
ROSSO-6MW150D
6"
Lower price
Xmax5.2mm+1%
Qts0.32+19%
BL11.6Tm+7%
Vas8.8L-21%
Qes0.33+14%
81%
Similarity
1% more£84.31
FaitalPRO
6RS140
6"
Higher price
Xmax5.6mm+8%
Qts0.270%
BL11Tm+1%
Vas9.3L-17%
Qes0.28-3%
53%
Similarity
3% more£85.36
FaitalPRO
6PR160
6"
Higher price
Xmax5mm-4%
Qts0.33+22%
BL11Tm+1%
Vas5.9L-47%
Qes0.35+21%
73%
Similarity
3% more£86.00
B&C
6PS38
6.5"
Higher price
Xmax6mm+15%
Qts0.3+11%
BL10.8Tm-1%
Vas8L-28%
Qes0.31+7%
61%
Similarity
4% more£86.62
B&C
6PS44
6.5"
Higher price
Xmax4.5mm-13%
Qts0.33+22%
BL11Tm+1%
Vas7L-37%
Qes0.34+17%
91%
Similarity
7% more£88.81
Beyma
6P200FE
6.5"
Higher price
Xmax5mm-4%
Qts0.26-4%
BL10.5Tm-3%
Vas11.1L-1%
Qes0.27-7%
89%
Similarity
33% more£110.59
Eighteen Sound
6ND430
6.5"
Higher price
Xmax5mm-4%
Qts0.270%
BL10Tm-8%
Vas12.6L+13%
Qes0.28-3%
54%
Similarity
1005% more£918.95
Accuton
C173-6-096
7"
Higher price
Xmax5mm-4%
Qts0.22-19%
BL11.4Tm+5%
Vas17L+52%
Qes0.24-17%
91%
Similarity
Beyma
106CX2NDN8
6.5"
Xmax5.5mm+6%
Qts0.270%
BL10.5Tm-3%
Vas9.4L-16%
Qes0.290%
88%
Similarity
Oberton
6NB150
6.5"
Xmax5.5mm+6%
Qts0.28+4%
BL10.8Tm-1%
Vas9.3L-17%
Qes0.3+2%
