6.5-inch LF driver · 6NB series · 38 mm voice coil · 150 W

Oberton 6NB150 8Ω

Name: Oberton 6NB150 8 Ohm
Brand: Oberton
SKU: 6NB150

8 Ω · 60–3000 Hz

No current price

View offers

Open in 00 Simulator

Fs: 62Hz
Xmax: 5.5mm
SPL: 91dB
Pe: 150W
BL: 10.8T·m
Vd: 70cm³
Qts: 0.28
Vas: 9L

See all 28 specs

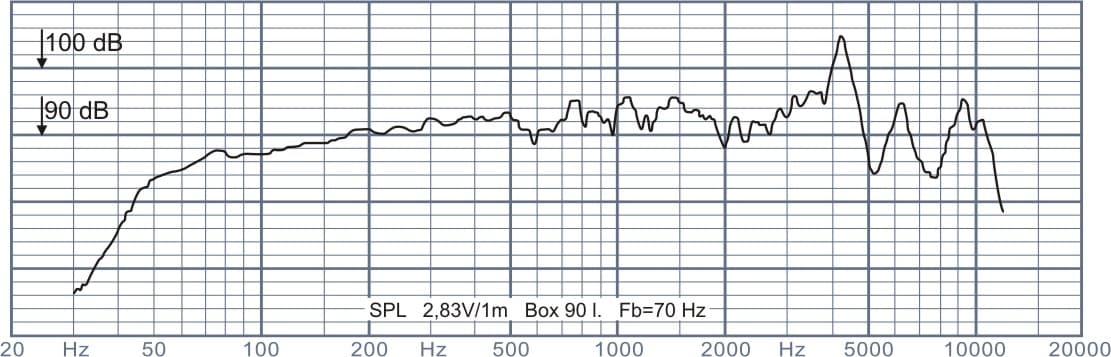

Published graphs

Specifications

Published by Oberton

Manufacturer page

Datasheet PDF

Oberton 6NB150 is a 6.5-inch 8 ohm LF driver rated at 150 W RMS. The validated T/S data includes Fs 62 Hz, Qts 0.28, Vas 9.3 L, Xmax 5.5 mm, sensitivity 90.8 dB, plus 70 cm³ Vd and 211 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.

The published T/S values agree with each other

Thiele/Small

Fs: 62Hz
Qts: 0.28
Qes: 0.30
Qms: 5.2
Vas: 9.3L
Re: 5.6Ω
Le: 0.65mH

Motor and cone

BL: 10.8T·m
Sd: 127cm²
Mms: 16g
Xmax: 5.5mm
Vd †: 70cm³
Voice coil: 38mm
Flux density: 1.37T

Power and response

Sensitivity †: 90.8dB
Manufacturer sensitivity: 200dB
Power: 150W
Impedance: 8Ω
Min. impedance: 6.3Ω
Range: 60–3000Hz
EBP †: 211 · Leans vented

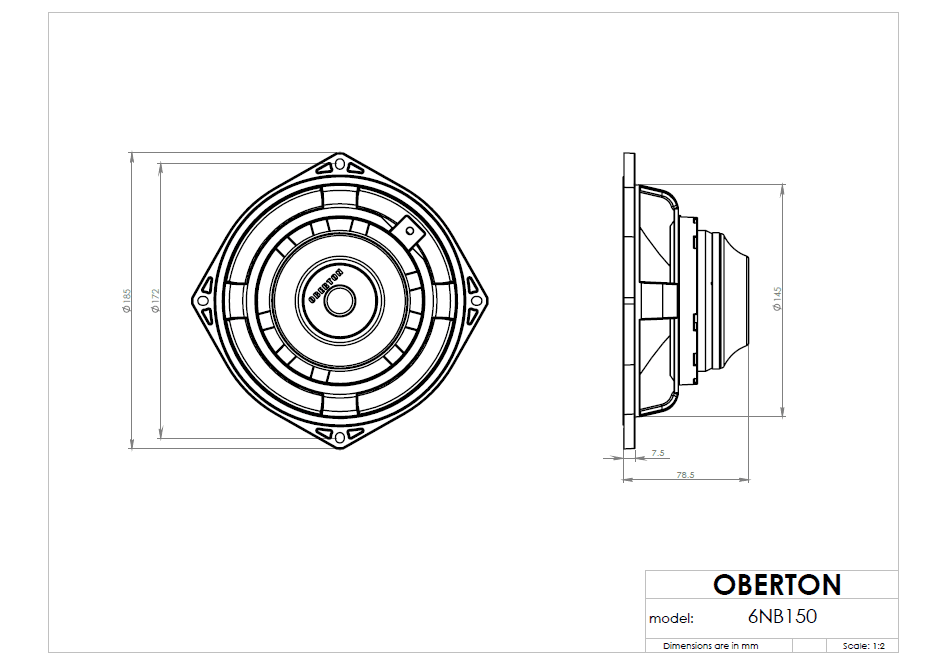

Size and mounting

Diameter: 185mm
Cutout: 145mm
Bolt circle: 172mm
Depth: 78.5mm
Weight: 1.3kg

Other published values

Cms: 0.41mm/N
Power Program: 300

Sensitivity shows 90.8 dB, calculated from the T/S values. Oberton publishes 200.0 dB, 109.2 dB apart.

† Calculated by bits from the published values

What this validation status means

Everything else Oberton lists

LF · Primary · 6.5″

BL: 10.8T·m
Fs: 62Hz
Le: 0.65mH
Re: 5.6Ω
Sd: 127cm²
Cms: 0.41mm/N
Mms: 16g
Qes: 0.30
Qms: 5.2
Qts: 0.28
SPL: 90.8dB
Vas: 9.3L
Xmax: 5.5mm
Power: 150W
Impedance: 8Ω
Flux density: 1.37T
Sensitivity: 200dB
Low limit: 60Hz
Power Program: 300
Calculated sensitivity †: 90.8dB
High limit: 3000Hz
Manufacturer sensitivity: 200dB
Min. impedance: 6.3Ω
Voice coil: 38mm
Weight: 1.3kg
Diameter: 185mm
Depth: 78.5mm
Cutout: 145mm
Bolt circle: 172mm
