LF DriverSB17 series
SB Acoustics
SB Acoustics SB17MFC35-4
SB Acoustics SB17MFC35-4 is a 6" 4 ohm LF driver rated at 60W RMS. The validated T/S data includes Fs 30Hz, Qts 0.28, Vas 45L, Xmax 11mm, sensitivity 88.1dB, plus 130cm³ Vd and 100 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £54.89.
Size
6"
Impedance
4Ω
RMS Power
60W
Sensitivity
88.1dB
90.0dBmanufacturer; using T/S-derived value (1.9dB delta).
EBP
100
Either alignment
Vd
130cm³

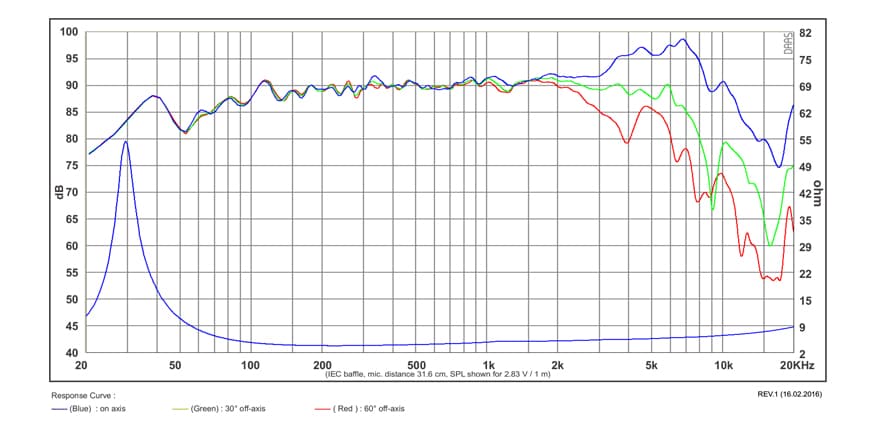

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
30 degrees240 ptsp1medium
60 degrees240 ptsp1medium
Curve provenanceInspect 3 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
30 degrees
Frequency response
240 plotted pointsMedium confidence1,473 selected pixels of 2,275 - Trace datasheet-response-trace-poc/v1
60 degrees
Frequency response
240 plotted pointsMedium confidence882 selected pixels of 2,375 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence2,441 selected pixels of 4,579
T/S Parameters
Valid
Fs30Hz
Qts0.28
Qes0.30
Qms5.2
Vas45.0L
Re3.1Ω
Le0.13mH
BL4.9Tm
Sd118cm²
Mms12g
Xmax11.0mm
SPL88dB
Power60W
Impedance4Ω
Voice Coil36mm
Flux Density1.00T
Pricing & availability
Price definitionsPrice movement
Best current price
£54.89
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.6kg
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
SB Acoustics
SB17MFC35-4
6"
Best current price
£54.89
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
55%
Similarity
53% cheaper£26.00
SB Acoustics
SB16PFCR25-4
6"
Lower price
Xmax9mm-18%
Qts0.34+21%
BL5Tm+2%
Vas32.7L-27%
Qes0.39+30%
61%
Similarity
11% cheaper£48.66
SB Acoustics
SB15MFC30-4
5"
Lower price
Xmax10mm-9%
Qts0.280%
BL4.8Tm-2%
Vas19.4L-57%
Qes0.30%
61%
Similarity
11% cheaper£49.12
SB Acoustics
SB15NRX2C30-4
5"
Lower price
Xmax10mm-9%
Qts0.280%
BL4.7Tm-4%
Vas20.5L-54%
Qes0.30%
31%
Similarity
11% cheaper£49.12
SB Acoustics
SB15NRX2C30-8
5"
Lower price
Xmax10mm-9%
Qts0.34+21%
BL5.8Tm+17%
Vas20L-56%
Qes0.37+23%
51%
Similarity
9% more£59.85
SB Acoustics
SB17NRX2L35-4
6"
Higher price
Xmax9.6mm-13%
Qts0.25-11%
BL6.5Tm+32%
Vas21.9L-51%
Qes0.26-13%
58%
Similarity
14% more£62.57
SB Acoustics
SB15NBAC30-4
5"
Higher price
Xmax10mm-9%
Qts0.29+4%
BL4.7Tm-4%
Vas21L-53%
Qes0.31+3%
95%
Similarity
20% more£65.93
SB Acoustics
SB17NBAC35-4
6"
Higher price
Xmax11mm0%
Qts0.29+4%
BL4.9Tm0%
Vas42.6L-5%
Qes0.31+3%
62%
Similarity
20% more£65.93
SB Acoustics
SB17NBAC35-8
6"
Higher price
Xmax11mm0%
Qts0.35+25%
BL5.9Tm+20%
Vas45L0%
Qes0.38+27%
47%
Similarity
39% more£76.56
SB Acoustics
SB15CAC30-4
5"
Higher price
Xmax10mm-9%
Qts0.31+11%
BL4.6Tm-6%
Vas20.2L-55%
Qes0.34+13%
88%
Similarity
50% more£82.13
SB Acoustics
SB17CAC35-4
6"
Higher price
Xmax11mm0%
Qts0.29+4%
BL5.3Tm+8%
Vas37.8L-16%
Qes0.31+3%
77%
Similarity
56% more£85.53
SB Acoustics
SB17CRC35-4
6"
Higher price
Xmax11mm0%
Qts0.32+14%
BL5Tm+2%
Vas35.5L-21%
Qes0.35+17%
63%
Similarity
56% more£85.53
SB Acoustics
SB17CRC35-8
6"
Higher price
Xmax11mm0%
Qts0.34+21%
BL6Tm+22%
Vas48L+7%
Qes0.37+23%
