LF DriverMW16 series
SB Acoustics
SB Acoustics MW16PNW-4
SB Acoustics MW16PNW-4 is a 6" 4 ohm LF driver rated at 60W RMS. The validated T/S data includes Fs 28Hz, Qts 0.27, Vas 51.8L, Xmax 12mm, sensitivity 88dB, plus 143cm³ Vd and 97 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £148.32.
Size
6"
Impedance
4Ω
RMS Power
60W
Sensitivity
88.0dB
91.0dBmanufacturer; using T/S-derived value (3.0dB delta).
EBP
97
Either alignment
Vd
143cm³

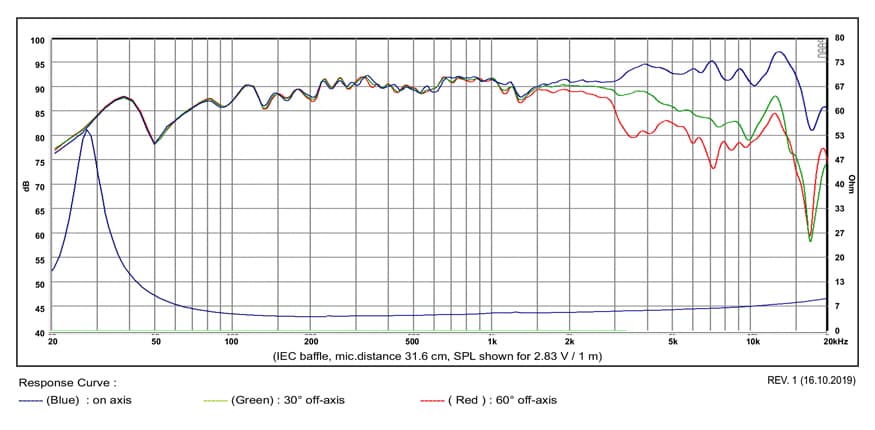

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
30 degrees240 ptsp1medium
60 degrees240 ptsp1medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
30 degrees
Frequency response
240 plotted pointsMedium confidence1,303 selected pixels of 4,991 - Trace datasheet-response-trace-poc/v1
60 degrees
Frequency response
240 plotted pointsMedium confidence993 selected pixels of 2,129
T/S Parameters
Valid
Fs28Hz
Qts0.27
Qes0.29
Qms4.5
Vas51.8L
Re3.4Ω
Le0.15mH
BL5.0Tm
Sd119cm²
Mms12g
Xmax12.0mm
SPL88dB
Power60W
Impedance4Ω
Voice Coil36mm
Flux Density1.17T
Pricing & availability
Price definitionsPrice movement
Best current price
£148.32
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.0kg
