LF DriverPTT series
Purifi

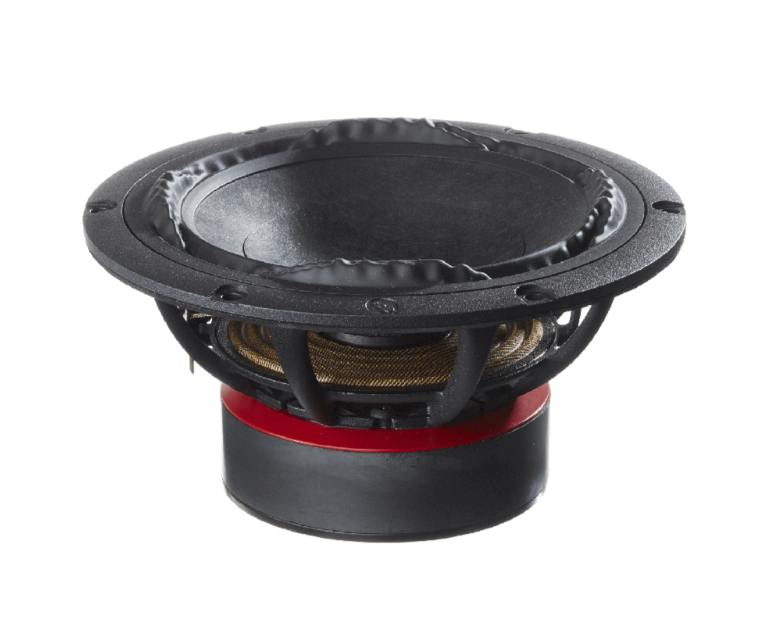

Purifi PTT6.5W04-NFA-06
Purifi PTT6.5W04-NFA-06 is a 6.5" 4 ohm LF driver rated at 80W RMS. The validated T/S data includes Fs 32Hz, Qts 0.26, Vas 28.3L, Xmax 5.9mm, sensitivity 87.2dB, plus 78cm³ Vd and 114 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
6.5"
Impedance
4Ω
RMS Power
80W
Sensitivity
87.2dB
90.4dBmanufacturer; using T/S-derived value (3.2dB delta).
EBP
114
Vented alignment
Vd
78cm³
T/S Parameters
Valid
Fs32Hz
Qts0.26
Qes0.28
Qms5.9
Vas28.3L
Re3.7Ω
Le0.33mH
BL7.6Tm
Sd133cm²
Mms21g
Xmax5.9mm
SPL87dB
Power80W
Impedance4Ω
Min Impedance4.1Ω
Voice Coil39mm
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.8kg
Diameter176.0mm
Cutout Diameter148.0mm
Bolt Circle Diameter166.0mm
