Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespMedia
Auto-advancing
Overview
LF DriverIlluminator series
Scanspeak

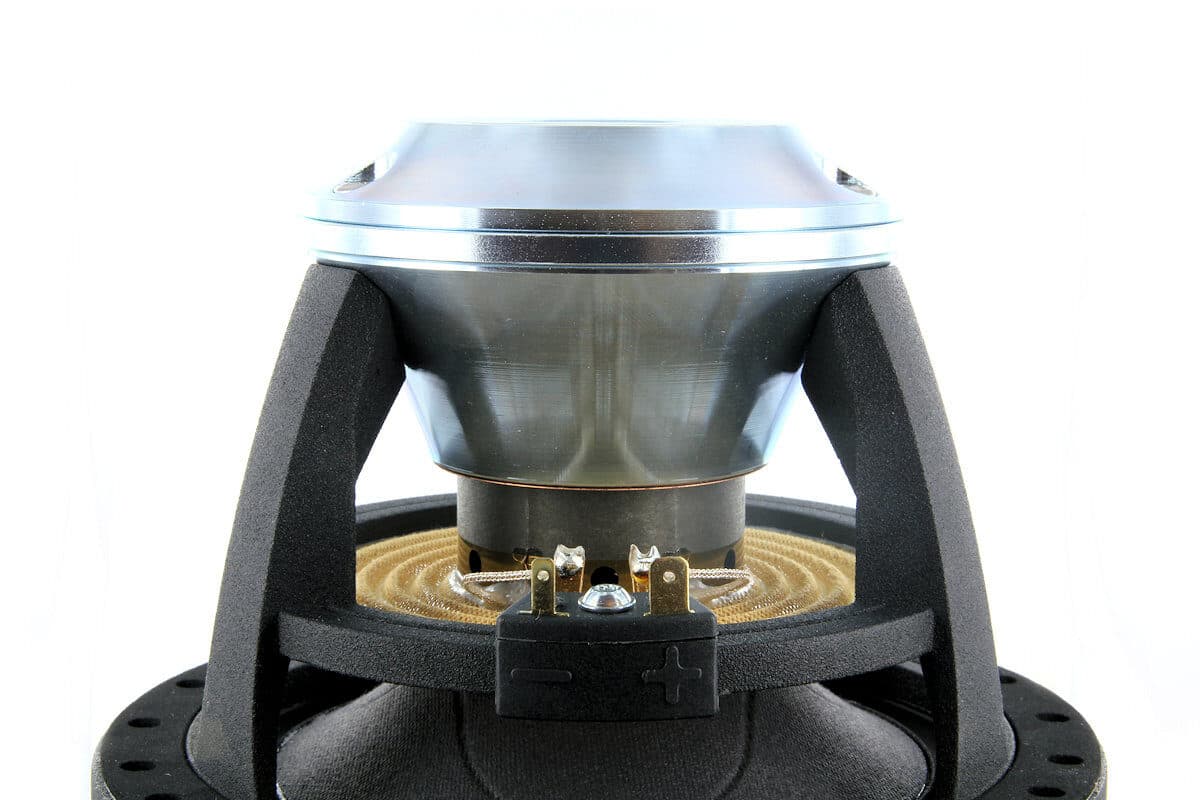

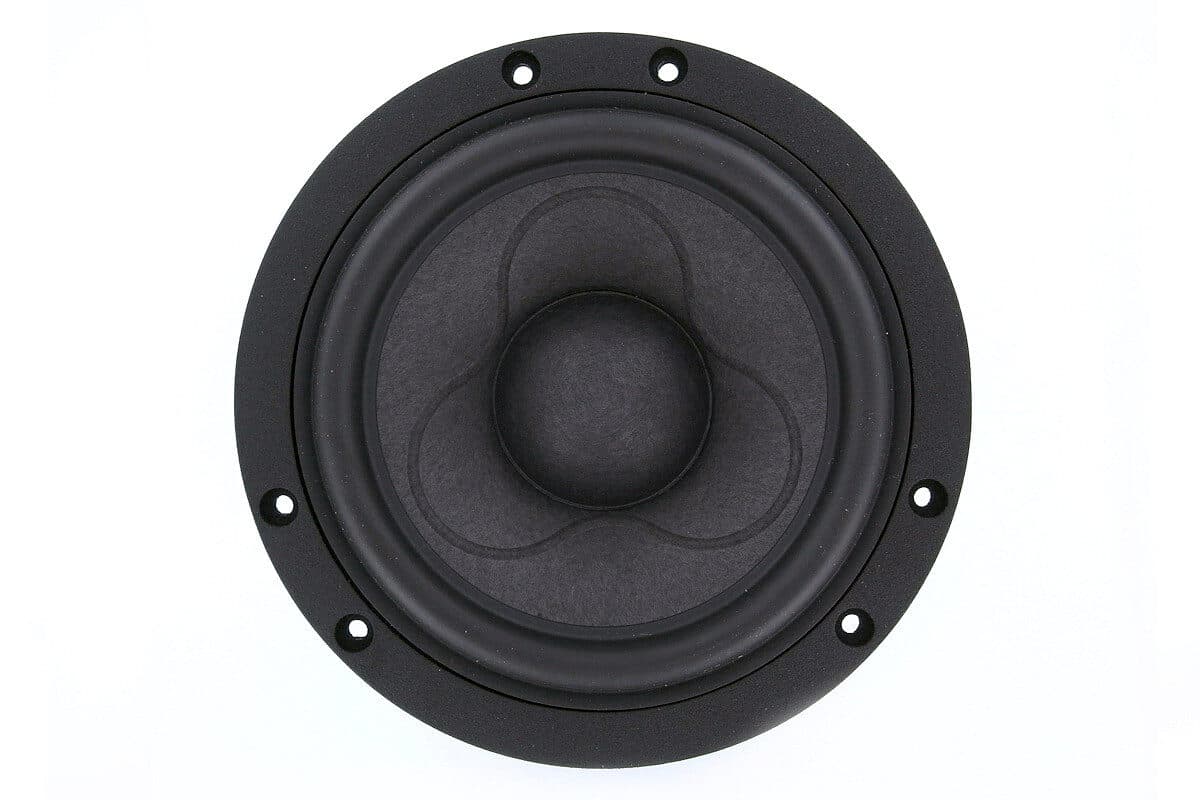

Scanspeak 15WU/8741T00
Scanspeak 15WU/8741T00 is a 6" 8 ohm LF driver rated at 80W RMS. The validated T/S data includes Fs 35Hz, Qts 0.26, Vas 19.9L, Xmax 9mm, sensitivity 86.9dB, plus 83cm³ Vd and 125 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £335.95.
Size
6"
Impedance
8Ω
RMS Power
80W
Sensitivity
86.9dB
83.5dBmanufacturer; using T/S-derived value (3.4dB delta).
EBP
125
Vented alignment
Vd
83cm³
T/S Parameters
Valid
Fs35Hz
Qts0.26
Qes0.28
Qms3.4
Vas19.9L
Re5.9Ω
Le0.41mH
BL7.5Tm
Sd92cm²
Mms12g
Xmax9.0mm
SPL87dB
Power80W
Impedance8Ω
Min Impedance7.9Ω
Voice Coil42mm
Pricing & availability
Price definitionsPrice movement
Best current price
£335.95
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Diameter150.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Scanspeak
15WU/8741T00
6"
Best current price
£335.95
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
45%
Similarity
93% cheaper£24.81
SB Acoustics
SB13PFCR25-4
5"
Lower price
Xmax9mm0%
Qts0.29+12%
BL5.3Tm-29%
Vas13.4L-33%
Qes0.33+18%
48%
Similarity
86% cheaper£47.61
CIARE
CW162
6.5"
Lower price
Xmax7mm-22%
Qts0.21-19%
BL7.4Tm-2%
Vas26L+31%
Qes0.23-18%
81%
Similarity
82% cheaper£59.85
SB Acoustics
SB17NRX2L35-4
6"
Lower price
Xmax9.6mm+7%
Qts0.25-4%
BL6.5Tm-14%
Vas21.9L+10%
Qes0.26-7%
48%
Similarity
69% cheaper£103.00
CIARE
HWG130
5"
Lower price
Xmax6.5mm-28%
Qts0.28+8%
BL7.8Tm+4%
Vas12.5L-37%
Qes0.3+7%
49%
Similarity
58% cheaper£139.69
SB Acoustics
MW13P-4
5"
Lower price
Xmax10mm+11%
Qts0.27+4%
BL4.9Tm-35%
Vas14.6L-27%
Qes0.29+4%
49%
Similarity
58% cheaper£139.69
SB Acoustics
MW13PNW-4
5"
Lower price
Xmax10mm+11%
Qts0.27+4%
BL4.9Tm-35%
Vas14.6L-27%
Qes0.29+4%
42%
Similarity
58% cheaper£139.69
SB Acoustics
MW13P-8
5"
Lower price
Xmax10mm+11%
Qts0.3+15%
BL5.7Tm-24%
Vas15L-25%
Qes0.33+18%
39%
Similarity
58% cheaper£139.69
SB Acoustics
MW13PNW-8
5"
Lower price
Xmax10mm+11%
Qts0.31+19%
BL5.7Tm-24%
Vas15L-25%
Qes0.33+18%
44%
Similarity
43% cheaper£192.95
Scanspeak
15W/4531G00
6"
Lower price
Xmax6.5mm-28%
Qts0.32+23%
BL5.7Tm-24%
Vas15.8L-21%
Qes0.34+21%
54%
Similarity
30% cheaper£233.59
SB Acoustics
MW13TX-4
5"
Lower price
Xmax10mm+11%
Qts0.260%
BL5Tm-33%
Vas16L-20%
Qes0.27-4%
35%
Similarity
30% cheaper£233.59
SB Acoustics
MW13TX-8
5"
Lower price
Xmax10mm+11%
Qts0.32+23%
BL5.7Tm-24%
Vas14.8L-26%
Qes0.34+21%
77%
Similarity
£335.95
Scanspeak
15WU/4741T00
6"
Xmax9mm0%
Qts0.23-12%
BL6Tm-20%
Vas20L+1%
Qes0.25-11%
