SEAS H1262-08 MCA15RCY 8Ω
8 Ω · 100–4000 Hz
£99.78
Falcon Acoustics · In stock · All 3 offers
- Fs
- 51Hz
- Xmax
- 1.7mm
- SPL
- 89dB
- Pe
- –
- BL
- 6.8T·m
- Vd
- 14cm³
- Qts
- 0.25
- Vas
- 12L

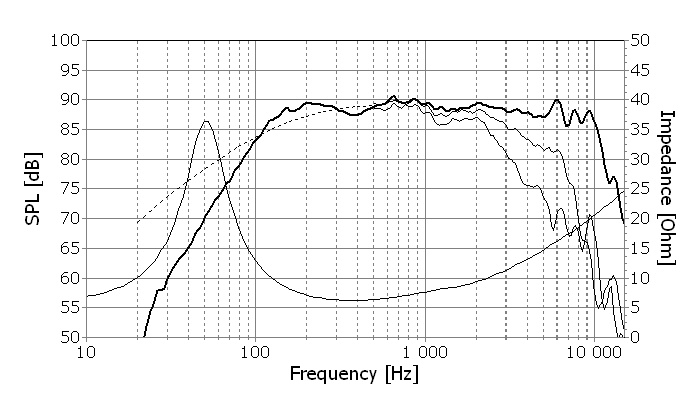

Published graphs
SEAS H1262-08 MCA15RCY is a 5-inch 8 ohm LF driver. The validated T/S data includes Fs 51 Hz, Qts 0.25, Vas 12 L, Xmax 1.7 mm, sensitivity 89.3 dB, plus 14 cm³ Vd and 170 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £89.46.
The published T/S values agree with each other

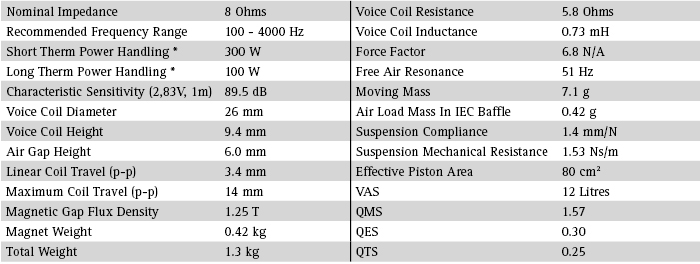

Thiele/Small
- Fs
- 51Hz
- Qts
- 0.25
- Qes
- 0.30
- Qms
- 1.6
- Vas
- 12L
- Re
- 5.8Ω
- Le
- 0.73mH
Motor and cone
- BL
- 6.8T·m
- Sd
- 80cm²
- Mms
- 7g
- Xmax
- 1.7mm
- Vd †
- 14cm³
- Voice coil
- 26mm
- Flux density
- 1.25T
Power and response
- Sensitivity †
- 89.3dB
- Manufacturer sensitivity
- 89.5dB
- Impedance
- 8Ω
- Range
- 100–4000Hz
- EBP †
- 170 · Leans vented
Size and mounting
- Weight
- 1.3kg
Other published values
- Cms
- 1.40mm/N
- Rms
- 1.53kg/s
- Xmech
- 7
† Calculated by bits from the published values
What this validation status means
Everything else SEAS lists
MF · Primary · 5″
- BL
- 6.8T·m
- Fs
- 51Hz
- Le
- 0.73mH
- Re
- 5.8Ω
- Sd
- 80cm²
- Cms
- 1.40mm/N
- Mms
- 7g
- Qes
- 0.30
- Qms
- 1.6
- Qts
- 0.25
- Rms
- 1.53kg/s
- SPL
- 89.3dB
- Vas
- 12L
- Xmax
- 1.7mm
- Xmech
- 7
- Impedance
- 8Ω
- Flux density
- 1.25T
- Sensitivity
- 89.5dB
- Low limit
- 100Hz
- Calculated sensitivity †
- 89.3dB
- High limit
- 4000Hz
- Manufacturer sensitivity
- 89.5dB
- Voice coil
- 26mm
- Weight
- 1.3kg
