LF DriverDiscovery series
Scanspeak

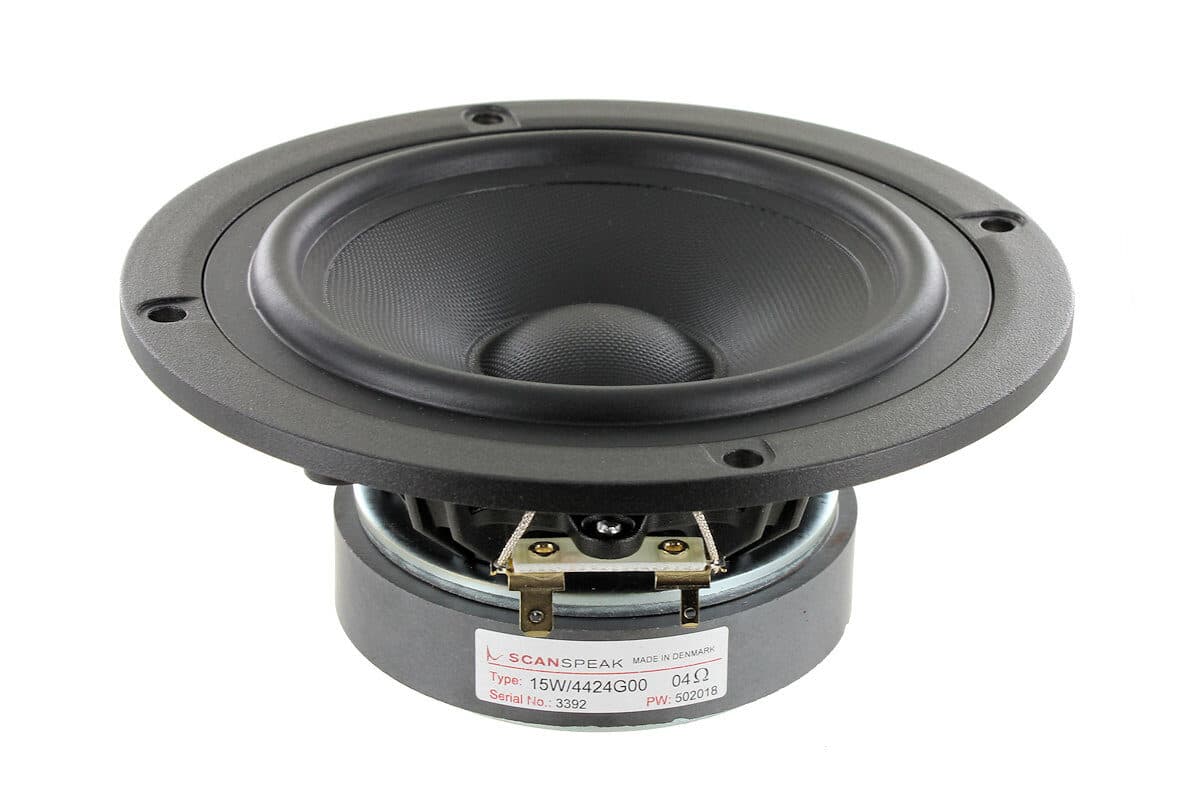

Scanspeak 15W/4424G00
Scanspeak 15W/4424G00 is a 6" 4 ohm LF driver rated at 60W RMS. The validated T/S data includes Fs 46Hz, Qts 0.24, Vas 13.8L, Xmax 2.8mm, sensitivity 89.2dB, plus 22cm³ Vd and 177 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £59.95.
Size
6"
Impedance
4Ω
RMS Power
60W
Sensitivity
89.2dB
90.5dBmanufacturer; using T/S-derived value (1.3dB delta).
EBP
177
Vented alignment
Vd
22cm³
T/S Parameters
Valid
Fs46Hz
Qts0.24
Qes0.26
Qms3.3
Vas13.8L
Re3.1Ω
Le0.37mH
BL5.2Tm
Sd80cm²
Xmax2.8mm
SPL89dB
Power60W
Impedance4Ω
Min Impedance4.2Ω
Voice Coil25mm
Pricing & availability
Price definitionsPrice movement
Best current price
£59.95
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Not enough T/S data
Missing Mms
BASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Not enough T/S data
Missing Mms
00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Diameter150.0mm
