Overview
LF DriverCeramic series
Accuton

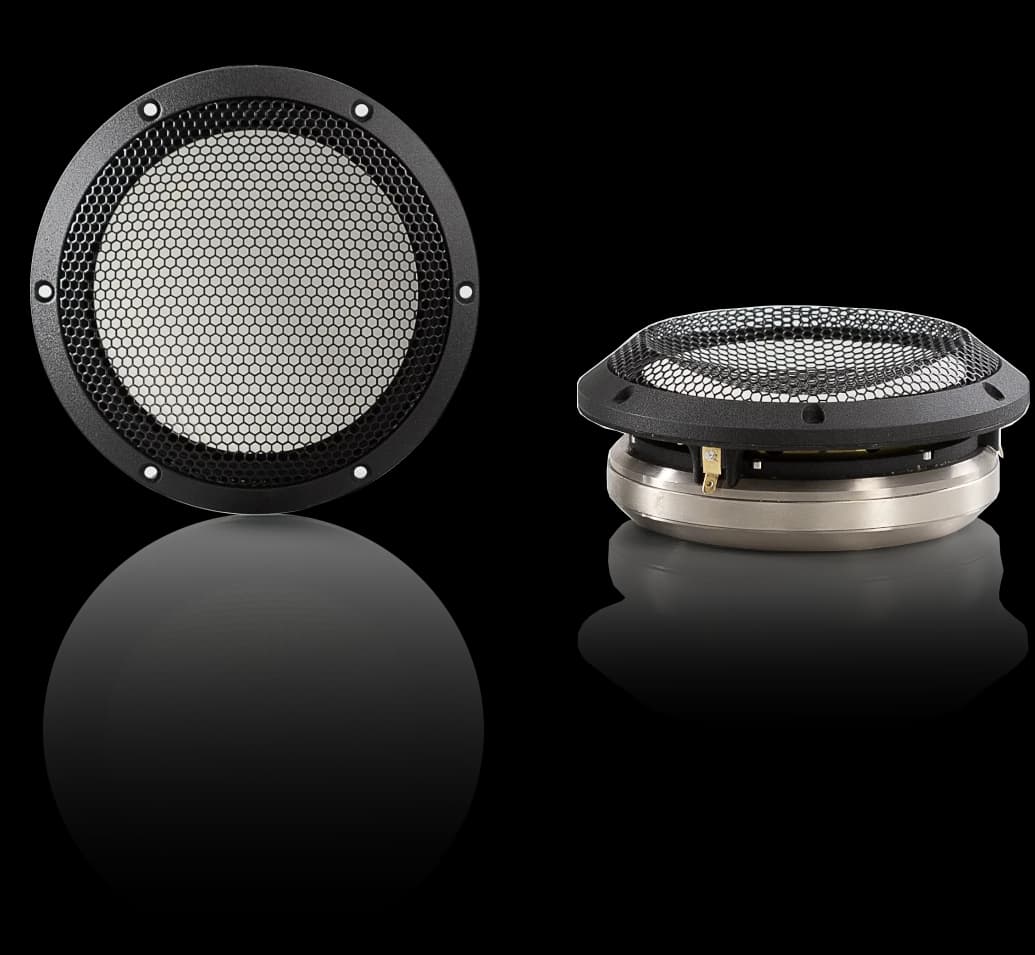

Accuton C168-6-990
Accuton C168-6-990 is a 6.5" 6 ohm LF driver rated at 120W RMS. The validated T/S data includes Fs 55Hz, Qts 0.21, Vas 10.3L, Xmax 3mm, sensitivity 90.9dB, plus 35cm³ Vd and 250 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £938.44.
Size
6.5"
Impedance
6Ω
RMS Power
120W
Sensitivity
90.9dB
93.0dBmanufacturer; using T/S-derived value (2.1dB delta).
EBP
250
Vented alignment
Vd
35cm³
T/S Parameters
Valid
Fs55Hz
Qts0.21
Qes0.22
Qms4.8
Vas10.3L
Re5.4Ω
Le0.06mH
BL11.7Tm
Sd118cm²
Mms16g
Xmax3.0mm
SPL91dB
Power120W
Impedance6Ω
F Low200Hz
F High6000Hz
Voice Coil114mm
Pricing & availability
Price definitionsPrice movement
Best current price
£938.44
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

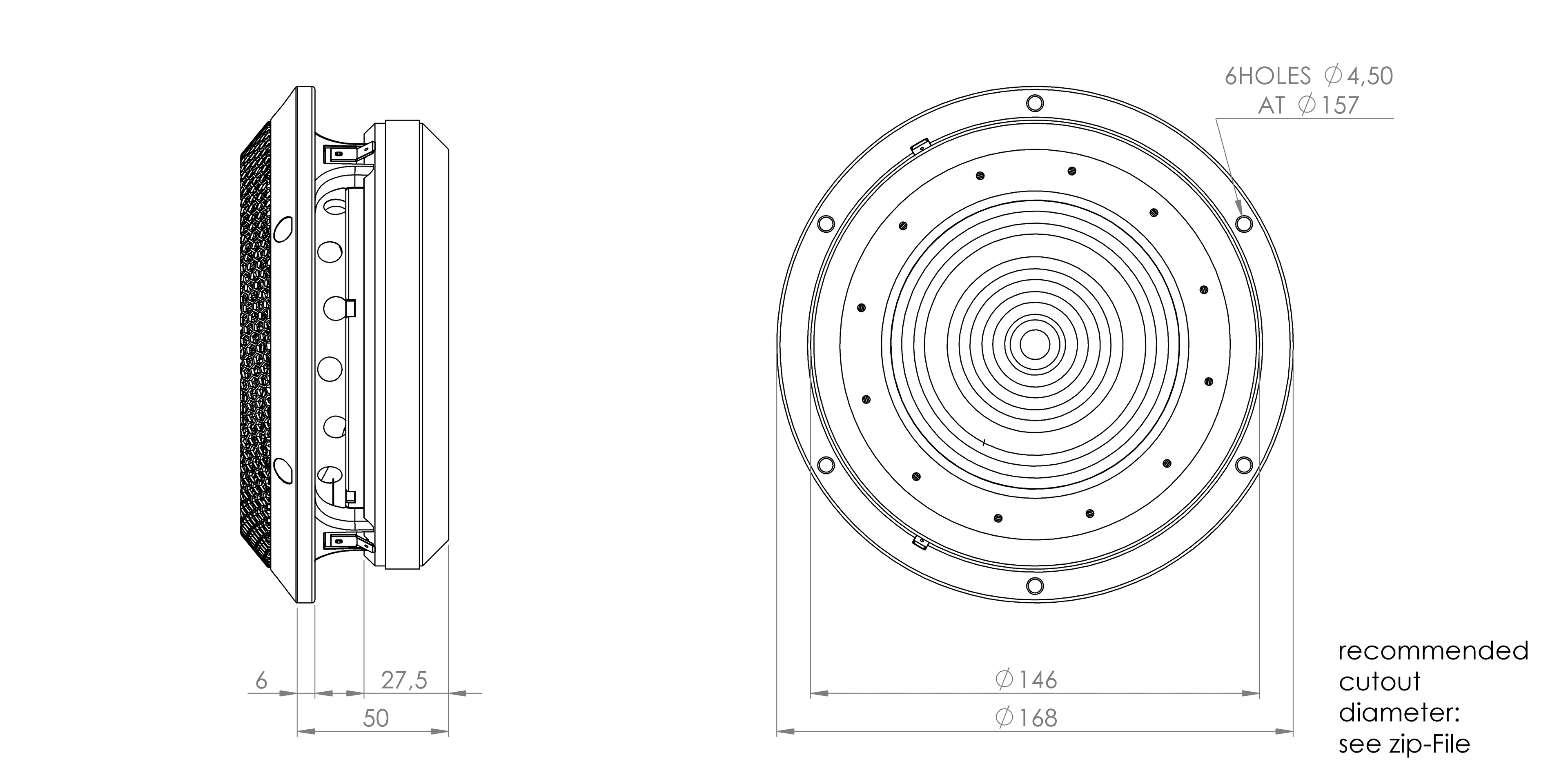

Dimensions & Physical
Diameter168.0mm
Overall Depth49.5mm
Cutout Diameter147.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Accuton
C168-6-990
6.5"
Best current price
£938.44
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
2 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
59%
Similarity
PRV Audio
MT6MR600CF-NDY-2
6.5"
Xmax3.3mm+8%
Qts0.24+14%
BL9.9Tm-15%
Vas4.4L-57%
Qes0.24+9%
54%
Similarity
PRV Audio
6MR600X-NDY-4
6"
Xmax3.5mm+17%
Qts0.19-10%
BL12.7Tm+9%
Vas5.2L-50%
Qes0.2-9%
